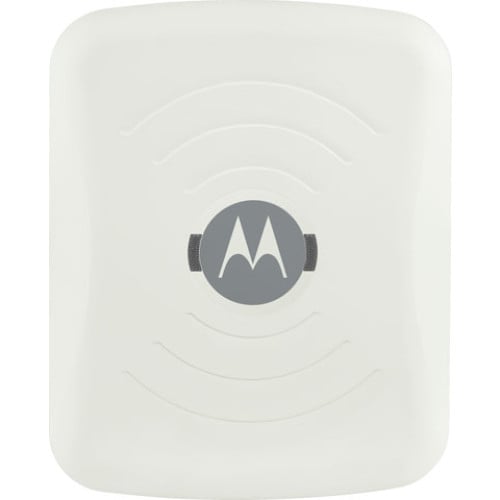

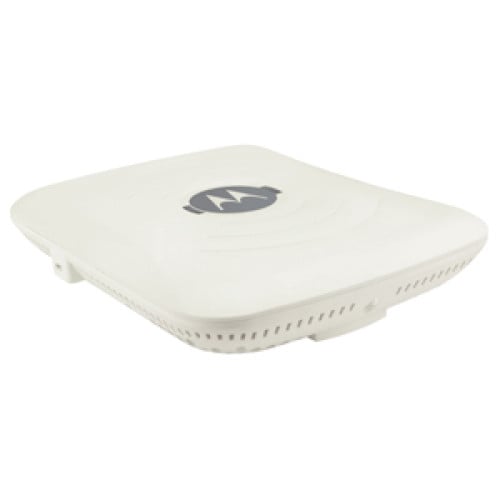

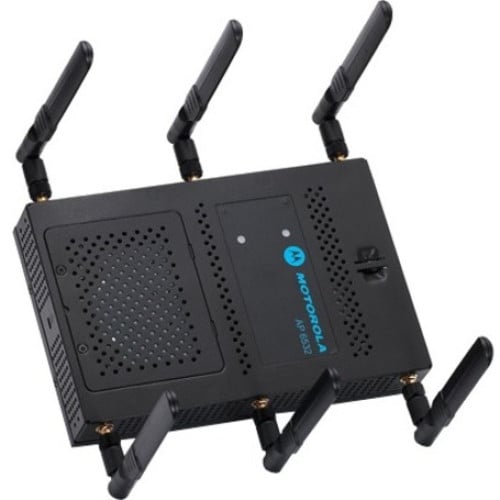

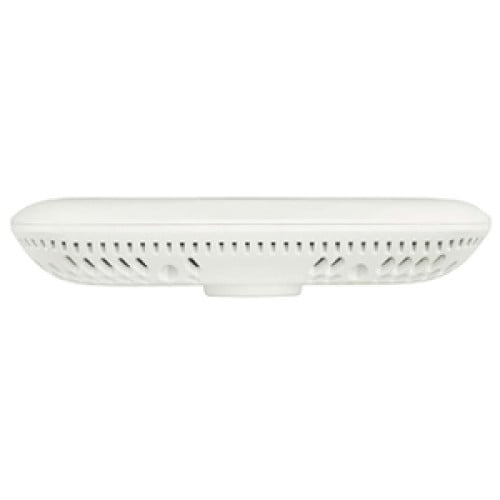

Motorola AP 6532 Access Point
Part #: AP-6532-66040-WR | SKU: MOT123671

The Motorola AP 6532 is a performance-focused 802.11n access point that offers higher throughput along with WiNG 5's direct forwarding, security, QoS services and site survivability. The second radio can be used for access or as a sensor for troubleshooting and security. With its WiNG 5 intelligence, the AP 6532 access point can serve as a virtual controller and coordinate the operation of up to 24 neighboring access points.

Motorola AP 6532 Access Point

Part Details: Zebra AP 6532 IEEE 802.11n 300 Mbit/s Wireless Access Point - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - PoE Ports - Wall Mountable, Ceiling Mountable

Additional Information

Manufacturer Motorola
Model Name AP 6532

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 5.15 GHz
  • Antenna Gain:
    • 2 dBi
    • 4.8 dBi
  • Total Number of Antennas: 6
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.47 GHz
  • UNII Maximum Frequency: 5.85 GHz
  • Antenna Connector: RP-SMA Connector
  • Features:
    • MIMO Technology
    • Quality of Service (QoS)
  • Wireless Security:
    • AAA
    • RADIUS
    • Location-based access control
    • VPN
    • Stateful packet filtering firewall

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP 6532
  • Product Name: AP 6532 Wireless Access Point

Physical Characteristics

  • Height: 1.5"
  • Width: 5.6"
  • Depth: 8.5"
  • Form Factor:
    • Wall Mountable
    • Ceiling Mountable
  • Weight (Approximate): 2.50 lb

Interfaces/Ports

  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • 10Gigabit Ethernet Port: No
  • Number of Network (RJ-45) Ports: 1
  • PoE (RJ-45) Port: Yes
  • USB: No
  • VGA: No
  • Serial Port: No
  • Network (RJ-11): No
  • Powerline: No
  • Management Port: No

Power Description

  • Input Voltage: 57 V DC
  • Power Source: AC Adapter

Management & Protocols

  • Management: VLAN
Extended Details

Recommended Warranties for Model: Motorola AP 6532 Access Point

  • Motorola AP 6532 Service Contract
    Part #: SCS-AP6532-10 | SKU: 369904

    Service Contract - 1 year, Zebra OneCare Service Center Select. Includes Comprehensive Coverage. Check datasheet for regional availability.
  • Motorola AP 6532 Service Contract
    Part #: SSS-AP6532-30 | SKU: 370047

    Service Contract - 3 year, Zebra OneCare Select. Includes Comprehensive Coverage. Check datasheet for regional availability.
  • Motorola AP 6532 Service Contract
    Part #: AP-6532-66030-EU | SKU: 223492

    AP 6532, Access Point (802.11n INDEP 2-Radio Internal Antenna, Europe Only SKU)
