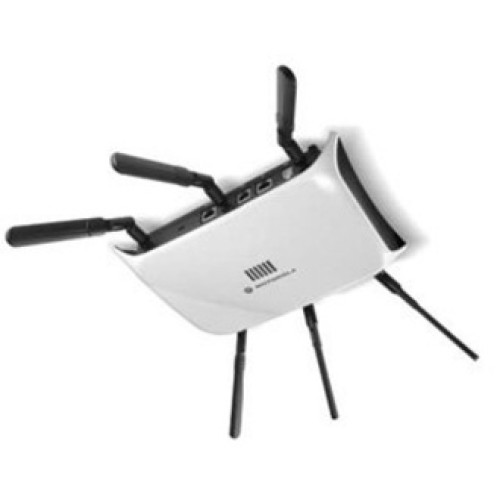

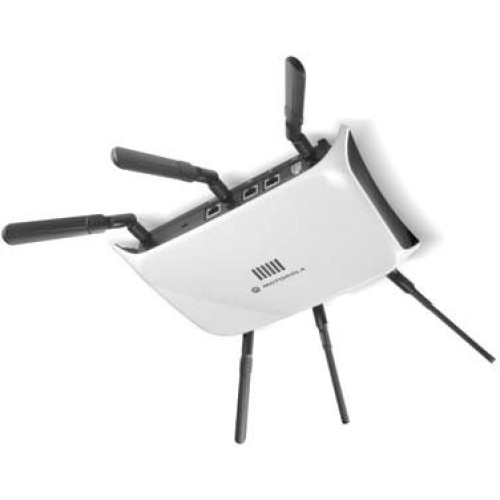

Photo of Motorola AP-7131-60020-WR Motorola logo

Motorola AP7131

Single Radio 802.11n Access Point

Access Point

Free Shipping

Ships in 24-48 hours


Motorola AP7131 Access Point

As a standalone access point, AP7131 provides small and medium-sized businesses with a consolidated wired and wireless networking infrastructure, all in single device. The integrated router, gateway, firewall, DHCP and AAA Radius servers, VPN, hot-spot gateway, Power-over-Ethernet (PoE) simplify and reduce the costs associated with networking by eliminating the need to purchase and manage multiple pieces of equipment.

Full specifications (PDF)

Manufacturer part number: AP-7131-60020-WR

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 5.15 GHz
  • Total Number of Antennas: 6
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.47 GHz
  • UNII Maximum Frequency: 5.73 GHz
  • Antenna Connector: RP-SMA Connector
  • Wireless Security:
    • WPA
    • WPA2
    • 3 DES IPSec encryption
    • ACLS
    • TLS
    • TTLS
    • PEAP
    • AAA

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP-7131
  • Product Name: AP-7131 Single Radio Enterprise Access Point

Physical Characteristics

  • Height: 1.1"
  • Depth: 5.5"
  • Form Factor: Wall Mountable
  • Weight (Approximate): 2.22 lb


  • Gigabit Ethernet Port: Yes
  • Number of Network (RJ-45) Ports: 2
  • PoE (RJ-45) Port: Yes


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS

Management & Protocols

  • Management: DHCP server

Power Description

  • Input Voltage: 48 V DC
