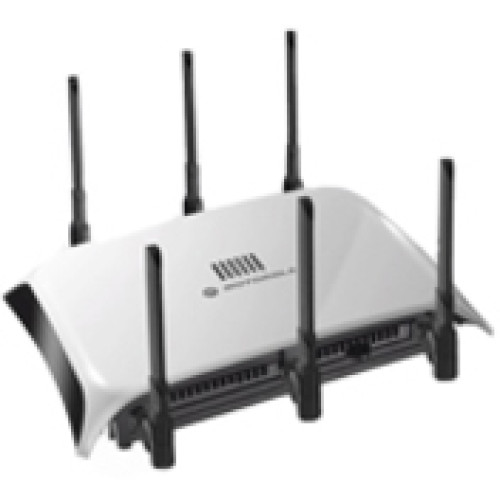

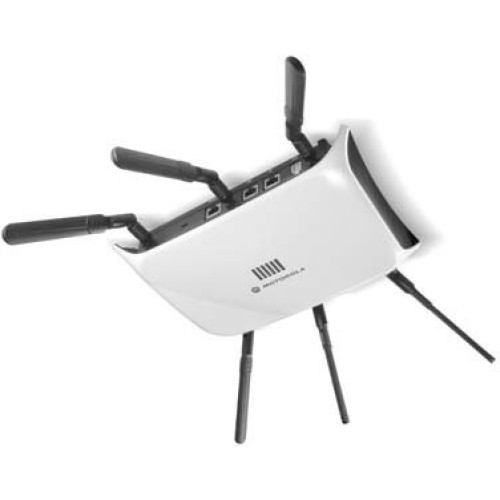

Motorola AP 7131 Access Point
Part #: AP-7131-66040-D-WR | SKU: MOT67802

As a standalone access point, AP-7131 provides small and medium-sized businesses with a consolidated wired and wireless networking infrastructure, all in single device. The integrated router, gateway, firewall, DHCP and AAA Radius servers, VPN, hot-spot gateway, Power-over-Ethernet (PoE) simplify and reduce the costs associated with networking by eliminating the need to purchase and manage multiple pieces of equipment.

Motorola AP 7131 Access Point

Part Details: Zebra AP-7131 Wireless Access Point - IEEE 802.11n (draft) 300Mbps - 2 x 10/100/1000Base-T

Additional Information

Manufacturer Motorola
Model Name AP 7131

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 5.15 GHz
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.47 GHz
  • UNII Maximum Frequency: 5.73 GHz
  • Antenna Connector: RP-SMA Connector
  • Wireless Security:
    • WPA
    • WPA2
    • IEEE 802.11i

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP-7131
  • Product Name: AP-7131 Wireless Access Point

Physical Characteristics

  • Height: 1.1"
  • Depth: 5.5"
  • Form Factor:
    • Ceiling Mountable
    • Wall Mountable
  • Weight (Approximate): 22 lb

Interfaces/Ports

  • Gigabit Ethernet Port: Yes
  • PoE (RJ-45) Port: Yes
  • Management Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Additional Information:
    • UNII Band Frequencies:
    • 5.150 to 5.250 GHz
    • 5.150 to 5.350 GHz
    • 5.470 to 5.725 GHz

Management & Protocols

  • Management:
    • CLI
    • DHCP
    • QoS
    • SNMP v3
    • Java web-based GUI

Power Description

  • Power Source: AC Adapter
Extended Details

Recommended Accessories for Model: Motorola AP 7131 Access Point

  • Zebra AP 7131 Wireless Antenna
    Part #: ML-2452-PTA3M3-036 | SKU: 54137

    Ceiling Mount, Dual Band, MIMO Patch: 3 x RPSMA Male
    MSRP: $294.00 Price: $250.57
  • Zebra AP 7131 Wireless Antenna
    Part #: ML-2452-HPA5-036 | SKU: 80690

    Dipole, RP-SMA-Male
    MSRP: $249.00 Price: $214.36
  • Motorola AP 7131 Wireless Antenna
    Part #: ML-2452-PTA2M3X3-1 | SKU: 54136

    AP-7131 MIMO Facade: 1 IN, 6 x RPSMA, Snap-on Façade
  • Motorola AP 7131 Accessory
    Part #: AP-PSBIAS-1P3-AFR | SKU: 37985

    Single Port Poe Injector High Power Gigabit
  • Motorola AP 7131 Accessory
    Part #: 50-14000-247R | SKU: 61857

    AP-7131 Power supply 100 250 Vac/ 48.0vdc/0.75a
