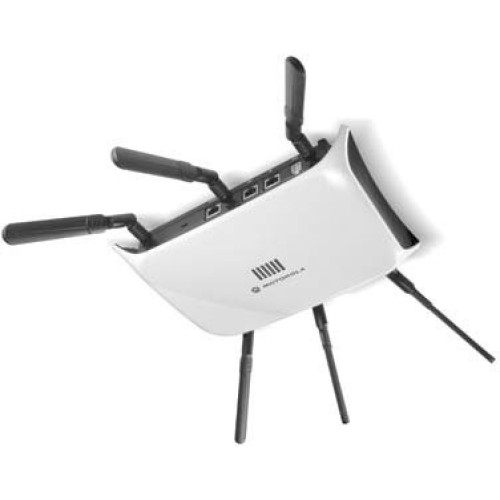

Photo of Motorola AP-7131N-66E40-US Motorola logo

Motorola AP7131

Wireless Access Point/Bridge

Access Point

Free Shipping

Ships in 24-48 hours

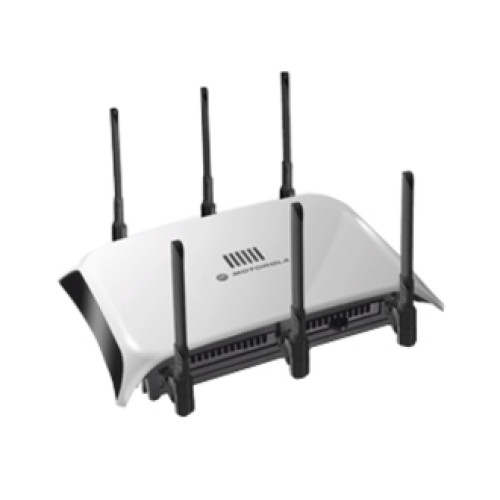

Motorola AP7131 Access Point

The Motorola AP7131 802.11a/b/g/n access point delivers the throughput, coverage and resiliency required to build an all wireless enterprise. The tri-radio modular design provides support for high-speed wireless voice and data services, mesh networking and non-data applications such as IPS. The fully DFS compliant 802.11n Draft 2.0 AP7131 offers speeds up to 600 Mbps per Access Point. six times the bandwidth of an 802.11a/g Access Point. The Adaptive AP architecture allows the device to offer two modes of operation, without any firmware change either as a standalone access point or as a wireless switch adopted access point for centralized management.

Full specifications (PDF)

Manufacturer part number: AP-7131N-66E40-US

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 5.15 GHz
  • Total Number of Antennas: 6
  • Wireless Transmission Speed: 600 Mbps
  • ISM Maximum Frequency: 2.46 GHz
  • UNII Maximum Frequency: 5.85 GHz
  • Antenna Connector: RP-SMA Connector
  • Wireless Security:
    • WPA2
    • WPA
    • IEEE 802.11i
    • IEEE 802.1x

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP-7131
  • Product Name: AP-7131 Adaptive Services Wireless Access Point

Physical Characteristics

  • Height: 1.5"
  • Depth: 5.5"
  • Form Factor:
    • Ceiling Mountable
    • Wall Mountable
  • Weight (Approximate): 2.67 lb


  • Gigabit Ethernet Port: Yes
  • Number of Network (RJ-45) Ports: 1
  • PoE (RJ-45) Port: Yes
  • Management Port: Yes


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • AP-7131 Adaptive Services Wireless Access Point
    • Quick Installation Guide
    • AP-7131 Adaptive Services Wireless Access Point
    • Quick Installation Guide

Management & Protocols

  • Management:
    • SNMP v3
    • CLI
    • Web-based GUI
    • DHCP
    • IEEE 802.1p QoS
    • IEEE 802.1q VLAN

Power Description

  • Input Voltage: 48 V DC
