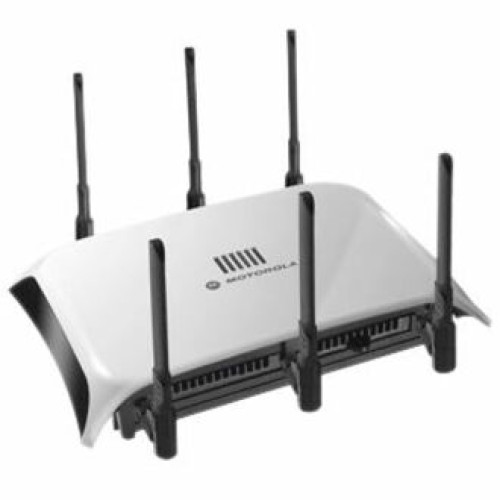

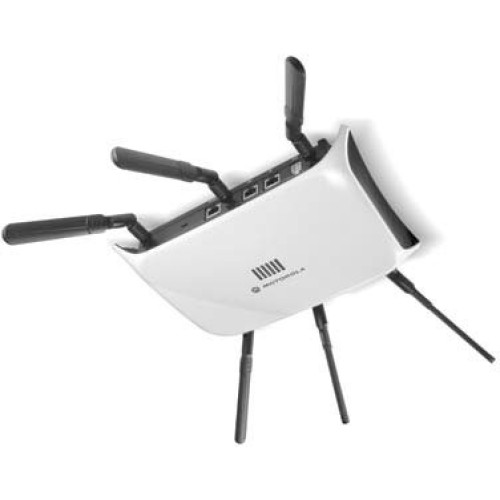

AP-7131N-66E40-WR - Motorola AP7131 Access Point

As a standalone access point, AP7131 provides small and medium-sized businesses with a consolidated wired and wireless networking infrastructure, all in single device. The integrated router, gateway, firewall, DHCP and AAA Radius servers, VPN, hot-spot gateway, Power-over-Ethernet (PoE) simplify and reduce the costs associated with networking by eliminating the need to purchase and manage multiple pieces of equipment.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
AP-7131N-66E40-WR AP7131, N Wireless Access Point (2-Radio AP With Expcard Slot)
Information:   |  Specifications  |  Motorola's AP7131 page  |
Accessories:   |  Accessories/Options  |  Motorola AP7131 service contract  |

AP-7131N-66E40-WR Details

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 5.15 GHz
  • Total Number of Antennas: 3
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.46 GHz
  • UNII Maximum Frequency: 5.85 GHz
  • Antenna Connector: RP-SMA Connector
  • Memory Card Supported: ExpressCard
  • Features:
    • Quality of Service (QoS)
    • MIMO Technology
  • Wireless Security:
    • WPA
    • WPA2
    • IEEE 802.11i
    • IEEE 802.1x
    • Intrusion Prevention System
    • AAA
    • IPSec
    • SPI
    • IP Filtering
    • NAT
    • VPN

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP-7131N
  • Product Name: AP-7131N Wireless Access Point

Physical Characteristics

  • Height: 1.5"
  • Width: 8"
  • Depth: 5.5"
  • Form Factor:
    • Wall Mountable
    • Ceiling Mountable
  • Weight (Approximate): 2.67 lb

Interfaces/Ports

  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • 10Gigabit Ethernet Port: No
  • Number of Network (RJ-45) Ports: 2
  • PoE (RJ-45) Port: Yes
  • USB: No
  • VGA: No
  • Serial Port: No
  • Network (RJ-11): No
  • Powerline: No
  • Management Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • IEEE 802.11a
    • IEEE 802.11b
    • IEEE 802.11g
    • IEEE 802.11n
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3ab
    • IEEE 802.1Q
    • IEEE 802.3af
    • IEEE 802.11i
    • IEEE 802.1x
    • UL
    • cUL
    • IEC
    • FCC
    • TELEC

Management & Protocols

  • Management:
    • CLI
    • Web Based Management
    • DHCP
    • SNMP v3
    • IEEE 802.1Q VLAN

Power Description

  • Input Voltage: 57 V AC
  • Power Source: AC Adapter

I/O Expansions

  • Expansion Slots: 1 x ExpressCard
Part # Description Availability Price Order
SSS-AP7131-30 Symbol Service Contract - 3 year, Zebra OneCare Select. Includes Comprehensive coverage. Check datasheet for regional availability.
Ships Free in 3-5 Days
$198.48
Retail $257.40
Save 22%

The Motorola AP-7131N-66E40-WR is also known as SYM-AP7131N66E40WR or AP7131N66E40WR .
