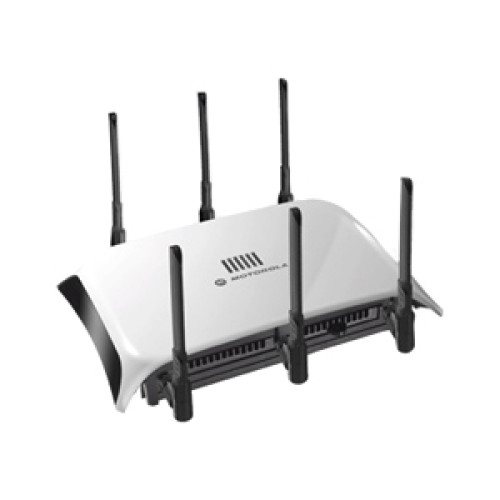

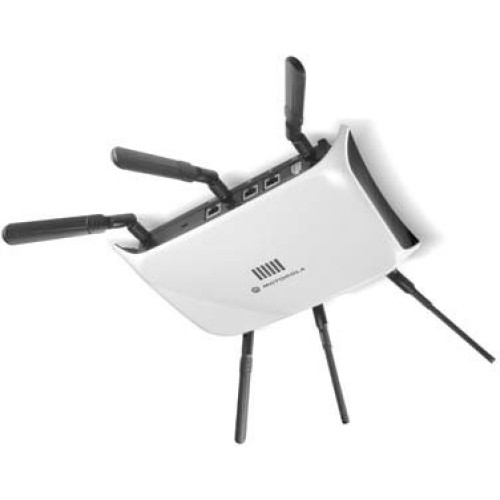

AP-7131N-66S70-US - Motorola AP7131 Access Point

As a standalone access point, AP7131 provides small and medium-sized businesses with a consolidated wired and wireless networking infrastructure, all in single device. The integrated router, gateway, firewall, DHCP and AAA Radius servers, VPN, hot-spot gateway, Power-over-Ethernet (PoE) simplify and reduce the costs associated with networking by eliminating the need to purchase and manage multiple pieces of equipment.

Part # Description Availability Price Order
AP-7131N-66S70-US AP7131, N 3-Radio AP Ships Free Today $1,120.99
Retail $1649
Save 32%
Information:   |  Specifications  |  Motorola's AP7131 page  |
Accessories:   |  Accessories/Options  |  Motorola AP7131 service contract  |

AP-7131N-66S70-US Details

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 5.15 GHz
  • Total Number of Antennas: 6
  • Wireless Transmission Speed: 600 Mbps
  • ISM Maximum Frequency: 2.46 GHz
  • UNII Maximum Frequency: 5.85 GHz
  • Antenna Connector: RP-SMA Connector
  • Wireless Security:
    • WPA2
    • WPA
    • IEEE 802.11i
    • IEEE 802.1x

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP-7131
  • Product Name: AP-7131 Wireless Access Point

Physical Characteristics

  • Height: 1.5"
  • Depth: 5.5"
  • Form Factor:
    • Wall Mountable
    • Ceiling Mountable
  • Weight (Approximate): 2.67 lb


  • Gigabit Ethernet Port: Yes
  • Number of Network (RJ-45) Ports: 1
  • PoE (RJ-45) Port: Yes
  • Management Port: Yes


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • AP-7131 Wireless Access Point
    • Quick Installation Guide
    • AP-7131 Wireless Access Point
    • Quick Installation Guide

Management & Protocols

  • Management:
    • SNMP v3
    • CLI
    • Web-based GUI
    • DHCP
    • IEEE 802.1p QoS
    • IEEE 802.1q VLAN

Power Description

  • Input Voltage: 48 V DC
Part # Description Availability Price Order
BCISC-AP-7131 BCI 3-Year Extended Warranty Plus, Rest easy with 3 years of technical support and quick replacements on your purchase. You get dedicated technical support specialists 8am-6pm CT, Monday-Friday and quick (overnight turnaround) replacements for products damaged by regular use or accidental breakage. Ships Free Today $257.40

The Motorola AP-7131N-66S70-US is also known as SYM-AP7131N66S70US or AP7131N66S70US .
