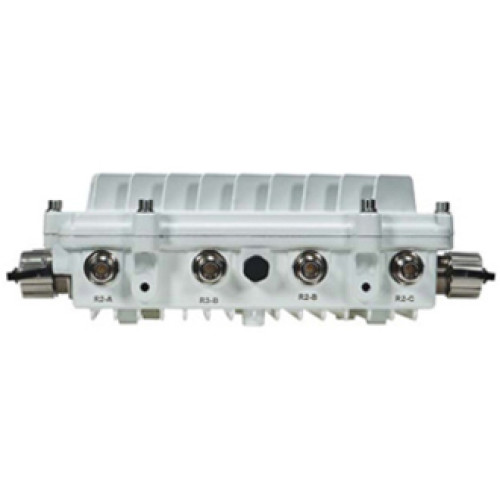

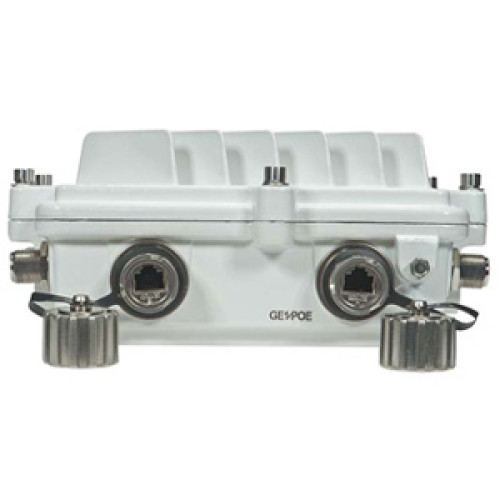

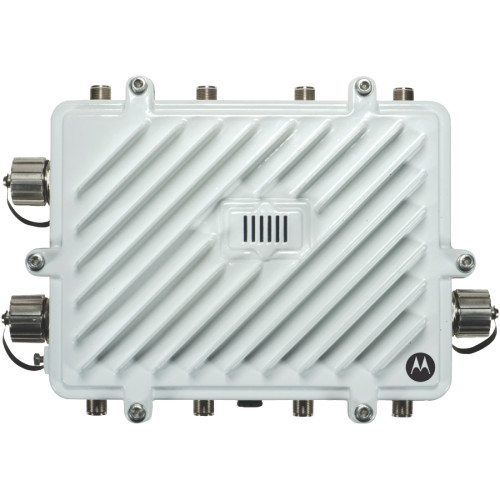

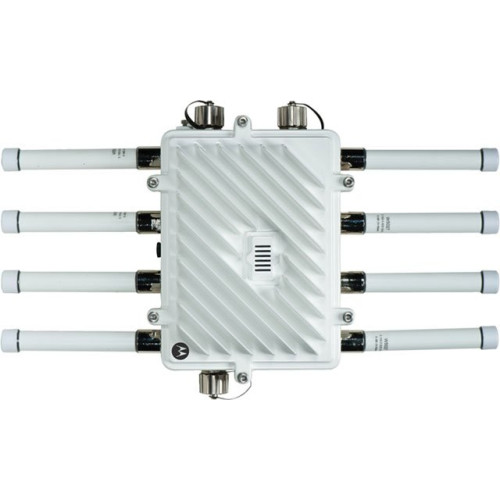

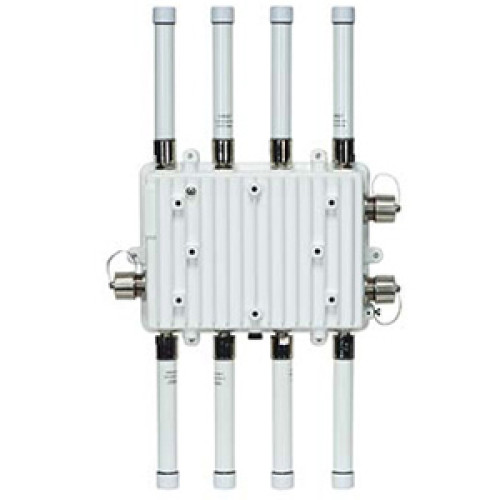

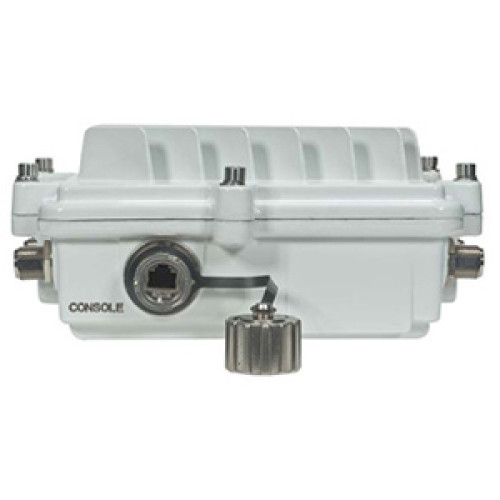

AP-7161-66040-WR - Motorola AP 7161 Data Networking Device

Perfect for extending network coverage to outside areas, the AP 7161 brings the latest 802.11n 3x3 MIMO tri-radio design together with the rugged outdoor performance. True perimeter security is provided using either a dedicated dual-band sensor or software mode for both 2.4GHz and 5GHz bands to deliver 24x7 rogue detection and termination. The AP 7161 is optimized with WiNG 5 intelligence at the edge extending QoS, security, and mobility services to the access point so you get better capacity and performance. The AP 7161 is ideal for industrial, enterprise campus, video surveillance, public safety, and smartgrid utility deployments to extend to the outdoors.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
AP-7161-66040-WR AP-7161, AP 7161 Outdoor Mesh Access Point (802.11n Ap, Intl) Ships Free Today $1,814.82
Retail $2299
Save 21%
Information:   |  Specifications  |  Motorola's AP 7161 page  |
Accessories:   |  Accessories/Options  |  Motorola AP 7161 service contract  |

AP-7161-66040-WR Details

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.40 GHz
  • UNII Minimum Frequency: 4.94 GHz
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.48 GHz
  • UNII Maximum Frequency: 5.83 GHz
  • Antenna Connector: N-Type
  • Features:
    • MIMO Technology
    • Quality of Service (QoS)
  • Wireless Security:
    • Stateful Firewall
    • IP filtering
    • NAT
    • IEEE 802.1X
    • IEEE 802.11i
    • WPA2
    • WPA

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP7161
  • Product Name: AP7161 Wireless Access Point

Physical Characteristics

  • Height: 8.9"
  • Width: 12.6"
  • Depth: 3.9"
  • Form Factor:
    • Pole-mountable
    • Wall Mountable
  • Weight (Approximate): 6.40 lb

Interfaces/Ports

  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • 10Gigabit Ethernet Port: No
  • Number of Network (RJ-45) Ports: 1
  • PoE (RJ-45) Port: Yes
  • USB: No
  • VGA: No
  • Serial Port: No
  • Network (RJ-11): No
  • Powerline: No
  • Management Port: Yes

Power Description

  • Input Voltage: 48 V DC
  • Power Source: AC Adapter

Management & Protocols

  • Management: DHCP

Warranty

  • Limited Warranty: 1 Year
Part # Description Availability Price Order
SSS-AP7161-30 Symbol Service Contract - 3 year, Zebra OneCare Select. Includes Comprehensive coverage. Check datasheet for regional availability.
Ships Free in 3-5 Days
$343.53
Retail $445.50
Save 22%

The Motorola AP-7161-66040-WR is also known as MOT-AP716166040WR or AP716166040WR .
