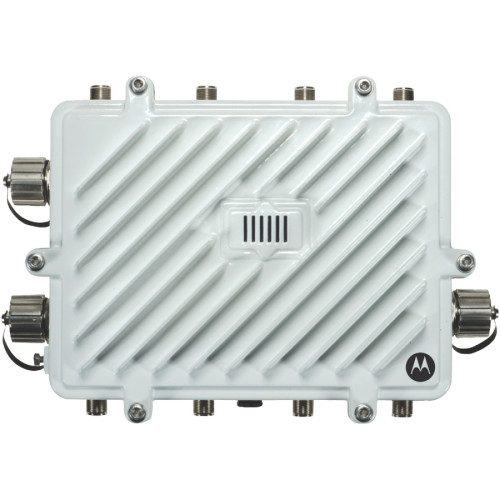

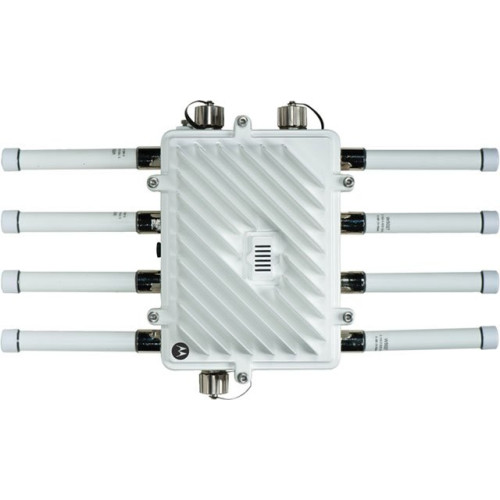

AP-7161-66S40-US - Motorola AP 7161 Access Point

Perfect for extending network coverage to outside areas, the AP 7161 brings the latest 802.11n 3x3 MIMO tri-radio design together with the rugged outdoor performance. True perimeter security is provided using either a dedicated dual-band sensor or software mode for both 2.4GHz and 5GHz bands to deliver 24x7 rogue detection and termination. The AP 7161 is optimized with WiNG 5 intelligence at the edge extending QoS, security, and mobility services to the access point so you get better capacity and performance. The AP 7161 is ideal for industrial, enterprise campus, video surveillance, public safety, and smartgrid utility deployments to extend to the outdoors.

Part # Description Availability Price Order
AP-7161-66S40-US AP-7161, Outdoor Dual Radio 802.11n Access Point With Sensor Mode, Does Not Include Antennas, PoE, Or Mounting Bracket Ships Free Today $1,752.33
Information:   |  Specifications  |  Motorola's AP 7161 page  |
Accessories:   |  Accessories/Options  |  Motorola AP 7161 service contract  |

AP-7161-66S40-US Details

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.40 GHz
  • UNII Minimum Frequency: 4.94 GHz
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.48 GHz
  • UNII Maximum Frequency: 5.83 GHz
  • Antenna Connector: N-Type
  • Features:
    • MIMO Technology
    • Quality of Service (QoS)
  • Wireless Security:
    • WPA
    • WPA2
    • Stateful Firewall
    • IP Filtering
    • NAT
    • IEEE 802.1x
    • IEEE 802.11i

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP7161
  • Product Name: AP7161 Outdoor Mesh Access Point

Physical Characteristics

  • Height: 8.9"
  • Width: 12.6"
  • Depth: 3.9"
  • Form Factor:
    • Pole-mountable
    • Wall Mountable
  • Weight (Approximate): 6.40 lb

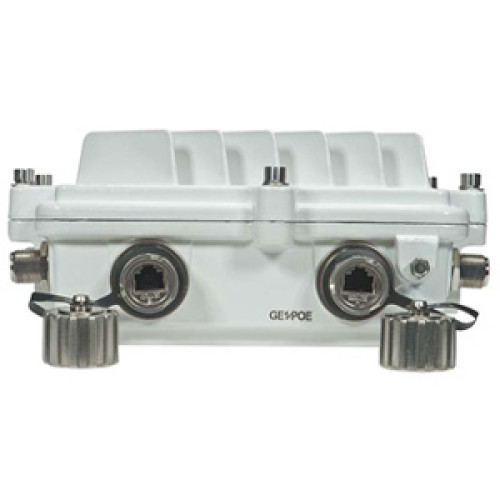

Interfaces/Ports

  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • 10Gigabit Ethernet Port: No
  • Number of Network (RJ-45) Ports: 1
  • PoE (RJ-45) Port: Yes
  • USB: No
  • VGA: No
  • Serial Port: No
  • Network (RJ-11): No
  • Powerline: No

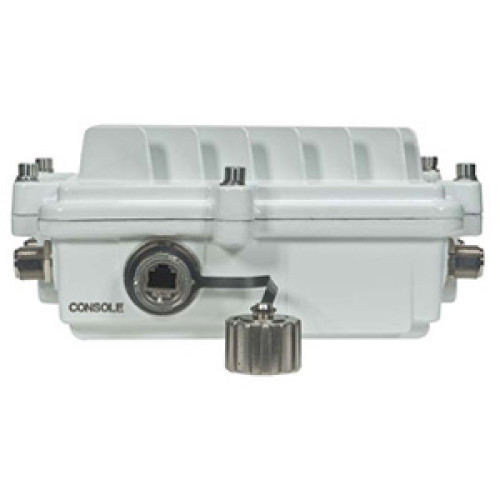

  • Management Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Certifications & Standards:
    • IEEE 802.11a
    • IEEE 802.11b
    • IEEE 802.11g
    • IEEE 802.11n
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3ab
    • IEEE 802.3at
    • IEEE 802.11i
    • IEEE 802.1x
    • IEEE 802.11e
    • IEEE 802.1p
    • FCC Title 47, part 15, part 90
    • EN 301 489-17
    • EN 301 893 v1.5.1 DFS
    • EN 302 502 DFS
    • EN 300 328
    • IC
    • UL 60950-1, -22
    • CSA C22.2 No.60950-1-07, -22
    • CB-IEC 60950 -1, 22
    • EN 60950-1:2006+ A11:2009
    • CE

Power Description

  • Input Voltage: 48 V DC
  • Power Source: AC Adapter

Management & Protocols

  • Management: DHCP

Warranty

  • Limited Warranty: 1 Year
Part # Description Availability Price Order
BCISC-AP-7161 BCI 3-Year Extended Warranty Plus, Rest easy with 3 years of technical support and quick replacements on your purchase. You get dedicated technical support specialists 8am-6pm CT, Monday-Friday and quick (overnight turnaround) replacements for products damaged by regular use or accidental breakage. Ships Free Today $445.50

The Motorola AP-7161-66S40-US is also known as MOT-AP716166S40US or AP716166S40US .
