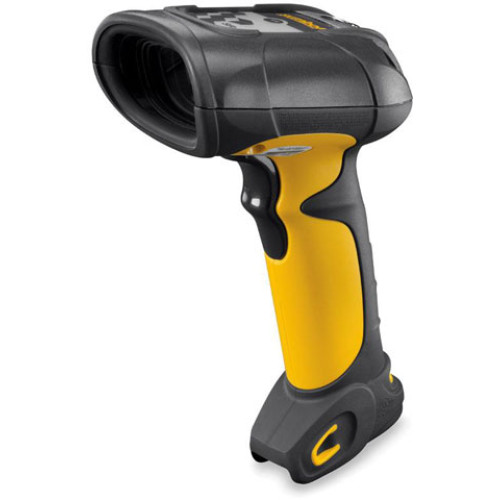

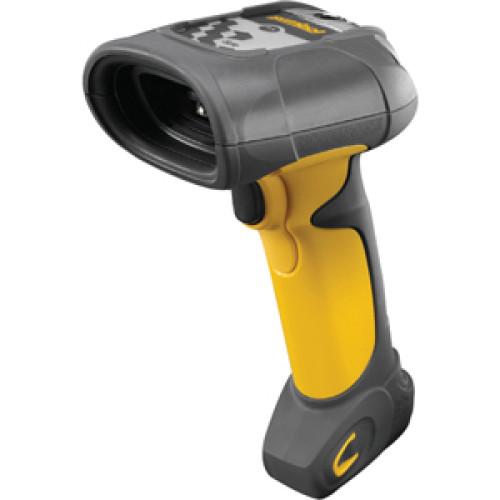

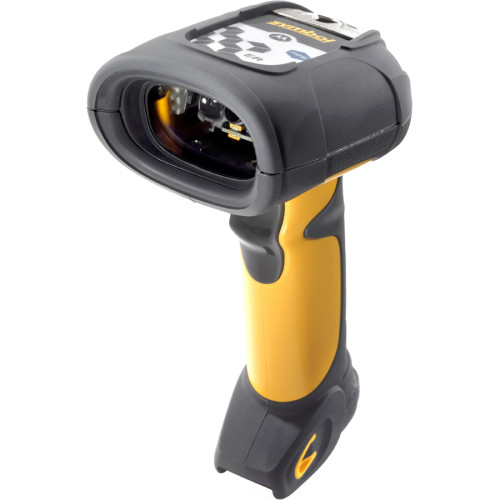

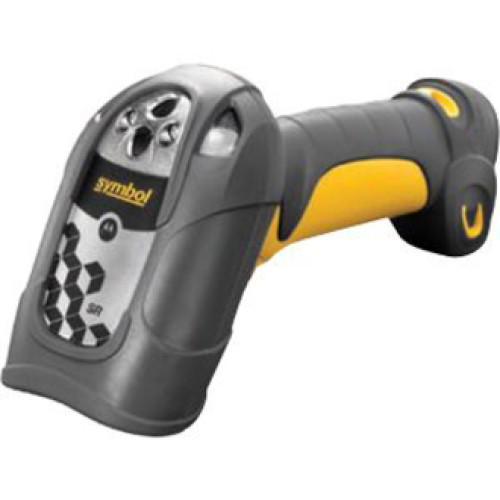

DS3508-ER20005R - Motorola DS3508-ER Bar code Scanner

The Motorola DS3508-ER features powerful 624 Mhz processor, fast sensor shutter speed and patent pending Fastpulse illumination. The DS3508-ER also has superior performance on 1D and 2D bar codes, improving productivity in a wide variety of applications.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
DS3508-ER20005R DS 3508 Extended Range, SCANNER ONLY, Long Range 2D Imager, Rugged Handheld Corded Scanner. Does not include necessary cables. For the full kit purchase (Part# DS3508-ERAU0100ZR). Ships Free Today $648.00
Information:   |  Specifications  |  Motorola's DS3508-ER page  |
Accessories:   |  No accessories available  |

DS3508-ER20005R Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Scanning Distance: 30 ft
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D Codes:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals, ISBN (Bookland), ISSN, Coupon Code)
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (omni-directional, truncated, Stacked, Stacked omni-directional, limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 (and Variants):
    • PDF417 (Standard, Macro)
    • microPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2D Codes:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal:
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japan Postal
    • Australian Postal
    • Dutch Postal
    • 4 State Postal
    • IUID Support:
    • Supports iUiD parsing - the ability to read and separate IUID felds per application requirements
    • 1D Codes:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals, ISBN (Bookland), ISSN, Coupon Code)
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (omni-directional, truncated, Stacked, Stacked omni-directional, limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 (and Variants):
    • PDF417 (Standard, Macro)
    • microPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2D Codes:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal:
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japan Postal
    • Australian Postal
    • Dutch Postal
    • 4 State Postal
    • IUID Support:
    • Supports iUiD parsing - the ability to read and separate IUID felds per application requirements
  • Depth of Field:
    • 8.50" - 34.02"@7.50 mil - Code 39
    • 7.99" - 42.01"@10 mil - Code 39
    • 7.99" - 87.99"@20 mil - Code 39
    • 7.99" - 17.08 ft@55 mil - Code 39
    • 7.99" - 27.92 ft@100 mil - Code 39

General Information

  • Product Type: Handheld Barcode Scanner
  • Product Series: DS3500-ER
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS3508-ER
  • Product Name: DS3508-ER Handheld Barcode Reader

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Color:
    • Black
    • Yellow
  • Weight (Approximate): 12.80 oz

Interfaces/Ports

  • Host Interface:
    • Keyboard Wedge
    • Serial
    • USB
    • IBM 46XX

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS

Warranty

  • Limited Warranty: 3 Year
Part # Description Availability Price Order
CBA-U01-S07ZAR Motorola Cable, USB Cable, 7 ft. (2m) Straight, Series A Connector. Ships Free Today $25.50
Retail $27

The Motorola DS3508-ER20005R is also known as MOT-DS3508ER20005R or DS3508ER20005R .
