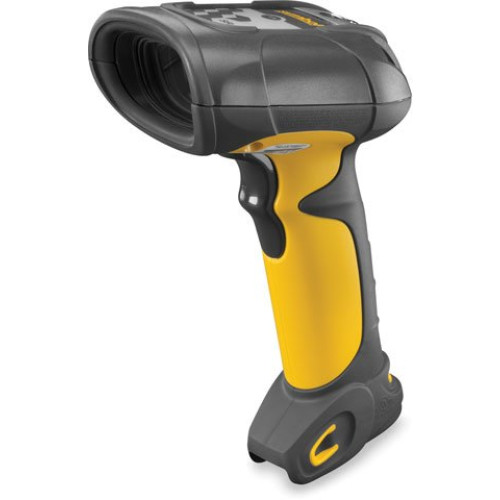

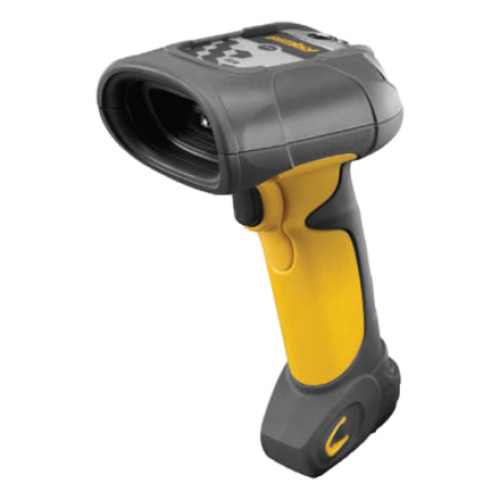

DS3508-HDAU0200ZR - Motorola DS 3508 Bar code Scanner

The Motorola DS3508 Series of rugged, corded digital scanners bring comprehensive, high performance data capture to harsh industrial environments to improve business efficiency.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
DS3508-HDAU0200ZR DS 3508 High Density, USB Kit, 2D Imager, High Desnity, Rugged Handheld Corded Scanner. Includes USB cable.
Information:   |  Specifications  |  Motorola's DS 3508 page  |
Accessories:   |  Accessories/Options  |  Motorola DS 3508 service contract  |

DS3508-HDAU0200ZR Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D Codes
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals
    • ISBN (Bookland)
    • Coupon Code
    • ISSN
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard,Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 and Variants
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2D Codes
    • TLC-39, Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard,Inverse, Micro)
    • Postal codes
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japan Postal
    • Australian Postal
    • Dutch Postal
    • 4State Postal
    • 1D Codes
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals
    • ISBN (Bookland)
    • Coupon Code
    • ISSN
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard,Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 and Variants
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2D Codes
    • TLC-39, Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard,Inverse, Micro)
    • Postal codes
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japan Postal
    • Australian Postal
    • Dutch Postal
    • 4State Postal
  • Depth of Field:
    • 1.10" - 1.60"@3 mil - Code 39
    • 0 mil - 3.50"@4 mil - Code 39
    • 0 mil - 4.20"@5 mil - Code 39
    • 0 mil - 5.40"@7.50 mil - Code 39
    • 1.10" - 9.20"@20 mil - Code 39
    • 0.80" - 6.20"@13 mil - 100% UPC
    • 0 mil - 3.70"@6.67 mil - PDF417
    • 0 mil - 4.50"@10 mil - PDF417
    • 3.20" - 5.60"@15 mil - PDF417
    • 1" - 2.10"@4 mil - Data Matrix
    • 0.40" - 2.70"@5 mil - Data Matrix
    • 0 mil - 3.50"@7.50 mil - Data Matrix
    • 0 mil - 4.40"@10 mil - Data Matrix
    • 1.10" - 1.40"@4 mil - QR Code
    • 0.50" - 2.20"@5 mil - QR Code
    • 0 mil - 3.30"@7.50 mil - QR Code
    • 0 mil - 4"@10 mil - QR Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS3508
  • Product Name: DS3508-HD Handheld Barcode Scanner

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Weight (Approximate): 11.85 oz

Interfaces/Ports

  • Host Interface: USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • DS3508-HD Handheld Barcode Reader
    • Holster
    • Intelli-Stand (hands-free scanning)
    • Tool Balancer Pulley (tethered)
    • DS3508-HD Handheld Barcode Reader
    • Holster
    • Intelli-Stand (hands-free scanning)
    • Tool Balancer Pulley (tethered)

Warranty

  • Limited Warranty: 3 Year
Part # Description Availability Price Order
21-52612-01R Symbol Rugged scanner holder (can be mounted on forklift) Ships Free Today $82.67
Retail $125
Save 33%
20-54090-07R Symbol Twlight black stand assembly for LS34xx Ships Free Today $49.61
Retail $69
Save 28%
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
SSS-DS3508-30 Symbol Service Contract - 3 year, Zebra OneCare Select. Includes Comprehensive coverage. Check datasheet for regional availability.
Ships Free in 3-5 Days
$51.43
Retail $64.90
Save 20%

The Motorola DS3508-HDAU0200ZR is also known as SYM-DS3508HDAU0200ZR or DS3508HDAU0200ZR .
