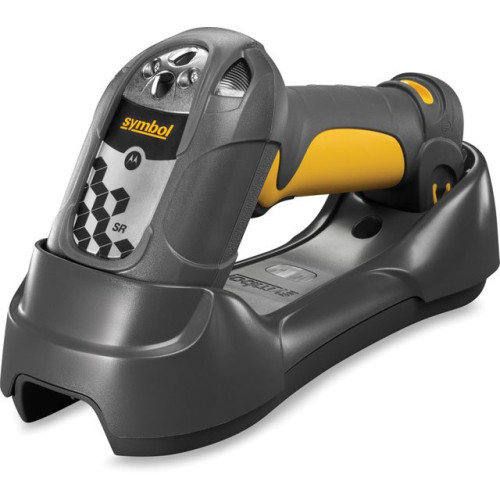

DS3578-HDFU0100IR - Motorola DS 3578 Bar code Scanner

The Motorola DS3578 Series of rugged, omnidirectional digital scanners bring comprehensive, high-performance data capture to harsh industrial environments, plus integrated Bluetooth provides cordless freedom, improving productivity.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
DS3578-HDFU0100IR DS3578-HD, USB Kit, 2D Imager, High Density, Cordless, FIPS Security Encryption. Includes Charging and Communication Cradle, USB cable, and Power supply. Does Not Include AC Line Cord (Part# 50-16000-182R). Ships Free Today $858.96
Information:   |  Specifications  |  Motorola's DS 3578 page  |
Accessories:   |  Accessories/Options  |  Motorola DS 3578 service contract  |

DS3578-HDFU0100IR Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Wireless
  • Image Sensor:
    • Imager
    • CMOS
  • Barcode Symbology Supported:
    • 1D Codes:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus Supplementals, ISBN (Bookland), ISSN, Coupon Code)
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 (And Variants):
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2D Codes:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal Codes:
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japan
    • Postal
    • Australian Postal
    • Dutch Postal
    • 4State Postal
    • 1D Codes:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus Supplementals, ISBN (Bookland), ISSN, Coupon Code)
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 (And Variants):
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2D Codes:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal Codes:
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japan
    • Postal
    • Australian Postal
    • Dutch Postal
    • 4State Postal
  • Depth of Field:
    • 1.10" - 1.60"@3 mil - Code 39
    • 3.50"@4 mil - Code 39
    • 4.20"@5 mil - Code 39
    • 5.40"@7.50 mil - Code 39
    • 1.10" - 9.20"@20 mil - Code 39
    • 0.80" - 6.20"@13 mil - 100% UPC
    • 3.70"@6.67 mil - PDF417
    • 4.50"@10 mil - PDF417
    • 3.20" - 5.60"@15 mil - PDF417
    • 1" - 2.10"@4 mil - Data Matrix
    • 0.40" - 2.70"@5 mil - Data Matrix
    • 3.50"@7.50 mil - Data Matrix
    • 4.40"@10 mil - Data Matrix
    • 1.10" - 1.40"@4 mil - QR Code
    • 0.50" - 2.20"@5 mil - QR Code
    • 3.30"@7.50 mil - QR Code
    • 4"@10 mil - QR Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS3578-HD
  • Product Name: DS3578-HD Handheld Barcode Reader

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Color:
    • Twilight Black
    • Yellow
  • Weight (Approximate): 13.79 oz

Interfaces/Ports

  • Host Interface: USB

Network & Communication

  • Bluetooth: Yes

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

The Motorola DS3578-HDFU0100IR is also known as MOT-DS3578HDFU0100IR or DS3578HDFU0100IR .
