DS4208-HC0009BWR - Motorola DS 4208 Bar code Scanner

The Motorola DS 4208 scanner can capture not only bar codes printed on paper labels or displayed on the screen of a mobile phone, retailers can accommodate customers who download mobile coupons, mobile loyalty cards and more. You get industry leading scanning speed on every bar code; true point-and-shoot first-time scanning simplicity on even damaged and poorly printed bar codes and a durable design for all day everyday reliability, all at an affordable price. The DS 4208 is built to last, and toughness tests prove it. The DS 4208 delivers outstanding performance, even after exposure to heat, cold, dust, a spilled beverage and 2,000 consecutive drops.

Part # Description Availability Price Order

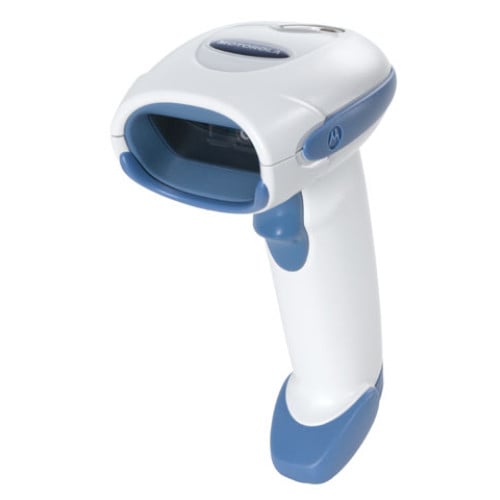

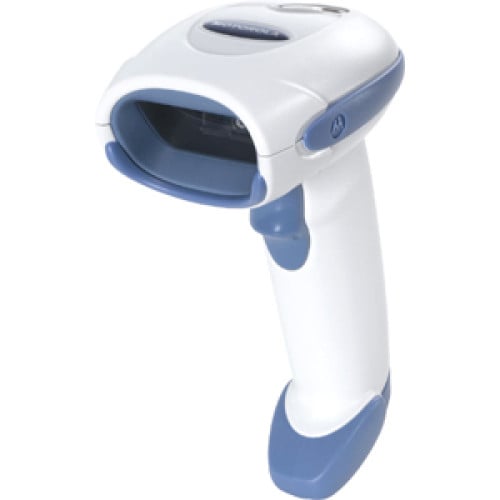

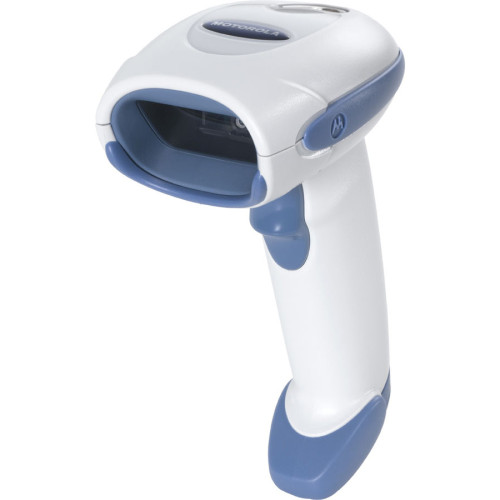

DS4208-HC0009BWR DS4208 HC, SCANNER ONLY. 2D Imager, Disinfectant-ready Housing For Health care Applications. Cables sold separately. Color: White. For the full kit purchase (Part# DS4208-SCZU0100ZWR).
Information:   |  Specifications  |  Motorola's DS 4208 page  |
Accessories:   |  Accessories/Options  |  Motorola DS 4208 service contract  |

DS4208-HC0009BWR Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D:
    • UPC/EAN
    • UPC/EAN with supplementals
    • Bookland EAN
    • ISSN
    • UCC Coupon Extended Code
    • Code 128
    • GS1-128
    • ISBT 128
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • Code 32
    • Code 93
    • Code 11
    • Matrix 2 of 5
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Codabar
    • MSI
    • Chinese 2 of 5
    • GS1 DataBar Variants
    • Korean 3 of 5
    • ISBT Concat
    • 2D:
    • PDF417
    • MicroPDF417
    • Composite Codes
    • TL C-39
    • Data Matrix
    • Maxicode
    • QR Code
    • MicroQR
    • Aztec
    • Postal:
    • Australian Post
    • US PLANET
    • Royal Mail 4 State Customer
    • US POSTNET
    • KIX Code (Dutch)
    • UK Postal
    • Japan Post
    • UPU 4 State Postal FICS (Post US4)
    • USPS 4 State Postal (Post US3)
    • 1D:
    • UPC/EAN
    • UPC/EAN with supplementals
    • Bookland EAN
    • ISSN
    • UCC Coupon Extended Code
    • Code 128
    • GS1-128
    • ISBT 128
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • Code 32
    • Code 93
    • Code 11
    • Matrix 2 of 5
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Codabar
    • MSI
    • Chinese 2 of 5
    • GS1 DataBar Variants
    • Korean 3 of 5
    • ISBT Concat
    • 2D:
    • PDF417
    • MicroPDF417
    • Composite Codes
    • TL C-39
    • Data Matrix
    • Maxicode
    • QR Code
    • MicroQR
    • Aztec
    • Postal:
    • Australian Post
    • US PLANET
    • Royal Mail 4 State Customer
    • US POSTNET
    • KIX Code (Dutch)
    • UK Postal
    • Japan Post
    • UPU 4 State Postal FICS (Post US4)
    • USPS 4 State Postal (Post US3)
  • Depth of Field:
    • 0.20" - 6.80"@5 mil - Code 39
    • 0 mil - 12.70"@10 mil - 80% UPCA
    • 0.30" - 15.20"@13 mil - 100% UPCA
    • 1.50" - 4.30"@5 mil - PDF 417
    • 0.80" - 6"@6.60 mil - PDF 417
    • 0.40" - 7.20"@10 mil - Data Matrx

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS4208-HC
  • Product Name: DS4208-HC Handheld Barcode Reader

Physical Characteristics

  • Height: 6.7"
  • Width: 2.7"
  • Depth: 3.7"
  • Color: White
  • Weight (Approximate): 6.10 oz

Interfaces/Ports

  • Host Interface:
    • IBM 46XX
    • Serial
    • Keyboard Wedge
    • USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS

Warranty

  • Limited Warranty: 5 Year
Part # Description Availability Price Order
CBA-U21-S07ZAR Motorola Cable, USB Cable (7 ft. Straight, Shielded Series A Connector) Ships Free Today $25.34
Retail $27
20-70774-02R Symbol Twilight black intellistand for the LS4200, DS4200 and LS3008 Ships Free Today $43.63
Retail $59
Save 26%
20-147076-07 Motorola DS4208 Accessories, Twilight Black, Adjustable Gooseneck Stand For DS4208 Ships Free Today $30.52
Retail $36
Save 15%
TSP-US-SC-3 Barcodes True Support Contract 3-year, - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually. Ships Free Today $48.00
SSS-DS4208-50 Motorola Service Contract - 5 year, Zebra OneCare Select. Includes Comprehensive coverage. Check datasheet for regional availability. Ships Free Today $50.60

The Motorola DS4208-HC0009BWR is also known as SYM-DS4208HC0009BWR or DS4208HC0009BWR .
