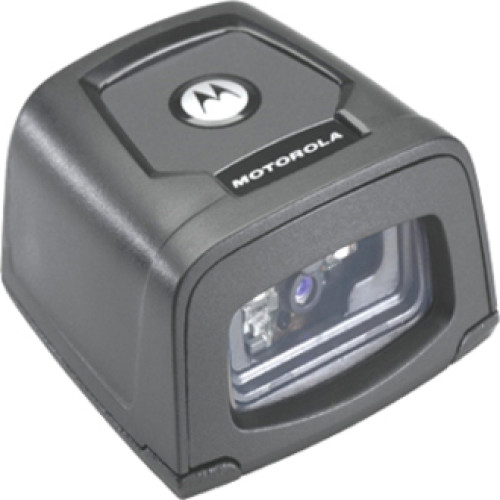

DS457-DP20009 - Motorola DS 457 Industrial Bar code Scanner

No matter what type of barcode is presented, or whether it is printed on paper, etched into a product or displayed on a mobile phone screen, the DS457 Series provides fast, accurate scanning in a tiny footprint that fits in the most space-constrained areas.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
DS457-DP20009 DS457DP, SCANNER ONLY, Fixed Mount 2D Imager, DPM. Cables and Accessories Must Be Purchased Separately. These Include USB (Part# 25-58926-04R) Or RS-232 Serial Cables (Part# 25-58918-02R) and A Power supply (Part# PWRS-14000-253R). Ships Free Today $729.82
Retail $995
Save 26%
Information:   |  Specifications  |  Motorola's DS 457 page  |
Accessories:   |  Accessories/Options  |  Motorola DS 457 service contract  |

DS457-DP20009 Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D:
    • All major 1D barcodes
    • 2D:
    • PDF417
    • DataMatrix
    • QR Code
    • Aztec
    • Composite Codes
    • MaxiCode
    • Postal:
    • US Postnet
    • US Planet
    • UK Postal
    • Australian Postal
    • Japan Postal
    • 1D:
    • All major 1D barcodes
    • 2D:
    • PDF417
    • DataMatrix
    • QR Code
    • Aztec
    • Composite Codes
    • MaxiCode
    • Postal:
    • US Postnet
    • US Planet
    • UK Postal
    • Australian Postal
    • Japan Postal
  • Depth of Field:
    • 1.20" - 4.80"@3 mil - Code 39
    • 1.10" - 5.70"@5 mil - Code 39
    • 1.90" - 9.70"@20 mil - Code 39
    • 1.70" - 8.30"@13 mil - UPC
    • 1.60" - 3"@4 mil - Datamatrix
    • 1.40" - 3.70"@5 mil - Datamatrix
    • 1.20" - 4.40"@7.50 mil - Datamatrix
    • 10 mil - Datamatrix
    • 15 mil - Datamatrix
    • 1.50" - 3.10"@5 mil - QR Code
    • 1.10" - 4"@7.50 mil - QR Code
    • 1.10" - 4.60"@10 mil - QR Code
    • 1.40" - 3.80"@4 mil - PDF417
    • 1" - 4.80"@6.67 mil - PDF417
    • 10 mil - PDF417
    • 15 mil - PDF417

General Information

  • Product Type: Fixed Mount Barcode Scanner
  • Product Series: DS457
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS457 DP
  • Product Name: DS457 DP Fixed Mount Barcode Scanner

Physical Characteristics

  • Height: 1.2"
  • Width: 2.4"
  • Color: Dark Gray
  • Length: 2.3"
  • Weight (Approximate): 3.90 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS

Warranty

  • Limited Warranty: 3 Year
Part # Description Availability Price Order
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 24-48 Hours
$48.00
SSS-DS457-30 Motorola Service Contract - 3 year, Zebra OneCare Select. Includes Comprehensive coverage. Check datasheet for regional availability.
Ships Free in 24-48 Hours
$63.80

The Motorola DS457-DP20009 is also known as MOT-DS457DP20009 or DS457DP20009 .
