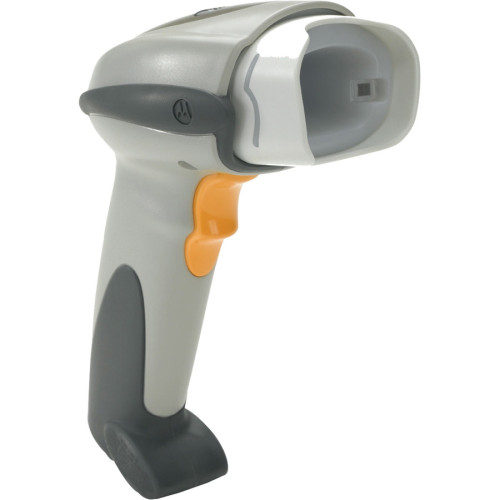

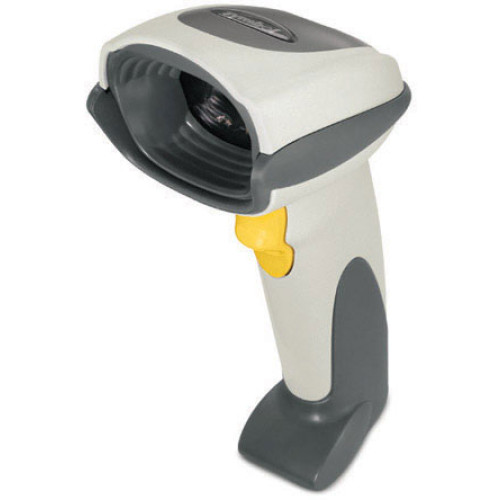

DS6707-DP20001ZZR - Motorola DS6707DP Bar code Scanner

The Motorola DS6707DP is a premier general purpose scanner, offering the maximum in data capture flexibility. The DS6707DP is able to capture images and read virtually all 1D and 2D barcodes and direct part marks (DPM) including the most challenging mark, dot peen. This highly versatile device is ideal in industries that depend on a wide variety of data types, such as health care, aerospace and automotive. With the DS6707DP, workers can capture the right information at the right time, driving inefficiencies and errors out of business processes improving accuracy as well as employee productivity.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
DS6707-DP20001ZZR DS 6707, SCANNER ONLY, 2D imager, DPM (Direct Part Marking) Reading Capability. For digital scanning/HD focus. Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR) or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R). Color: White. Ships Free Today $1,580.40
Information:   |  Specifications  |  Motorola's DS6707DP page  |
Accessories:   |  Accessories/Options  |  Motorola DS6707DP service contract  |

DS6707-DP20001ZZR Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1-D:
    • UPC/EAN and with supplementals
    • Code 39
    • Code 39 Full ASCII
    • Tri-optic Code 39
    • GS1DataBar (formerly RSS)
    • Code 128
    • Code 128 Full ASCII
    • GS1-128 (formerly UCC/EAN-128)
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Codell
    • IATA
    • Bookland EAN
    • Code 32
    • PDF417 (and Variants):
    • PDF417
    • MicroPDF417 and composite codes
    • Postal:
    • U.S. Postnet and Planet
    • U.K.
    • Japan
    • Australian
    • Dutch
    • 4 State Postal
    • Post US 4
    • 2-D:
    • MaxiCode
    • DataMatrix (ECC 200)
    • QR Code
    • MicroQR
    • Aztec
    • 1-D:
    • UPC/EAN and with supplementals
    • Code 39
    • Code 39 Full ASCII
    • Tri-optic Code 39
    • GS1DataBar (formerly RSS)
    • Code 128
    • Code 128 Full ASCII
    • GS1-128 (formerly UCC/EAN-128)
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Codell
    • IATA
    • Bookland EAN
    • Code 32
    • PDF417 (and Variants):
    • PDF417
    • MicroPDF417 and composite codes
    • Postal:
    • U.S. Postnet and Planet
    • U.K.
    • Japan
    • Australian
    • Dutch
    • 4 State Postal
    • Post US 4
    • 2-D:
    • MaxiCode
    • DataMatrix (ECC 200)
    • QR Code
    • MicroQR
    • Aztec
  • Depth of Field:
    • 0.84" - 2.42"@3 mil - Code 39
    • 0.42" - 3.13"@4 mil - Code 39
    • 0.29" - 3.38"@5 mil - Code 39
    • 4.38"@7.50 mil - Code 39
    • 0.59" - 4.96"@10 mil - Code 39
    • 0.42" - 8.21"@20 mil - Code 39
    • 0.21" - 5.13"@13 mil - 100% UPC
    • 0.63" - 3.10"@6.67 mil - PDF417
    • 0.46" - 3.54"@10 mil - PDF417
    • 1.33" - 4.46"@15 mil - PDF417
    • 1.04" - 2.13"@4 mil - Data Matrix
    • 0.79" - 2.50"@5 mil - Data Matrix
    • 0.50" - 3"@7.50 mil - Data Matrix
    • 0.54" - 3.50"@10 mil - Data Matrix
    • 1.13" - 2.17"@4 mil - QR Code
    • 0.88" - 2.54"@5 mil - QR Code
    • 0.67" - 3"@7.50 mil - QR Code
    • 0.46" - 3.42"@10 mil - QR Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS6707
  • Product Name: Symbol DS6707 Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 6.6"
  • Width: 2.8"
  • Depth: 4.7"
  • Color: White
  • Weight (Approximate): 6.40 oz

Interfaces/Ports

  • Host Interface:
    • Serial
    • USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS

Warranty

  • Limited Warranty: 5 Year
Part # Description Availability Price Order
CBA-U01-S07ZAR Motorola Cable, USB Cable, 7 ft. (2m) Straight, Series A Connector. Ships Free Today $25.50
Retail $27
20-70738-02R Symbol Black gooseneck stand assembly for DS6xxx Ships Free Today $41.58
Retail $55
Save 24%
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
SSS-DS670X-50 Symbol Service Contract - 5 year, Zebra OneCare Select. Includes Comprehensive coverage. Check datasheet for regional availability.
Ships Free in 3-5 Days
$44.40
Retail $53.90
Save 17%

The Motorola DS6707-DP20001ZZR is also known as SYM-DS6707DP20001ZZR or DS6707DP20001ZZR .
