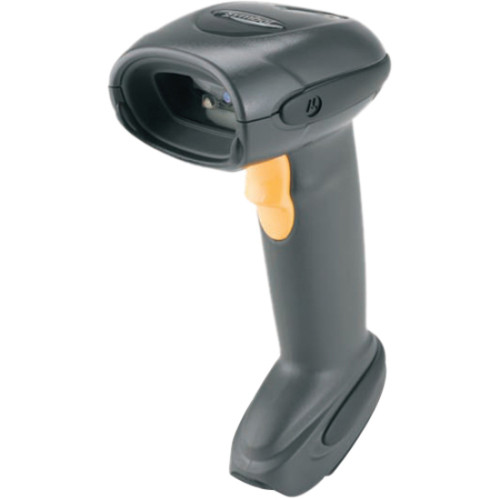

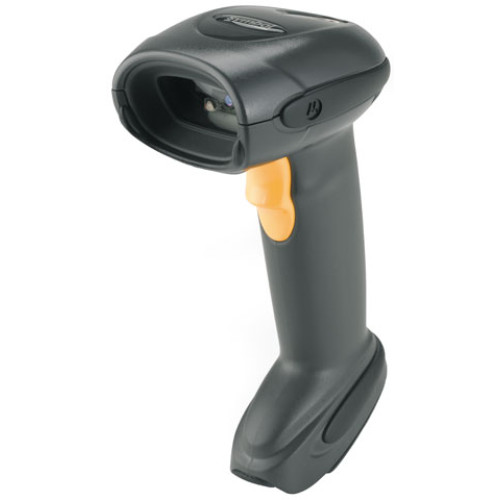

Motorola DS6878-DL Barcode Scanner
Part #: DS6878-DL20007WR | SKU: MOT90267

The Motorola DS6878-DL cordless 2D imager offers the complete data capture functionality required to streamline and error-proof everyday processes. Comfortable and easy-to-use, this single device can capture all common barcodes (1D, 2D and PDF417) on labels as well as on mobile phone displays. The on-board Driver's License parsing agent enables instant decoding of barcoded information on driver's licenses to support a wide variety of value-added applications. The optional hands-free presentation cradle enables additional advanced capabilities: signature, document and photo capture; optical character recognition (OCR) to capture text in documents; and MICR to capture numeric information on the bottom of checks.

Motorola DS6878-DL Barcode Scanner

Part Details: DS6878-DL, SCANNER ONLY. Cordless 2D Imager with Embedded Driver's License Parsing firmware. Requires Radio/Charging Cradle (CR0078-SC10007WR) and USB Cable (CBA-U01-S07ZAR). Power supply Optional. Color: Black.

Additional Information

Connectivity Cordless
Form Factor Handheld
Manufacturer Motorola
Model Name DS6878-DL
Scan Pattern Area
Scanner Capability 2D
Scanner Type Imager

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Wireless
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1-D:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8-EAN-13/ JAN-8/JAN13 Plus Supplementals
    • ISBN (Bookland)
    • ISSN
    • Coupon Code
    • Code 39 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2of 5 / ITF, Discrete 2of 5 IATA, Chinese 2 of 5) GS1 Databar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 (And Variants):
    • PDF417
    • MicroPDF417
    • Composite Codes (CC-A, CC-B, CC-C)
    • Postal:
    • U.S. Postnet And Planet
    • U.K.
    • Japan
    • Australia
    • Netherlands KIX Code
    • Royal Mail 4 State Customer
    • UPU ICS 4 State Postal
    • USPS 4CB
    • 2-D:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse And Micro)
    • 1-D:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8-EAN-13/ JAN-8/JAN13 Plus Supplementals
    • ISBN (Bookland)
    • ISSN
    • Coupon Code
    • Code 39 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2of 5 / ITF, Discrete 2of 5 IATA, Chinese 2 of 5) GS1 Databar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 (And Variants):
    • PDF417
    • MicroPDF417
    • Composite Codes (CC-A, CC-B, CC-C)
    • Postal:
    • U.S. Postnet And Planet
    • U.K.
    • Japan
    • Australia
    • Netherlands KIX Code
    • Royal Mail 4 State Customer
    • UPU ICS 4 State Postal
    • USPS 4CB
    • 2-D:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse And Micro)
  • Depth of Field:
    • 0.50" - 6.30"@5 mil - Code 39
    • 1.30" - 5.40"@6 mil - Code 128
    • 8"@10 mil - Code 128
    • 0.60" - 7.20"@7.80 mil - 60% UPC
    • 0.70" - 11"@13 mil - 100% UPC
    • 1.90" - 3.50"@5 mil - PDF
    • 1" - 5.90"@6.60 mil - PDF
    • 8"@10 mil - PDF
    • 1.10" - 7.20"@10 mil - Data Matrix

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Name: Symbol DS6878-DL Handheld Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 7.3"
  • Width: 2.7"
  • Depth: 3.9"
  • Color: Twilight Black
  • Weight (Approximate): 8.40 oz

Network & Communication

  • Bluetooth: Yes
Extended Details
