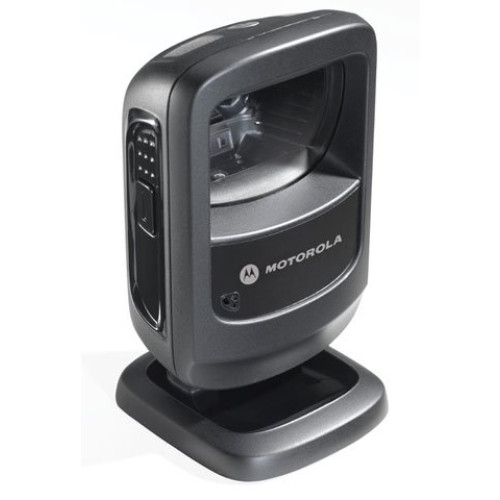

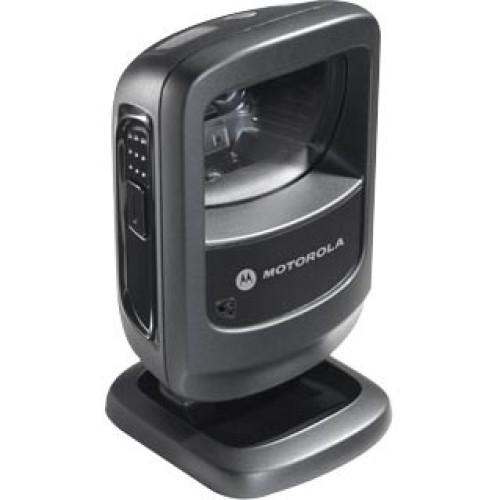

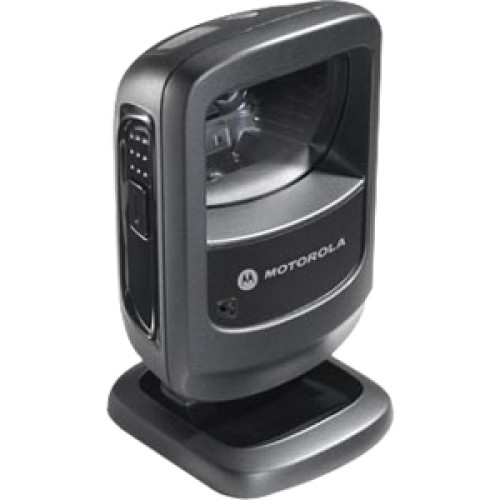

DS9208-SR00004NNWW - Motorola DS 9208 Bar code Scanner

The Motorola DS 9208 hands-free omnidirectional scanner can capture not only bar codes printed on paper labels or displayed on the screen of a mobile phone, retailers can accommodate customers who download mobile coupons, mobile loyalty cards and more. You get industry leading scanning speed on every bar code; true point-and-shoot first-time scanning simplicity on even damaged and poorly printed bar codes and a durable design for all day everyday reliability, all at an affordable price. The DS 9208 is built to last, and toughness tests prove it. The DS 9208 delivers outstanding performance, even after exposure to heat, cold, dust, a spilled beverage and 2,000 consecutive drops.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
DS9208-SR00004NNWW DS 9208, SCANNER ONLY. 2D Imager. Cables and power supply sold separately. For the full kit purchase (Part# DS9208-SR4NNU21Z). Color: Black Ships Free Today $223.94
Retail $340
Save 34%
Information:   |  Specifications  |  Motorola's DS 9208 page  |
Accessories:   |  Accessories/Options  |  Motorola DS 9208 service contract  |

DS9208-SR00004NNWW Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1-D:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus Supplementals
    • ISBN (Bookland)
    • ISSN (Coupon Code)
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 32 (Italian Pharmacode)
    • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA , Chinese 2 of 5, Matrix 2 of 5, Code 11)
    • MSI Plessey
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked)
    • PDF417 (and variants):
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2-D:
    • TL C-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal:
    • U.S. Postnet and Planet
    • U.K. Post
    • Japan Post
    • Australian Post
    • Netherlands KIX Code
    • Royal Mail 4 State Customer
    • UPU FICS 4 State Postal
    • USPS 4CB
    • 1-D:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus Supplementals
    • ISBN (Bookland)
    • ISSN (Coupon Code)
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 32 (Italian Pharmacode)
    • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA , Chinese 2 of 5, Matrix 2 of 5, Code 11)
    • MSI Plessey
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked)
    • PDF417 (and variants):
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2-D:
    • TL C-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal:
    • U.S. Postnet and Planet
    • U.K. Post
    • Japan Post
    • Australian Post
    • Netherlands KIX Code
    • Royal Mail 4 State Customer
    • UPU FICS 4 State Postal
    • USPS 4CB
  • Depth of Field:
    • 0 mil - 4.50"@5 mil - Code 39
    • 0 mil - 8.50"@10 mil - UPC/EAN (80%)
    • 0 mil - 10.50"@13 mil - UPC/EAN (100%)
    • 0 mil - 3.80"@6.60 mil - PDF417
    • 0 mil - 4.70"@10 mil - Datamatrix

General Information

  • Product Type: Desktop Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS9208
  • Product Name: DS9208 Desktop Barcode Reader

Physical Characteristics

  • Height: 5.5"
  • Width: 3.2"
  • Depth: 3.2"
  • Color: Black
  • Weight (Approximate): 9.50 oz

Interfaces/Ports

  • Host Interface:
    • IBM 46XX
    • Keyboard Wedge
    • Serial
    • USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS

Warranty

  • Limited Warranty: 3 Year
Part # Description Availability Price Order
PWRS-14000-253R Motorola Accessories, Power supply, 5VDC/850ma (For Use in US, Ca, Mx, Br, Jp, Tw). Includes line cord. Ships Free Today $28.37
Retail $32
Save 11%
CBA-U01-S07ZAR Motorola Cable, USB Cable, 7 ft. (2m) Straight, Series A Connector. Ships Free Today $25.50
Retail $27
11-129851-04 Motorola DS 9208 Accessories, Black Wall Mount Bracket For DS9208 Ships Free Today $18.61
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 24-48 Hours
$48.00
SSS-DS9208-30 Motorola Service Contract - 3 year, Zebra OneCare Select. Includes Comprehensive coverage. Check datasheet for regional availability.
Ships Free in 24-48 Hours
$59.40

The Motorola DS9208-SR00004NNWW is also known as SYM-DS9208SR00004NNW or DS9208SR00004NNWW .
