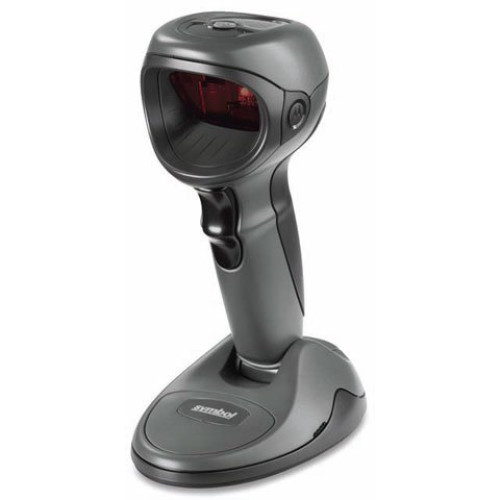

Motorola DS9808 Barcode Scanner
Part #: DS9808-DL00007NNWR | SKU: MOT69772

With the flexible Motorola DS9808, there is no need to purchase multiple devices to enable different types of data capture in your enterprise - no matter what applications you need now or in the future, the powerful comprehensive feature set will meet your needs. The DS9808 delivers the functionality of an image capture device, a barcode scanner, an EAS tag deactivator and an RFID reader all in a single device. Capital and operational costs are significantly reduced - there are fewer devices to purchase and manage, and compatibility with Remote Scanner Management (RSM) enables remote configuration, deployment and day-to-day management of the devices.

Motorola DS9808 Barcode Scanner

Part Details: Symbol DS9808, Standard range, Imager only, Driver's license Parsing

Additional Information

Manufacturer Motorola
Model Name DS9808

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Scanning Distance: 10.50"
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1-D:
    • UPC/EAN
    • ISBN
    • Code 39
    • Code 128
    • Code 93
    • Codabar/NW7
    • Code11
    • MSI Plessey
    • I 2 of 5
    • GS1 DataBar
    • Base 32
    • PDF417(and variants):
    • PDF417
    • MicroPDF417
    • Composite Codes
    • 2-D:
    • TLC-39
    • Aztec
    • MaxiCode
    • DataMatrix/ECC 200
    • QRCode
    • Postal:
    • U.S. Postnet
    • Planet
    • U.K. Post
    • Japan Post
    • Australian Post
    • Netherlands KIX Code
    • Royal Mail 4 State Customer
    • UPU FICS 4 State Postal
    • USPS 4CB
    • 1-D:
    • UPC/EAN
    • ISBN
    • Code 39
    • Code 128
    • Code 93
    • Codabar/NW7
    • Code11
    • MSI Plessey
    • I 2 of 5
    • GS1 DataBar
    • Base 32
    • PDF417(and variants):
    • PDF417
    • MicroPDF417
    • Composite Codes
    • 2-D:
    • TLC-39
    • Aztec
    • MaxiCode
    • DataMatrix/ECC 200
    • QRCode
    • Postal:
    • U.S. Postnet
    • Planet
    • U.K. Post
    • Japan Post
    • Australian Post
    • Netherlands KIX Code
    • Royal Mail 4 State Customer
    • UPU FICS 4 State Postal
    • USPS 4CB
  • Maximum Scan Resolution: 7.80 mil
  • Depth of Field:
    • 0 mil - 4.50"@5 mil - Code 39
    • 0 mil - 8.50"@10 mil - UPC/EAN
    • 0 mil - 10.50"@13 mil - UPC/EAN
    • 0 mil - 5"@6.60 mil - PDF417
    • 0 mil - 6"@10 mil - Data Matrix

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS9808
  • Product Name: Symbol DS9808 Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 8"
  • Width: 3.4"
  • Depth: 5.4"
  • Color: Twilight Black
  • Weight (Approximate): 12 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS

Warranty

  • Limited Warranty: 3 Year
Extended Details
