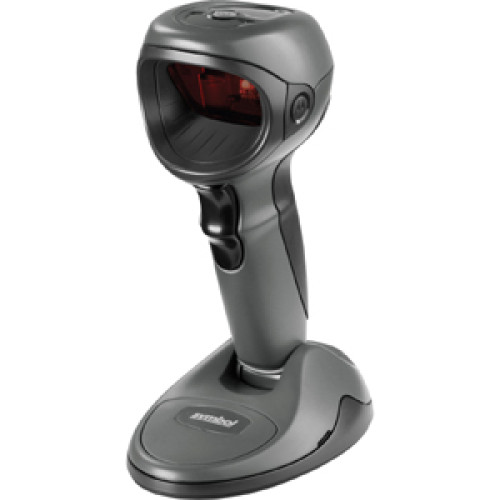

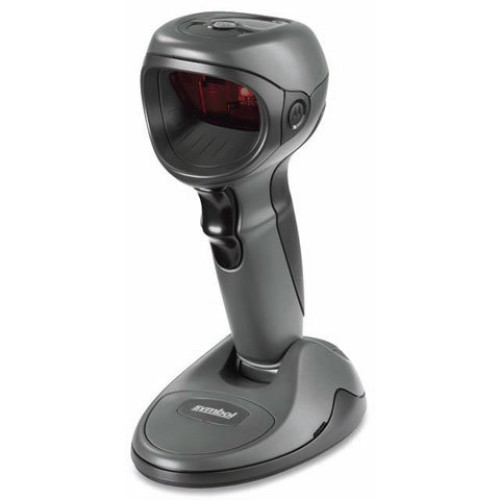

DS9808-LR7NNR01AR - Motorola DS 9808 Bar code Scanner

With the flexible Motorola DS 9808, there is no need to purchase multiple devices to enable different types of data capture in your enterprise - no matter what applications you need now or in the future, the powerful comprehensive feature set will meet your needs. The DS 9808 delivers the functionality of an image capture device, a barcode scanner, an EAS tag deactivator and an RFID reader all in a single device. Capital and operational costs are significantly reduced - there are fewer devices to purchase and manage, and compatibility with Remote Scanner Management (RSM) enables remote configuration, deployment and day-to-day management of the devices.

Part # Description Availability Price Order
DS9808-LR7NNR01AR Symbol DS9808, Kit DS9808-Lr Kit - RS-232 Ships Free Today $419.30
Retail $629
Save 33%
Information:   |  Specifications  |  Motorola's DS 9808 page  |
Accessories:   |  Accessories/Options  |  Motorola DS 9808 service contract  |

DS9808-LR7NNR01AR Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Scanning Distance: 18"
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1-D:
    • UPC/EAN
    • ISBN
    • Code 39
    • Code 128
    • Code 93
    • Codabar/NW7
    • Code11
    • MSI Plessey
    • I 2 of 5
    • GS1 DataBar
    • Base 32
    • PDF417(and variants):
    • PDF417
    • MicroPDF417
    • Composite Codes
    • 2-D:
    • TLC-39
    • Aztec
    • MaxiCode
    • DataMatrix/ECC 200
    • QRCode
    • Postal:
    • U.S. Postnet
    • Planet
    • U.K. Post
    • Japan Post
    • Australian Post
    • Netherlands KIX Code
    • Royal Mail 4 State Customer
    • UPU FICS 4 State Postal
    • USPS 4CB
    • 1-D:
    • UPC/EAN
    • ISBN
    • Code 39
    • Code 128
    • Code 93
    • Codabar/NW7
    • Code11
    • MSI Plessey
    • I 2 of 5
    • GS1 DataBar
    • Base 32
    • PDF417(and variants):
    • PDF417
    • MicroPDF417
    • Composite Codes
    • 2-D:
    • TLC-39
    • Aztec
    • MaxiCode
    • DataMatrix/ECC 200
    • QRCode
    • Postal:
    • U.S. Postnet
    • Planet
    • U.K. Post
    • Japan Post
    • Australian Post
    • Netherlands KIX Code
    • Royal Mail 4 State Customer
    • UPU FICS 4 State Postal
    • USPS 4CB
  • Maximum Scan Resolution: 7.80 mil
  • Depth of Field:
    • 0 mil - 5"@5 mil - Code 39
    • 0 mil - 13.50"@10 mil - UPC/EAN
    • 0 mil - 18"@13 mil - UPC/EAN
    • 0 mil - 5"@6.60 mil - PDF417
    • 0 mil - 6"@10 mil - Data Matrix

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS9808
  • Product Name: Symbol DS9808 Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 8"
  • Width: 3.4"
  • Depth: 5.4"
  • Color: Twilight Black
  • Weight (Approximate): 12 oz

Interfaces/Ports

  • Host Interface: Serial

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS

Warranty

  • Limited Warranty: 3 Year
Part # Description Availability Price Order
11-115237-07R Symbol Twilight black wall mount bracket for DS9808 Ships Free Today $15.70
TSP-US-SC-3 Barcodes True Support Contract 3-year, $48 per year for 3 years, billed annually. True Support contract 3-year- Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading Ships Free Today $48.00
SSS-DS9208-30 Motorola Service Contract - 3 year, Zebra OneCare Select. Includes Comprehensive coverage. Check datasheet for regional availability. Ships Free Today $59.40

The Motorola DS9808-LR7NNR01AR is also known as SYM-DS9808LR7NNR01AR or DS9808LR7NNR01AR .
