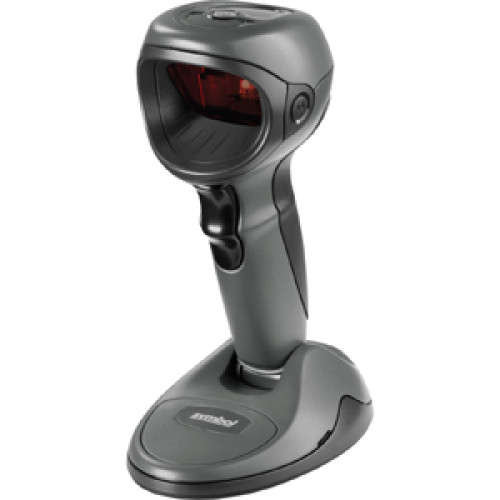

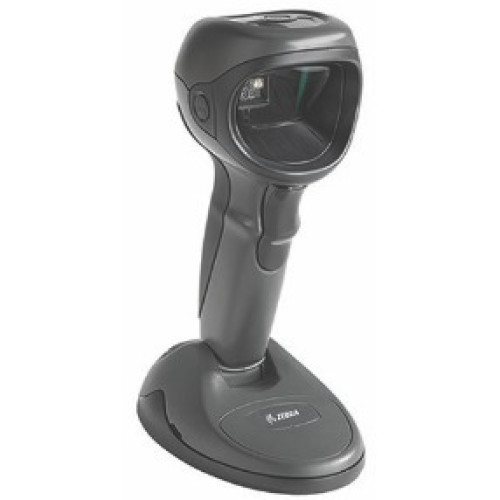

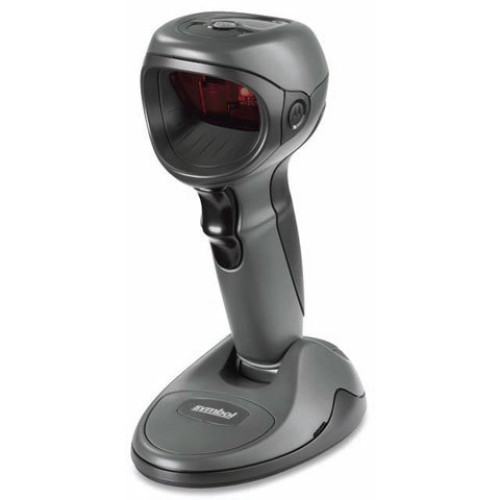

Motorola DS9808 Barcode Scanner
Part #: DS9808-SR00007NNWR | SKU: MOT69756

With the flexible Motorola DS9808, there is no need to purchase multiple devices to enable different types of data capture in your enterprise - no matter what applications you need now or in the future, the powerful comprehensive feature set will meet your needs. The DS9808 delivers the functionality of an image capture device, a barcode scanner, an EAS tag deactivator and an RFID reader all in a single device. Capital and operational costs are significantly reduced - there are fewer devices to purchase and manage, and compatibility with Remote Scanner Management (RSM) enables remote configuration, deployment and day-to-day management of the devices.

Motorola DS9808 Barcode Scanner

Part Details: Symbol DS9808, SCANNER ONLY, 2D Imager, Standard Range, No EAS. Color: Black. Cables sold separately. See accessories. For the full kit purchase (Part# DS9808-SR7NNU01ZR).

Additional Information

Color Black
Connectivity Corded
Form Factor Handheld
Included Cables Scanner Only - No Cable
Manufacturer Motorola
Model Name DS9808
Ruggedness General Purpose
Scan Pattern Area
Scanner Capability 2D
Scanner Type Imager

Technical Information

  • Barcode Dimension: 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Scanning Distance: 18"
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1-D / LINEarcodeS:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals)
    • ISBN (Bookland)
    • ISSN
    • Coupon Code
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 (and variants):
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2-D:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode, DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal:
    • U.S. Postnet and Planet
    • U.K. Post
    • Japan Post
    • Australian Post
    • Netherlands KIX Code
    • Royal Mail 4 State Customer
    • UPU FICS 4 State Postal
    • USPS 4CB
    • 1-D / LINEarcodeS:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals)
    • ISBN (Bookland)
    • ISSN
    • Coupon Code
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 (and variants):
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2-D:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode, DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal:
    • U.S. Postnet and Planet
    • U.K. Post
    • Japan Post
    • Australian Post
    • Netherlands KIX Code
    • Royal Mail 4 State Customer
    • UPU FICS 4 State Postal
    • USPS 4CB
  • Maximum Scan Resolution: 7.80 mil
  • Depth of Field:
    • 0 mil - 4.49"@5 mil - Code 39
    • 0 mil - 8.50"@10 mil - UPC/EAN
    • 0 mil - 10.51"@13 mil - UPC/EAN
    • 0 mil - 5"@6.60 mil - PDF417
    • 0 mil - 5.98"@10 mil - Datamatrix

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Name: Symbol DS9808SR Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 8"
  • Width: 5.4"
  • Depth: 3.4"
  • Color: Twilight Black
  • Weight (Approximate): 11.99 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Additional Information:
    • Supported Interface:
    • USB
    • RS-232
    • RS-485 (IBM 46xx Protocols)
    • KBW interface
