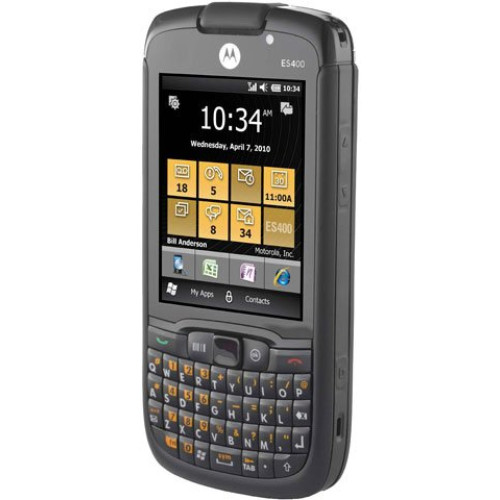

ES405B-0AF2 - Motorola ES 400 Hand Held Computer

The Motorola ES 400 is a size-optimized Enterprise Digital Assistant designed specifically for business use. Priced lower than competing EDAs and on par with smartphones, the ES 400 offers all the features expected in a robust business device, from a 3.5G world cell phone to the ability to access line of business applications; signature, photo, document and light bar code data capture; GPS; enterprise class security, manageability and support; and a three-year lifecycle. In addition, the ES 400 offers several industry firsts, such as dual userselectable WAN (GSM/CDMA) and a user-interface tailored to streamline the field workflow. All ES 400 units include the charging and communication cables and US power supply.

We respond to every email
Part # Description Availability Price Order
ES405B-0AF2 ES 400, Software Programmable WAN Radio (HSPA and EVDO), Wi-Fi, GPS, Bluetooth, 1D/2D Barcode decoding with 3.2MP Auto Focus Camera, 3.0" Color-touch display, AZERTY Keypad, Windows Mobile 6.5.3, 2x Battery, 256MB RAM/1GB ROM, French OS. Includes Charging/Communication Cable, USB cable, and US Power supply.
Information:   |  Specifications  |  Motorola's ES 400 page  |
Accessories:   |  Accessories/Options  |  Motorola ES 400 service contract  |

ES405B-0AF2 Details

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification:
    • 48"
    • 36" To Concrete @ 32°F (0°C) to 104°F (40°C)
  • Barcode Symbology Supported:
    • 1D
    • 2D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: ES400
  • Product Name: ES400 Enterprise Smartphone

Physical Characteristics

  • Width: 2.4"
  • Depth: 0.6"
  • Length: 5.1"
  • Weight (Approximate): 5.50 oz


  • USB: Yes


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • WEEE
    • RoHS
  • Package Contents:
    • ES400 Smartphone
    • Battery
    • Stylus
    • Keypad
    • Strap
    • ES400 Smartphone
    • Battery
    • Stylus
    • Keypad
    • Strap

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • GPS: Yes
  • Wireless Security:
    • WPA2 (Personal or Enterprise)
    • 802.1x
    • EAP-TLS
    • LEAP


  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Maximum Memory Card Size Supported: 32 GB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Display & Graphics

  • Screen Mode: VGA
  • Screen Size: 3"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Battery Information

  • Battery Capacity: 1540 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Resistive

Processor & Chipset

  • Processor Speed: 600 MHz
  • Processor Type: ARM11


  • Camera: Yes
  • Effective Camera Resolution: 3.2 Megapixel


  • Limited Warranty: 1 Year


  • Operating System: Windows Mobile 6.5.3 Professional


  • Keyboard Layout: AZERTY
