LS1203-1AZK0100SR - Motorola LS 1203 Bar code Scanner

The Motorola LS 1203 handheld scanner is designed to meet the needs of small retailers, delivering high quality laser scanning, user-friendly ergonomics and durability at an affordable price. From gift shops, boutiques, video and sporting goods stores to jewelers, florists and more, the LS 1203 delivers the features, functionality and reliability needed to improve operational efficiencies from the checkout line to the back room. Manual keying is minimized, customers are charged the correct amount and paper-based inventory processes are automated. The result is faster checkout, increased customer satisfaction, increased employee productivity and a rapid return on investment. The LS 1203 features a choice of USB, Keyboard Wedge and RS232 interface kits as well as scanner-only versions.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
LS1203-1AZK0100SR LS1203, PS/2 kit, 1D Laser. Includes PS/2 cable and stand. Color: White.
Ships Free in 3-5 Days
$106.80
Information:   |  Specifications  |  Motorola's LS 1203 page  |
Accessories:   |  Accessories/Options  |  Motorola LS 1203 service contract  |

LS1203-1AZK0100SR Details

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Bi-directional
  • Scan Rate: 100 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN Supplementals
    • UCC/EAN 128
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • IATA
    • RSS Variants
    • Chinese 2 of 5
    • UPC/EAN
    • UPC/EAN Supplementals
    • UCC/EAN 128
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • IATA
    • RSS Variants
    • Chinese 2 of 5
  • Depth of Field:
    • 0.25" - 5"@5 mil - Code 39
    • 0 mil - 7.75"@7.50 mil - Code 39
    • 0 mil - 8.50"@10 mil - Code 39
    • 0 mil - 8.50"@13 mil - 100% UPC
    • 0 mil - 10.25"@26 mil - 200% UPC

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS1203
  • Product Name: Symbol LS1203 Handheld BarCode Scanner
  • Product Line: Symbol

Physical Characteristics

  • Height: 2.4"
  • Width: 2.4"
  • Depth: 7.1"
  • Color: White
  • Weight (Approximate): 4.30 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Symbol LS1203 Barcode Reader
    • Keyboard Wedge Cable
    • Stand
    • Software CD
    • Symbol LS1203 Barcode Reader
    • Keyboard Wedge Cable
    • Stand
    • Software CD
  • Certifications & Standards:
    • Electrical Safety:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • Taiwan EMC
    • Japan VCCI/MITI/Dentori
    • Laser Safety:
    • IEC Class 1
    • RoHS Compliance
  • Additional Information:
    • Supported Interfaces:
    • SerialUSBKeyboard Wedge

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 5 V DC
Part # Description Availability Price Order
CBA-U01-S07ZAR Motorola Cable, USB Cable, 7 ft. (2m) Straight, Series A Connector. Ships Free Today $25.50
Retail $27

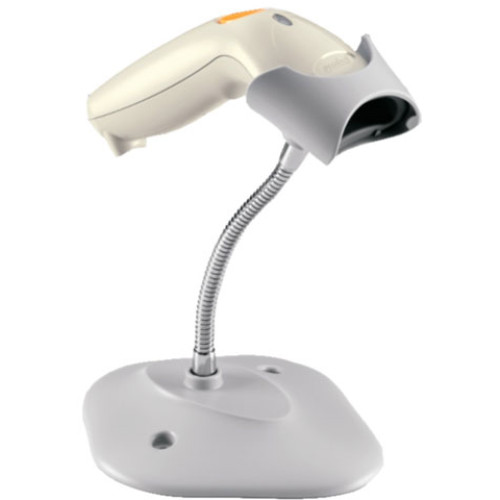

20-73951-01R Symbol Gooseneck stand, white, for the LS1203
Ships Free in 3-5 Days
$26.08
Retail $28
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
SSS-LS1203-30 Symbol Service Contract - 3 year, Zebra OneCare Select. Includes Comprehensive coverage. Check datasheet for regional availability.
Ships Free in 3-5 Days
$21.23

The Motorola LS1203-1AZK0100SR is also known as MOT-LS12031AZK0100SR or LS12031AZK0100SR .
