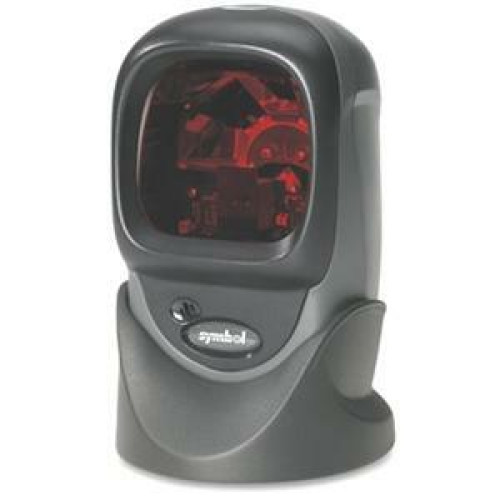

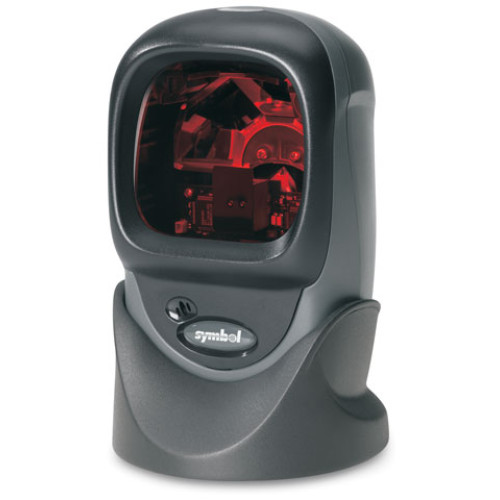

LS9203-7NNR0100DR - Motorola LS9203 Bar code Scanner

The Motorola LS9203 is designed to speed the checkout process for customers while improving sales tracking and inventory management. The LS9203's high-performance handheld and presentation scanning capability enables point-of-sale employees to work faster and more accurately. Twenty scan lines improve bar code reading time - no more stopping to turn an item to get the scan line to line up with the bar code. The LS9203 also offers several connection options, including USB, Serial (RS232) and keyboard wedge. With its sturdy construction and small size, the Motorola LS9203 is perfect for checkout applications. See the LS9208 Scanner for single line/omnidirectional scanning and EAS support.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
LS9203-7NNR0100DR LS9203, RS-232 kit: Scanner, stand, 110V US Power supply, 6 ft. RS-232 cable and product CD. Color: Twilight Black.
Information:   |  Specifications  |  Motorola's LS9203 page  |
Accessories:   |  Accessories/Options  |  Motorola LS9203 service contract  |

LS9203-7NNR0100DR Details

Technical Information

  • Scan Pattern: Omni-directional
  • Scan Rate: 1500 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN/JAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • Code 128
    • ISBT 128
    • Code 39
    • Trioptic Code 39
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Chinese 2 of 5
    • Code 93
    • Code 11
    • Codabar
    • MSI
    • RSS-14
    • RSS-Limited
    • RSS-Expanded
    • UPC/EAN/JAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • Code 128
    • ISBT 128
    • Code 39
    • Trioptic Code 39
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Chinese 2 of 5
    • Code 93
    • Code 11
    • Codabar
    • MSI
    • RSS-14
    • RSS-Limited
    • RSS-Expanded
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 1" - 2.50"@5 mil
    • 0 mil - 6"@7.80 mil
    • 0 mil - 7.50"@10.40 mil
    • 0 mil - 8.50"@13 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS9203
  • Product Name: Symbol LS 9203 Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 5.5"
  • Width: 3.5"
  • Depth: 3"
  • Color: Black
  • Weight (Approximate): 9.90 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Symbol LS9203 Barcode Reader
    • Stand
    • Product CD
    • 110 VAC Power Supply
    • RS-232 (7ft. Straight) Cable
    • Symbol LS9203 Barcode Reader
    • Stand
    • Product CD
    • 110 VAC Power Supply
    • RS-232 (7ft. Straight) Cable
  • Certifications & Standards:
    • RoHS Compliant
    • Electrical safety:
    • UL 1950
    • CSA C22.2 No. 950
    • Laser safety:
    • CDRH Class IIa
    • IEC 60825 Class 1
    • Class IIa
    • EMC:
    • CISPR B
    • FCC B
    • EN60825
  • Additional Information:
    • Supported Interfaces:
    • USB
    • Wand Emulation
    • Serial
    • Keyboard Wedge

Warranty

  • Limited Warranty: 2 Year

Power Description

  • Input Voltage: 5 V DC

The Motorola LS9203-7NNR0100DR is also known as SYM-LS92037NNR0100DR or LS92037NNR0100DR .
