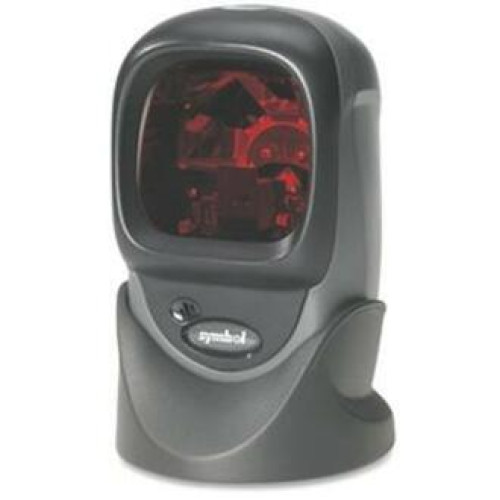

Motorola LS9203 Barcode Scanner
Part #: LS9203-SR10007NSWW | SKU: 16288

The Motorola LS9203 is designed to speed the checkout process for customers while improving sales tracking and inventory management. The LS9203's high-performance handheld and presentation scanning capability enables point-of-sale employees to work faster and more accurately. Twenty scan lines improve barcode reading time - no more stopping to turn an item to get the scan line to line up with the barcode. The LS9203 also offers several connection options, including USB, Serial (RS232) and keyboard wedge. With its sturdy construction and small size, the Motorola LS9203 is perfect for checkout applications. See the LS9208 Scanner for single line/omnidirectional scanning and EAS support.

Motorola LS9203 Barcode Scanner

Part Details: LS 9203, Includes stand and quick reference guide. Color: Twilight Black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).

Additional Information

Manufacturer No
Model Name LS9203

Technical Information

  • Scan Pattern: Omni-directional
  • Scan Rate: 1500 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN/JAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • Code 128
    • ISBT 128
    • Code 39
    • Trioptic Code 39
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Chinese 2 of 5
    • Code 93
    • Code 11
    • Codabar
    • MSI
    • RSS-14
    • RSS-Limited
    • RSS-Expanded
    • UPC/EAN/JAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • Code 128
    • ISBT 128
    • Code 39
    • Trioptic Code 39
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Chinese 2 of 5
    • Code 93
    • Code 11
    • Codabar
    • MSI
    • RSS-14
    • RSS-Limited
    • RSS-Expanded
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 1" - 2.50"@5 mil
    • 0 mil - 6"@7.80 mil
    • 0 mil - 7.50"@10.40 mil
    • 0 mil - 8.50"@13 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS9203
  • Product Name: Symbol LS 9203 Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 5.5"
  • Width: 3.5"
  • Depth: 3"
  • Color: Black
  • Weight (Approximate): 9.90 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Package Contents:
    • Symbol LS 9203 Barcode Reader
    • Quick Setup Guide
    • Stand
    • Symbol LS 9203 Barcode Reader
    • Quick Setup Guide
    • Stand
  • Certifications & Standards:
    • Electrical safety:
    • UL 1950
    • CSA C22.2 No. 950
    • Laser safety:
    • CDRH Class IIa
    • IEC 60825 Class 1
    • Class IIa
    • EMC:
    • CISPR B
    • FCC B
    • EN60825
  • Additional Information:
    • Supported Interfaces:
    • USB
    • Wand Emulation
    • Serial
    • Keyboard Wedge

Warranty

  • Limited Warranty: 2 Year

Power Description

  • Input Voltage: 5 V DC
