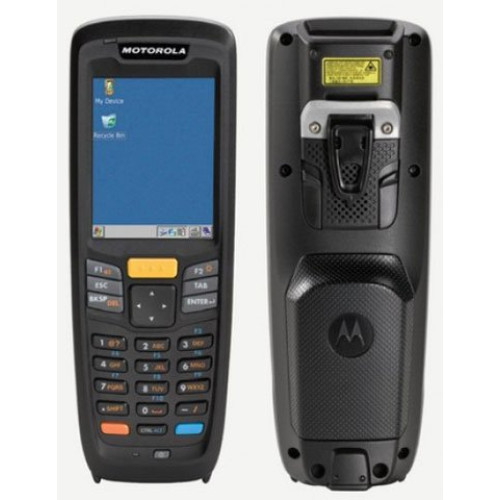

Motorola MC2180 Mobile Computer
Part #: MC2180-CS01E0A | SKU: MOT156394

With the value-priced MC2100, you get the features you need to get the job done. You can count on plenty of processing power, rugged design, superior ergonomics, flexible data capture options, enterprise-grade push-to-talk (PTT), plus centralized management.

Motorola MC2180 Mobile Computer

Part Details: MC2180, Wi-Fi (80211a/b/g/n), 1D Linear Imager Scanner, Windows CE 60, 128MB/256MB, 27 Key Keypad, Bluetooth, Color Touch QVGA Screen, 2400 mAh Battery . Interface Cables And Charging Cradle Sold Separately.

Additional Information

Keypad 27 Keys
Manufacturer Motorola
Model Name MC2180
Network Connectivity Wi-Fi 2: 802.11a, Wi-Fi 3: 802.11g, Wi-Fi 4: 802.11n, Bluetooth
Operating System Windows CE 6.0
RAM Memory 128 MB
Scanner Capability 1D
Scanner Type Imager
Style Basic

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Contact Discharge
  • Drop Specification:
    • 48" To Concrete @ 98.6°F (37°C)
    • 48" To Concrete
    • 36" To Concrete @ 14°F (-10°C) to 122°F (50°C)
  • Barcode Symbology Supported: 1D

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC2100
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC2180
  • Product Name: MC2180 Handheld Terminal

Physical Characteristics

  • Height: 6.8"
  • Width: 2.4"
  • Depth: 1.3"
  • Weight (Approximate): 8.32 oz

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11b/g/n
  • Wireless Security:
    • WPA
    • WPA2
    • EAP-TTLS/MSCHAPv2
    • EAPFAST (Cisco)
    • PEAPv0/EAP-MSCHAPv2
    • PEAPv1/EAP-GTC
    • EAP-TLS

Memory

  • Flash Memory: 256 MB
  • Standard Memory: 128 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • microSD Card
    • microSD High Capacity (microSDHC)

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 2.8"
  • Display Color: Color

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 2400 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Windows Embedded CE 6.0

Touchscreen Information

  • Touchscreen: Yes

Keyboard/Keypad

  • Keyboard Type: Numeric
Extended Details

Recommended Accessories for Model: Motorola MC2180 Mobile Computer

  • Zebra WT6300 Accessory
    Part #: CBL-DC-383A1-01 | SKU: ZEB463092

    DC CABLE FOR PWR-BUA5V16W0WW
    Price: $16.97
    In Stock
  • Motorola MC2100 Accessory
    Part #: CRD2100-1000UR | SKU: MOT156332

    MC2100 Single Slot USB Cradle. This Cradle Provides USB Communication With A Host Computer and Charges The MC2100 Series Mobile Computer. Requires (Part# Pwrs-14000-249r) Power supply, (Part# 25-128458-01r) USB Cable and (Part# 50-16000-182r) Two-Wire Ungrounded AC Power cord, All of Which Must Be Purchased Separately.
    Price: $119.22
    In Stock
  • Portsmith Cable Accessory
    Part #: 170574-000 | SKU: POR223575

    Cable (12 Inch, USB MICR-A Male to STD-B Male) for the MC2100 and MC9500
    Price: $14.46
  • Portsmith Cable Accessory
    Part #: 190087-004 | SKU: POR223577

    Cable (USB MICRO-B M to MINI-A M Cable)
    Price: $16.70
  • Zebra MC2100 Stylus
    Part #: STYLUS-00007-03R | SKU: ZEB206977

    Pick Stylus (3-Pack) for the MC21xx
    Price: $23.26

Recommended Warranties for Model: Motorola MC2180 Mobile Computer

  • Symbol Service Contracts Service Contract
    Part #: SSE-MC21XX-30 | SKU: SYM369515

    Service Contract - 3 year, Zebra OneCare Essential. Includes Comprehensive Coverage. Does not include coverage for cradles.
  • Symbol Service Contracts Service Contract
    Part #: SSE-MC21XX-50 | SKU: SYM369516

    Service Contract - 5 year, Zebra OneCare Essential. Includes Comprehensive Coverage. Does not include coverage for cradles.
  • Symbol Service Contracts Service Contract
    Part #: SSE-MC21XX-20-R | SKU: SYM369514

    Service Contract - 2 year, Zebra OneCare Essential Renewal. Includes Comprehensive Coverage. Does not include coverage for cradles. Can only be ordered ONCE after initial Zebra OneCare contract expires
  • Symbol Service Contracts Service Contract
    Part #: SSE-MC21XX-10-R | SKU: SYM369513

    Service Contract - 1 year, Zebra OneCare Essential Renewal. Includes Comprehensive Coverage. Does not include coverage for cradles.
  • Symbol Service Contracts Service Contract
    Part #: SCE-MC21XX-30 | SKU: SYM369384

    Service Contract - 3 year, Zebra OneCare Service Center Essential. Does not include Comprehensive Coverage. Does not include coverage for cradles.
