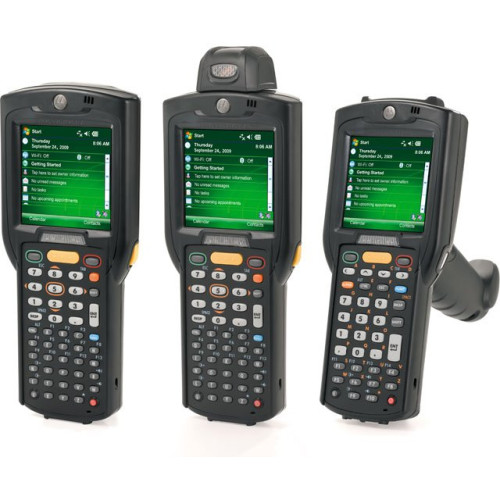

MC3100-RL2S04E00 - Motorola MC 3100 Series Hand Held Computer

Building on the successful MC3000, the new Motorola MC 3100 Series brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC 3100 Series offers advanced computing power and data capture capabilities, enhanced security and enterprise class motion sensing capabilities. MC3000 users will require virtually no training on the MC 3100 Series. Because the MC3000, MC 3100 Series and many other Motorola mobile computers share a common architectural platform, porting existing applications to the MC 3100 Series is fast and easy. And compatibility with existing MC3000 accessories provides a seamless upgrade path to the latest in mobile computing.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MC3100-RL2S04E00 MC3100 Wireless, Mobile Computer (Bluetooth, ROT, 1D, 28 key, 1X, CE6, 256MB/1GB)
Information:   |  Specifications  |  Motorola's MC 3100 Series page  |
Accessories:   |  Accessories/Options  |  Motorola MC 3100 Series service contract  |

MC3100-RL2S04E00 Details

Technical Information

  • Connectivity Technology: Batch
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification:
    • 48" To Concrete @ -4°F (-20°C) to 122°F (50°C)
    • 60" To Concrete
  • Barcode Symbology Supported: 1D

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC3100
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC3100
  • Product Name: MC3100 Handheld Terminal

Physical Characteristics

  • Width: 3.3"
  • Depth: 1.6"
  • Length: 8.6"
  • Weight (Approximate): 13.52 oz

Network & Communication

  • Bluetooth: Yes
  • Antenna Form Factor: Internal
  • Wireless Security:
    • WPA2 (Personal or Enterprise)
    • 802.1x
    • EAP-TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAPv2)
    • TTLS PAP
    • TTLS MD5
    • PEAP TLS
    • PEAP (MSCHAPv2)
    • PEAP EAP-GTC
    • LEAP
    • EAP-FAST TLS
    • EAP-FAST (MS-CHAPv2)
    • EAP-FAST EAP-GTC

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • MultiMediaCard (MMC)
    • Secure Digital (SD) Card

Display & Graphics

  • Display Screen Type: LCD
  • Screen Size: 3"
  • Display Color: Color
  • Screen Resolution: 320 x 320

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 624 MHz
  • Processor Type: PXA320

Battery Information

  • Battery Capacity: 2740 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Windows CE 6.0

Touchscreen Information

  • Touchscreen: Yes

Keyboard/Keypad

  • Keyboard Type: Numeric

The Motorola MC3100-RL2S04E00 is also known as MOT-MC3100RL2S04E00 or MC3100RL2S04E00 .
