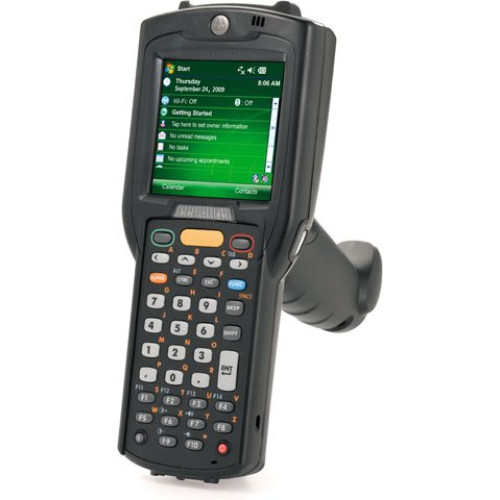

MC3190-GL2H04E0A - Motorola MC 3190 Hand Held Computer

Building on the successful MC3000, the new Motorola MC 3190 brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC 3190 offers wireless connectivity, advanced computing power and data capture capabilities, enhanced security and enterprise class motion sensing capabilities. MC3000 users will require virtually no training on the MC 3190. Because the MC3000, MC 3190 and many other Motorola mobile computers share a common architectural platform, porting existing applications to the MC 3190 is fast and easy. And compatibility with existing MC3000 accessories provides a seamless upgrade path to the latest in mobile computing.

Part # Description Availability Price Order
MC3190-GL2H04E0A MC3190-G, Wi-Fi (802.11a/b/g), 1D Laser Scanner, Windows CE 6.0 Pro, Gun-Grip, 256MB RAM/1GB ROM, 28 key Numeric Keypad, High Capacity Battery, Bluetooth, Full Audio, Color Touch Display, English. Interface cables and charging cradle sold separately. For the full kit see (Part# MC3190-GL2H04E0A-KIT).
Information:   |  Specifications  |  Motorola's MC 3190 page  |
Accessories:   |  Accessories/Options  |  Motorola MC 3190 service contract  |

MC3190-GL2H04E0A Details

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
    • +/-15 kV DC Air Discharge
  • Drop Specification:
    • 48" To Concrete @ -4°F (-20°C) to 122°F (50°C)
    • 60" To Concrete73.4°F (23°C)
  • Barcode Symbology Supported: 1D

General Information

  • Product Type: Handheld Terminal

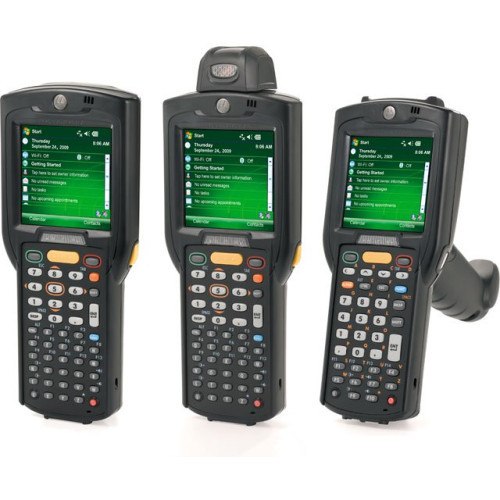

  • Product Series: MC3100
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC3190-G
  • Product Name: MC3190-G Handheld Terminal

Physical Characteristics

  • Height: 7.5"
  • Width: 3.2"
  • Depth: 6.5"
  • Weight (Approximate): 1.15 lb

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC3190 Handheld Terminal
    • Lithium-Ion Battery
    • MC3190 Handheld Terminal
    • Lithium-Ion Battery
  • Certifications & Standards:
    • IP54
    • EMI/RFI Radio Versions:
    • FCC Part 15
    • RSS210 Class B
    • EN 301 489-1
    • 489-17
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2No. 60950-1
    • EN60950-1/IEC 60950-1
    • WLAN and Bluetooth:
    • FCC Part 15.247
    • 15.407
    • RSS-210
    • EN 300 328
    • EN 301 893
    • ARIB STD-T33
    • T66
    • T70
    • T71
    • AS/NZS 4268s
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • 802.1x
    • TTLS
    • LEAP
    • EAP-TLS
    • PEAP
    • EAP-FAST

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • Secure Digital (SD) Card
    • MultiMediaCard (MMC)

Display & Graphics

  • Display Screen Type: LCD
  • Screen Size: 3"
  • Display Color: Color
  • Screen Resolution: 320 x 320

Battery Information

  • Battery Capacity: 4800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Keyboard/Keypad

  • Keyboard Type: Numeric
  • Number of Keys: 28

Software

  • Operating System: Windows CE 6.0 Professional

Warranty

  • Limited Warranty: 1 Year

Touchscreen Information

  • Touchscreen: Yes
Part # Description Availability Price Order
CRD3000-100RES Motorola Single Slot Serial/USB Cradle Kit (US).Kit includes: Single Slot Cradle (Part# CRD3000-1001RR), (Part# PWRS-14000-148R), and US AC Cord (Part# 23844-00-00R). Interface cables sold separately. Ships Free Today $147.08
Retail $218
Save 32%
25-68596-01R Symbol MC67 Accessories, USB Client Communication Cable. USB A to Mini B. Ships Free Today $17.00
BCISC-MC3190 BCI 3-Year Extended Warranty Plus, Rest easy with 3 years of technical support and quick replacements on your purchase. You get dedicated technical support specialists 8am-6pm CT, Monday-Friday and quick (3 business day turnaround) replacements for products damaged by regular use or accidental breakage. Ships Free Today $318.78

The Motorola MC3190-GL2H04E0A is also known as SYM-MC3190GL2H04E0A or MC3190GL2H04E0A .
