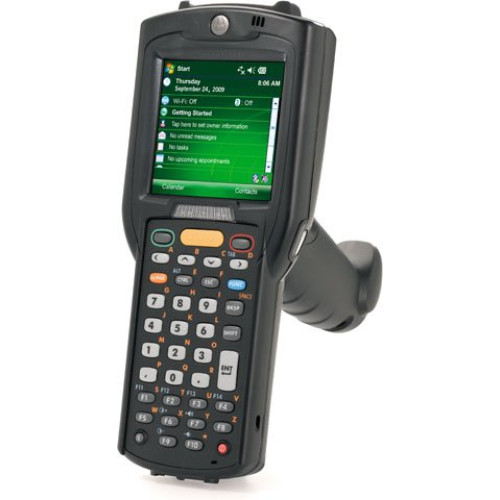

MC3190-GL4H04EAA - Motorola MC 3190 Hand Held Computer

Building on the successful MC3000, the new Motorola MC 3190 brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC 3190 offers wireless connectivity, advanced computing power and data capture capabilities, enhanced security and enterprise class motion sensing capabilities. MC3000 users will require virtually no training on the MC 3190. Because the MC3000, MC 3190 and many other Motorola mobile computers share a common architectural platform, porting existing applications to the MC 3190 is fast and easy. And compatibility with existing MC3000 accessories provides a seamless upgrade path to the latest in mobile computing.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MC3190-GL4H04EAA MC3190-G, Gun-Grip, Wi-Fi (802.11a/b/g), Bluetooth, Laser Scanner, Windows CE 6.0 Pro, 256MB/1GB ROM, 48 key, High Capacity Battery. Cables and Charging Cradle Not Included.
Information:   |  Specifications  |  Motorola's MC 3190 page  |
Accessories:   |  Accessories/Options  |  Motorola MC 3190 service contract  |

MC3190-GL4H04EAA Details

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 48" To Concrete
  • Barcode Symbology Supported: 1D

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC3100
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC3190-G
  • Product Name: MC3190-G Handheld Terminal

Physical Characteristics

  • Height: 7.5"
  • Width: 3.2"
  • Depth: 6.5"
  • Weight (Approximate): 1.15 lb

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC3190-G Handheld Terminal
    • Battery
    • Stylus
    • Strap
    • MC3190-G Handheld Terminal
    • Battery
    • Stylus
    • Strap
  • Certifications & Standards:
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2No. 60950-1
    • EN60950-1/IEC 60950-1
    • WLAN and Bluetooth:
    • USA: FCC Part 15.247 15.407
    • Canada: RSS-210
    • RF Exposure:
    • USA: FCC Part 2 FCC OET Bulletin 65 Supplement C
    • Canada: RSS-102
    • EMI/RFI Radio Versions:
    • USA: FCC Part 15
    • Canada: RSS210 Class B
    • EMI/RFI Batch Versions:
    • USA: FCC Part 15
    • Canada: ICES 003 Class B
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • 802.1x
    • EAP-TLS
    • TTLS
    • PEAP
    • LEAP
    • EAP-FAST
    • CCXv4 certified
    • Support for IPv6
    • FIPS140-2 Certified

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital (SD) Card

Display & Graphics

  • Display Screen Type: LCD
  • Screen Size: 3"
  • Display Color: Color
  • Screen Resolution: 320 x 320

Battery Information

  • Battery Capacity: 4800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 624 MHz
  • Processor Type: PXA320

Touchscreen Information

  • Touchscreen: Yes

Keyboard/Keypad

  • Number of Keys: 48

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows CE 6.0 Professional
Part # Description Availability Price Order
TSP-US-MC-3 BCI Service Contracts, True Support contract 3-year - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $60 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$60.00
SSE-MC31XX-30 Symbol Service Contract - 3 year, Zebra OneCare Essential. Includes Comprehensive coverage. Does not include coverage for cradles.
Ships Free in 3-5 Days
$245.16
Retail $318.78
Save 23%

The Motorola MC3190-GL4H04EAA is also known as MC3190-GL4H04EAA or MC3190GL4H04EAA .
