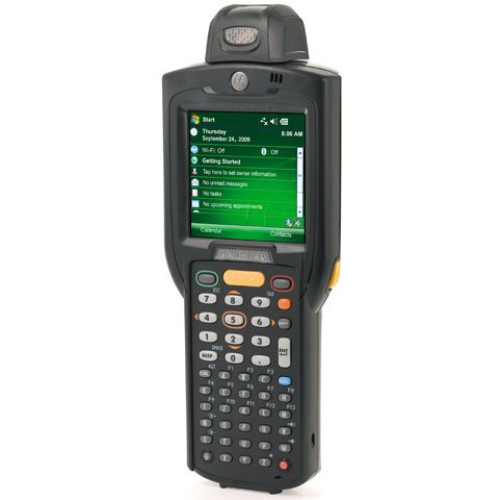

MC3190-RL3H04EIA - Motorola MC 3190 Hand Held Computer

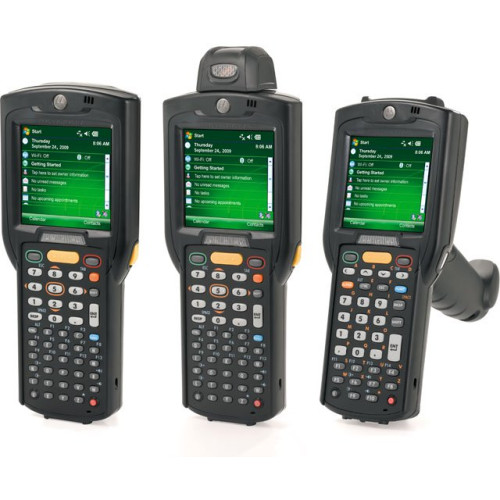

Building on the successful MC3000, the new Motorola MC 3190 brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC 3190 offers wireless connectivity, advanced computing power and data capture capabilities, enhanced security and enterprise class motion sensing capabilities. MC3000 users will require virtually no training on the MC 3190. Because the MC3000, MC 3190 and many other Motorola mobile computers share a common architectural platform, porting existing applications to the MC 3190 is fast and easy. And compatibility with existing MC3000 accessories provides a seamless upgrade path to the latest in mobile computing.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MC3190-RL3H04EIA MC3190-R, Rotating Head, 1D Laser Scanner, 38 key Alpha Shift Keypad, High Capacity Battery, Interactive Sensor Technology, Wi-Fi/Bluetooth, Full Audio, Color Touch Display, Windows CE 6.0 Pro, 256MB RAM/1GB ROM, English. Cables and charging cradles not included.
Information:   |  Specifications  |  Motorola's MC 3190 page  |
Accessories:   |  Accessories/Options  |  Motorola MC 3190 service contract  |

MC3190-RL3H04EIA Details

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 48" To Concrete @ -40°F (-40°C) to 122°F (50°C)
  • Barcode Symbology Supported: 1D

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC3100
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC3190
  • Product Name: MC3190 Handheld Terminal

Physical Characteristics

  • Height: 8.6"
  • Width: 3.3"
  • Depth: 1.6"
  • Weight (Approximate): 13.55 oz

Other

  • Package Contents:
    • MC3190 Handheld Terminal
    • Battery
    • Stylus
    • Keypad
    • Strap
    • MC3190 Handheld Terminal
    • Battery
    • Stylus
    • Keypad
    • Strap
  • Certifications & Standards:
    • IP54
    • CCXv4
    • FIPS140-2
    • MIL-STD 810G
    • Electrical Safety:
    • CSA C22.2No. 60950-1
    • EN60950-1/IEC 60950-1
    • WLAN and Bluetooth:
    • <p>USA:
    • FCC Part 15.247
    • 15.407
    • Canada:
    • RSS-210
    • EU:
    • EN 300 328
    • EN 301 893
    • Japan:
    • ARIB STD-T33
    • ARIB STD-T66
    • ARIB STD-T70
    • ARIB STD-T71
    • Australia:
    • AS/NZS 4268s
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • RSS-102
    • EN 62311
    • Radiocommunications Standard 2003
    • EMI/RFI Radio Versions:
    • FCC Part 15
    • RSS210 Class B
    • EN 301 489-1
    • EN 489-17
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2 (Personal or Enterprise)
    • 802.1x
    • EAP-TLS
    • TTLS (CHAP , MS-CHAP, MS-CHAPv2, PAP or MD5)
    • PEAP (TLS, MSCHAPv2, EAP-GTC)
    • LEAP
    • EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)
    • IPv6

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • Secure Digital (SD) Card
    • MultiMediaCard (MMC)

Display & Graphics

  • Display Screen Type: LCD
  • Screen Size: 3"
  • Display Color: Color
  • Screen Resolution: 320 x 320

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 2740 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Keyboard Type: Alpha
  • Number of Keys: 38

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows CE 6.0
Part # Description Availability Price Order
TSP-US-MC-3 BCI Service Contracts, True Support contract 3-year - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $60 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$60.00
SSE-MC31XX-30 Symbol Service Contract - 3 year, Zebra OneCare Essential. Includes Comprehensive coverage. Does not include coverage for cradles.
Ships Free in 3-5 Days
$245.16
Retail $318.78
Save 23%

The Motorola MC3190-RL3H04EIA is also known as MC3190-RL3H04EIA or MC3190RL3H04EIA .
