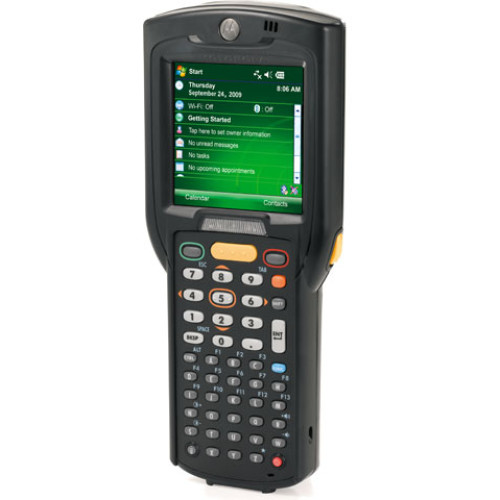

MC3190-SI4S04E0A - Motorola MC 3190 Hand Held Computer

Building on the successful MC3000, the new Motorola MC 3190 brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC 3190 offers wireless connectivity, advanced computing power and data capture capabilities, enhanced security and enterprise class motion sensing capabilities. MC3000 users will require virtually no training on the MC 3190. Because the MC3000, MC 3190 and many other Motorola mobile computers share a common architectural platform, porting existing applications to the MC 3190 is fast and easy. And compatibility with existing MC3000 accessories provides a seamless upgrade path to the latest in mobile computing.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MC3190-SI4S04E0A MC3190-S, Brick Straight Shooter, 2D Imager, 48 key Alphanumeric Keypad, Standard Capacity Battery, Wi-Fi/Bluetooth, Full Audio, Color Touch Display, Windows CE 6.0 Pro, 256MB RAM/1GB ROM, English. Cable and charging cradle not included.
Information:   |  Specifications  |  Motorola's MC 3190 page  |
Accessories:   |  Accessories/Options  |  Motorola MC 3190 service contract  |

MC3190-SI4S04E0A Details

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC3100
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC3190
  • Product Name: MC3190 Handheld Terminal

Technical Information

  • Connectivity Technology: Wireless
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 48" To Concrete

Physical Characteristics

  • Height: 7.5"
  • Width: 3.3"
  • Depth: 1.8"
  • Weight (Approximate): 14.96 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC3190 Handheld Terminal
    • High Capacity Battery
    • Stylus
    • Strap
    • MC3190 Handheld Terminal
    • High Capacity Battery
    • Stylus
    • Strap
  • Certifications & Standards:
    • IP54
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2No. 60950-1
    • EN60950-1/IEC 60950-1
    • WLAN and Bluetooth:
    • USA:
    • FCC Part 15.247
    • 15.407
    • Canada:
    • RSS-210
    • EU:
    • EN 300 328
    • EN 301 893
    • Japan:
    • ARIB STD-T33
    • T66
    • T70
    • T71
    • Australia:
    • AS/NZS 4268s
    • EMI/RFI Radio Versions:
    • USA:
    • FCC Part 15
    • Canada:
    • RSS210 Class B
    • EU:
    • EN 301 489-1
    • 489-17

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • 802.1x
    • EAP-TLS
    • TTLS
    • PEAP
    • LEAP
    • EAP-FAST
    • CCXv4 Certified
    • Support for IPv6
    • FIPS140-2 Certified

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • Secure Digital (SD) Card
    • MultiMediaCard (MMC)

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Display & Graphics

  • Screen Size: 3"
  • Display Color: Color
  • Screen Resolution: 320 x 320

Battery Information

  • Battery Capacity: 4800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 48

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows CE 6.0
Part # Description Availability Price Order
MC31XX-USB-STARTER Motorola MC31x0 Starter Kit. Includes Everything You Need to Run Your MC31x0: Charging/Communications Cradle, Interface Cable, US Power supply and AC Line Cord. Ships Free Today $165.15
CRD3000-101RES Motorola MC3000 Mobile Computer Accessories, Kit: MC3x: Cradle 1 Slot Kit Intl Ships Free Today $138.79
Retail $208
Save 33%
11-69293-01R Symbol Fabric holster for the MC3000/MC3100 series, secures to a belt and includes shoulder strap. For use with Rotating Head and Straight Shooter MC3100 variations, not Gun Grip style. Ships Free Today $48.11
TSP-US-MC-3 BCI Service Contracts, True Support contract 3-year - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $60 per year for 3 years, billed annually.
Ships Free in 24-48 Hours
$46.00
Retail $60
Save 23%
SSE-MC31XX-30 Symbol Service Contract - 3 year, Zebra OneCare Essential. Includes Comprehensive coverage. Does not include coverage for cradles.
Ships Free in 24-48 Hours
$245.16
Retail $318.78
Save 23%

The Motorola MC3190-SI4S04E0A is also known as MC3190-SI4S04E0A or MC3190SI4S04E0A .
