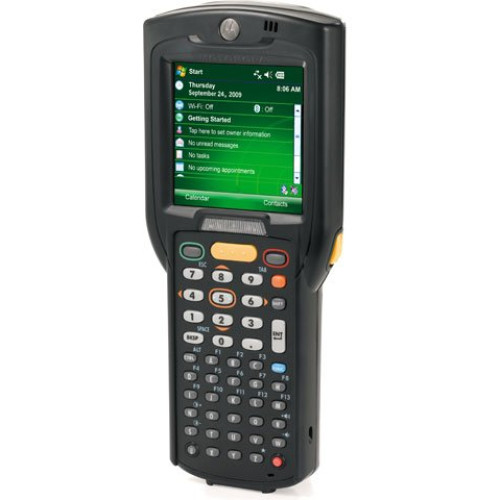

MC3190-SL2H04E0A - Motorola MC 3190 Hand Held Computer

Building on the successful MC3000, the new Motorola MC 3190 brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC 3190 offers wireless connectivity, advanced computing power and data capture capabilities, enhanced security and enterprise class motion sensing capabilities. MC3000 users will require virtually no training on the MC 3190. Because the MC3000, MC 3190 and many other Motorola mobile computers share a common architectural platform, porting existing applications to the MC 3190 is fast and easy. And compatibility with existing MC3000 accessories provides a seamless upgrade path to the latest in mobile computing.

We respond to every email
Part # Description Availability Price Order
MC3190-SL2H04E0A MC3190-S, Brick Straight Shooter, 1D Laser Scanner, 28 key Numeric Keypad, High Capacity Battery, Full Audio, Color Touch Display, Windows CE 6.0 Pro, 256MB RAM/1GB ROM, English. Cables and Charging Cradle Not Included. For the full kit see (Part# MC3190-SL2H04E0A-KIT).
Information:   |  Specifications  |  Motorola's MC 3190 page  |
Accessories:   |  Accessories/Options  |  Motorola MC 3190 service contract  |

MC3190-SL2H04E0A Details

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
    • +/-15 kV DC Air Discharge
  • Drop Specification:
    • 48" To Concrete @ -4°F (-20°C) to 122°F (50°C)
    • 60" To Concrete73.4°F (23°C)
  • Barcode Symbology Supported: 1D

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC3100
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC3190-S
  • Product Name: MC3190-S Handheld Terminal

Physical Characteristics

  • Height: 7.5"
  • Width: 3.3"
  • Depth: 1.8"
  • Weight (Approximate): 14.95 oz

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • 802.1x
    • EAP-TLS
    • TTLS
    • LEAP
    • PEAP
    • EAP-FAST


  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • MultiMediaCard (MMC)
    • Secure Digital (SD) Card

Display & Graphics

  • Display Screen Type: LCD
  • Screen Size: 3"
  • Display Color: Color
  • Screen Resolution: 320 x 320

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 4800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)


  • Operating System: Windows CE 6.0

Touchscreen Information

  • Touchscreen: Yes


  • Keyboard Type: Numeric
Part # Description Availability Price Order
MC31XX-USB-STARTER Motorola MC31x0 Starter Kit. Includes Everything You Need to Run Your MC31x0: Charging/Communications Cradle, Interface Cable, US Power supply and AC Line Cord. Ships Free Today $165.15
MC31XX-USB-STARTER Motorola MC31x0 Starter Kit. Includes Everything You Need to Run Your MC31x0: Charging/Communications Cradle, Interface Cable, US Power supply and AC Line Cord. Ships Free Today $165.15
CRD3000-101RES Motorola MC3000 Mobile Computer Accessories, Kit: MC3x: Cradle 1 Slot Kit Intl Ships Free Today $139.24
Retail $208
Save 33%
8710-050005-01R Symbol Plastic Holster for the MC3000/MC3100 series that secures to a belt. Ships Free Today $15.74
50-16000-182R Motorola AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies) Ships Free Today $12.88
25-68596-01R Symbol MC67 Accessories, USB Client Communication Cable. USB A to Mini B. Ships Free Today $17.00
TSP-US-MC-3 BCI Service Contracts, True Support contract 3-year - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $60 per year for 3 years, billed annually.
Ships Free in 3-5 Days
SSE-MC31XX-30 Symbol Service Contract - 3 year, Zebra OneCare Essential. Includes Comprehensive coverage. Does not include coverage for cradles.
Ships Free in 3-5 Days
Retail $318.78
Save 23%

The Motorola MC3190-SL2H04E0A is also known as MC3190-SL2H04E0A or MC3190SL2H04E0A .
