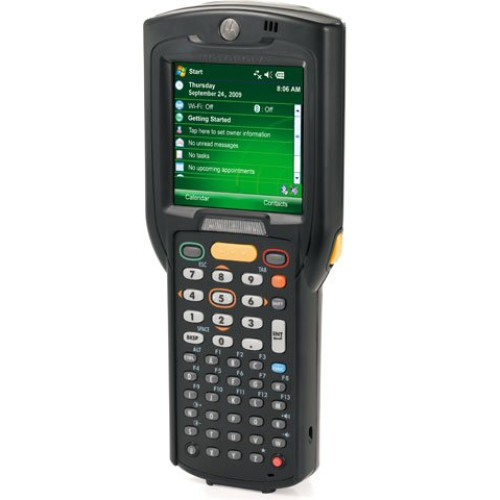

MC3190-SL4H04E0A - Motorola MC 3190 Hand Held Computer

Building on the successful MC3000, the new Motorola MC 3190 brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC 3190 offers wireless connectivity, advanced computing power and data capture capabilities, enhanced security and enterprise class motion sensing capabilities. MC3000 users will require virtually no training on the MC 3190. Because the MC3000, MC 3190 and many other Motorola mobile computers share a common architectural platform, porting existing applications to the MC 3190 is fast and easy. And compatibility with existing MC3000 accessories provides a seamless upgrade path to the latest in mobile computing.

Part # Description Availability Price Order
MC3190-SL4H04E0A MC3190-S, Brick Straight Shooter, 1D Laser Scanner, 48 key Alphanumeric Keypad, High Capacity Battery, Wi-Fi/Bluetooth, Full Audio, Color Touch Display, Windows CE 6.0 Pro, 256MB RAM/1GB ROM, English. Cables and Charging Cradle Not Included. For the full kit see (Part# MC3190-SL4H04E0A-KIT).
Information:   |  Specifications  |  Motorola's MC 3190 page  |
Accessories:   |  Accessories/Options  |  Motorola MC 3190 service contract  |

MC3190-SL4H04E0A Details

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-8 kV DC Indirect Discharge
    • +/-8 kV DC Direct Discharge
    • +/-15 kV DC Air Discharge
  • Drop Specification:
    • 60" To Concrete73.4°F (23°C)
    • 48" To Concrete @ -4°F (-20°C) to 122°F (50°C)

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC3100
  • Product Name: MC3190 Handheld Terminal

Physical Characteristics

  • Height: 7.5"
  • Width: 3.3"
  • Depth: 1.8"

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2 (Personal or Enterprise)
    • 802.1x
    • EAP-TLS
    • TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
    • LEAP
    • Support for IPv6
    • PEAP (TLS, MSCHAPv2, EAP-GTC)
    • EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)
    • CCXv4 certified
    • FIPS140-2 Certified

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • Secure Digital (SD) Card
    • MultiMediaCard (MMC)

Display & Graphics

  • Display Screen Type: LCD
  • Screen Size: 3"
  • Display Color: Color
  • Screen Resolution: 320 x 320

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 4800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Windows CE 6.0 Professional

Touchscreen Information

  • Touchscreen: Yes

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
Part # Description Availability Price Order
MC31XX-USB-STARTER Motorola MC31x0 Starter Kit. Includes Everything You Need to Run Your MC31x0: Charging/Communications Cradle, Interface Cable, US Power supply and AC Line Cord. Ships Free Today $164.08
CRD3000-101RES Motorola MC3000 Mobile Computer Accessories, Kit: MC3x: Cradle 1 Slot Kit Intl Ships Free Today $137.77
Retail $208
Save 33%
50-16000-182R Motorola AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies) Ships Free Today $12.84
TSP-US-MC-3 Barcodes True Support Contract 3-year, True Support contract 5-year - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $60 per year for 3 years, billed annually. Ships Free Today $60.00
SSE-MC31XX-30 Symbol Service Contract - 3 year, Zebra OneCare Essential. Includes Comprehensive coverage. Does not include coverage for cradles. Ships Free Today $245.81
Retail $318.78
Save 22%

The Motorola MC3190-SL4H04E0A is also known as MC3190-SL4H04E0A or MC3190SL4H04E0A .
