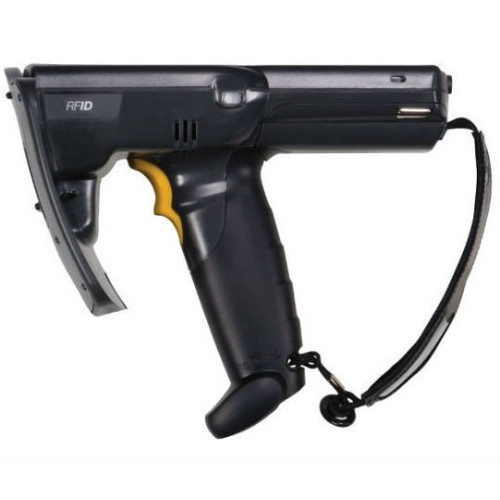

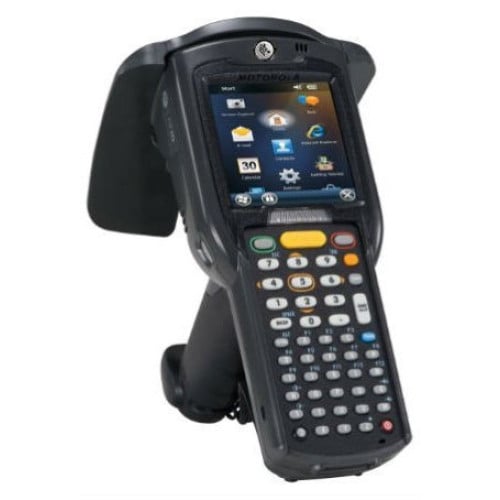

MC319Z-GI4H24E0E - Motorola MC 3190-Z RFID Reader

The Motorola MC 3190-Z is a new class of RFID reader bringing the benefits of RFID from industrial environments to the carpeted space. The MC 3190-Z features the ergonomics required for all day comfort and ease of use. At just half the weight of its industrial counterparts, the MC 3190-Z is the lightest UHF RFID rugged handheld reader on the market, offering a well-balanced design and a convenient gun-style grip for read intensive applications. The MC 3190-Z's advanced, high efficiency Motorola RFID reader engine enables faster read rates and higher throughput, making it an excellent addition to retail stores, enterprise office environments and other markets including healthcare.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MC319Z-GI4H24E0E MC3190-Z, Wi-Fi (802.11a/b/g), RFID Reader, UHF, Windows Mobile 6.5, 2D Imager Scanner, 256MB/1GB, 48-key Keypad, Bluetooth, 4800 mAh High Capacity Battery, European Version Only. Interface cables and charging cradle sold separately.
Ships Free in 3-5 Days
$2,768.15
Information:   |  Specifications  |  Motorola's MC 3190-Z page  |
Accessories:   |  Accessories/Options  |  Motorola MC 3190-Z service contract  |

MC319Z-GI4H24E0E Details

Technical Information

  • Scanner Range: Long Range
  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
    • +/-15 kV DC Air Discharge
  • Drop Specification: 47.24" To Concrete @ 14°F (-10°C) to 122°F (50°C)
  • Barcode Symbology Supported: 2D

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC3100
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC3190-Z
  • Product Name: MC3100 MC3190-Z Handheld Terminal

Physical Characteristics

  • Height: 7.6"
  • Width: 4.7"
  • Depth: 6.4"
  • Weight (Approximate): 1.43 lb

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2 (Personal or Enterprise)
    • 802.1x
    • EAP-TLS
    • TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
    • PEAP (TLS, MSCHAPv2, EAP-GTC)
    • LEAP, EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)
    • Support for IPv6

Display & Graphics

  • Backlight Technology: LED
  • Screen Mode: QVGA
  • Screen Size: 3"
  • Display Color: Color
  • Screen Resolution: 320 x 320

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 624 MHz
  • Processor Type: XScale

RFID

  • Maximum Operating Frequency: 868 MHz
  • Minimum Operating Frequency: 856 MHz

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB

Battery Information

  • Battery Capacity: 4400 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Keyboard Type: Alphanumeric

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 6.5

The Motorola MC319Z-GI4H24E0E is also known as MC319Z-GI4H24E0E or MC319ZGI4H24E0E .
