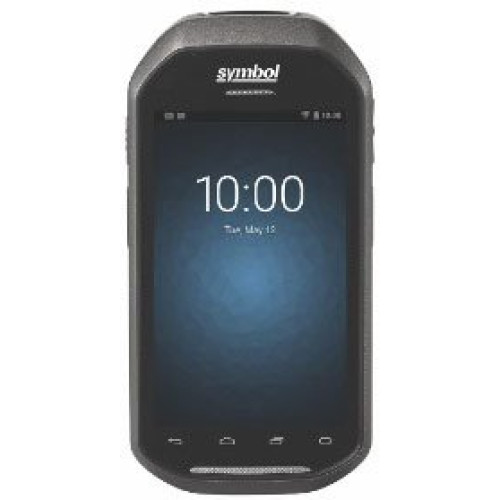

Photo of Motorola MC40N0-SCG3R00
Watch Product Video
View larger image Motorola logo

Motorola MC40

Wi-Fi (802.11a/b/g/n), 2D Imager, Camera, Full VGA Display, Android 2.3 Gingerbread, 1GB RAM/8GB Flash, Standard Battery, Color: Silver. Interface cables and charging cradle sold separately.

Hand Held Computer
This part is replaced by MC40N0-SCJ3R00.
Call for Details



Motorola MC40 Hand Held Computer

With this sleek customizable device, your associates have everything they need to serve your customers right at their fingertips. They can scan an item bar code to look up price, inventory availability or item location. Associates can also ring up the sale, look up product information or a gift registry, present a comparison of multiple products, call others in the store for help with a question, and even complete a loyalty card application anywhere in your store, without ever leaving the customer. Technology with an impressive look that can be customized in almost limitless ways becomes an extension of your brand, plus customers can readily identify your associates on the sales floor.

Full specifications (PDF)

Manufacturer part number: MC40N0-SCG3R00

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-2 kV DC Indirect Discharge
  • Drop Specification:
    • 48" To Plywood
    • 36" To Tile Over Concrete
  • Barcode Symbology Supported:
    • 1D
    • 2D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC40
  • Product Name: MC40 Handheld Mobile Computer

Physical Characteristics

  • Height: 5.7"
  • Width: 2.9"
  • Depth: 0.8"
  • Weight (Approximate): 9.09 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC40 Handheld Mobile Computer
    • Battery Lithium-Ion
    • MC40 Handheld Mobile Computer
    • Battery Lithium-Ion
  • Certifications & Standards:
    • WLAN:
    • EN 300 328
    • EN 301 893
    • FCC Part 15.247
    • 15.407
    • RSS-210
    • EMI/RFI:
    • EN 301 489-1
    • 17
    • EN 55022 (Class B)
    • EN 55024
    • EN 61000-3-2
    • EN 61000-3-3
    • IEC/EN 60601-1-2
    • 47 CFR Part 15
    • Subpart B
    • Class B
    • ICES 003 Issue 5
    • Class B
    • Electrical Safety:
    • UL 60950-1
    • EN 60950-1
    • IEC 60950-1
    • Others:
    • IP54

Network & Communication

  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g/n
  • Wireless Security:
    • Legacy
    • WPA and WPA2 Encryption
    • WEP (40 and 128 bit)
    • TKIP and AES Authentication
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (PAP)
    • PEAP (MS-CHAP v2)
    • PEAP (GTC)
    • FAST (MS-CHAP v2)
    • FAST (GTC)
    • LEAP

Display & Graphics

  • Screen Mode: VGA
  • Screen Size: 4.3"
  • Screen Resolution: 480 x 800

Battery Information

  • Battery Capacity: 2680 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Speed: 800 MHz
  • Processor Type: OMAP 4

Memory

  • Flash Memory: 8 GB
  • Standard Memory: 1 GB

Software

  • Operating System: Android 2.3 Gingerbread

Warranty

  • Limited Warranty: 1 Year

Touchscreen Information

  • Touchscreen: Yes
