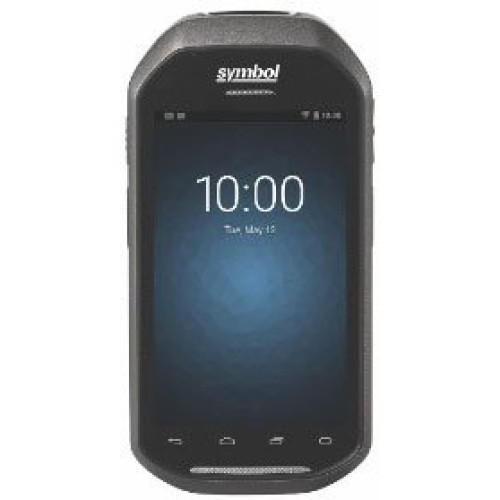

Motorola MC40 Mobile Computer
Part #: MC40N0-SCG3RM1 | SKU: MOT223395

When associates are not assisting customers, the MC40 can be used to execute the many tasks required to keep your store at its best for your customers, such as price audits, markups and markdowns or replenishing store shelves. And while the MC40 offers the cool customizable look you want on the outside, you get the durability, data security and centralized management needed to achieve a true enterprise class lifecycle and low total cost of ownership.

Motorola MC40 Mobile Computer

Part Details: MC40, 2D Imager, WiFi(802.11 a/b/g/n), Telephone Ready, Push-to-Talk, Camera, Magnetic Stripe Reader, VGA Display, Android 2.3, 1GB RAM/8GB Flash, Standard Battery, Color: Silver. Interface cables and charging cradle sold separately. Single slot charging cradle (Part# CRDMC40XX-1000R) requires power supply (Part# PWRWUA5V6W0WW) and USB communication cable (Part# 25-MCXUSB-01R). Five slot charging cradle (Part# CRDUNIV-40-5000R) requires power supply (Part# PWR-BGA12V50W0WW), DC line cord (Part# CBL-DC-388A1-01) and AC line cord (Part# 23844‐00‐00R).

Additional Information

Display Resolution 480 x 800
IP Rating IP54
Manufacturer Motorola
Model Name MC40
Network Connectivity Wi-Fi 2: 802.11a, Wi-Fi 3: 802.11g, Wi-Fi 4: 802.11n, Bluetooth
Operating System Android, Android 2.3
Operating Temperature 32 F - 122 F (0 C - 50 C)
Processor Texas Instruments OMAP4 (800 MHz)
Scanner Capability 1D, 2D
Scanner Type Imager
Style Phone-size

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-2 kV DC Indirect Discharge
  • Drop Specification:
    • 47.24"
    • 35.43" To Tile Over Concrete
  • Barcode Symbology Supported:
    • 1D
    • 2D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC40
  • Product Name: MC40 Handheld Mobile Computer

Physical Characteristics

  • Height: 5.7"
  • Width: 2.9"
  • Depth: 1.3"
  • Weight (Approximate): 9.39 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC40 Handheld Mobile Computer
    • Battery
    • MC40 Handheld Mobile Computer
    • Battery
  • Certifications & Standards:
    • IP 54
    • MIL-STD 810G
    • WLAN:
    • EN 300 328
    • EN 301 893
    • FCC Part 15.247, 15.407
    • RSS-210
    • Laser Safety:
    • EN 60825-1
    • IEC 60825-1
    • 21CFR1040.10
    • IEC/EN 62471
    • EMI/RFI:
    • EN 301 489-1, 17
    • EN 55022 (Class B)
    • EN 55024
    • EN 61000-3-2
    • EN 61000-3-3
    • IEC/EN 60601-1-2
    • 47 CFR Part 15, Subpart B, Class B
    • ICES 003 Issue 5, Class B
    • Electrical Safety:
    • UL 60950-1
    • EN 60950-1
    • IEC 60950-1
    • CAN/CSA-C22.2 No. 60950-1-07
    • RF Exposure:
    • EN 50360
    • EN 62479
    • EN 62311
    • FCC 47CFR Part 2
    • OET Bulletin 65c
    • RSS 102 Issue 4

Network & Communication

  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g/n
  • GPS: Yes
  • Wireless Security:
    • WPA
    • WPA2
    • WEP (40 and 128 Bit)
    • TKIP
    • AES
    • TL S
    • TTL S (MS-CHAP)
    • TTL S (MSCHAP v2)
    • TTL S (PAP)
    • PE AP (MS-CHAP v2)
    • PE AP (GTC)
    • FAST (MS-CHAP v2)
    • FAST (GTC)
    • LE AP.

Display & Graphics

  • Screen Mode: WVGA
  • Screen Size: 4.3"
  • Display Color: Color
  • Screen Resolution: 480 x 800

Battery Information

  • Battery Capacity: 2680 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Speed: 800 MHz
  • Processor Type: OMAP 4

Memory

  • Flash Memory: 8 GB
  • Standard Memory: 1 GB

Software

  • Operating System: Android 2.3 Gingerbread

Warranty

  • Limited Warranty: 1 Year

Touchscreen Information

  • Touchscreen: Yes
Extended Details
