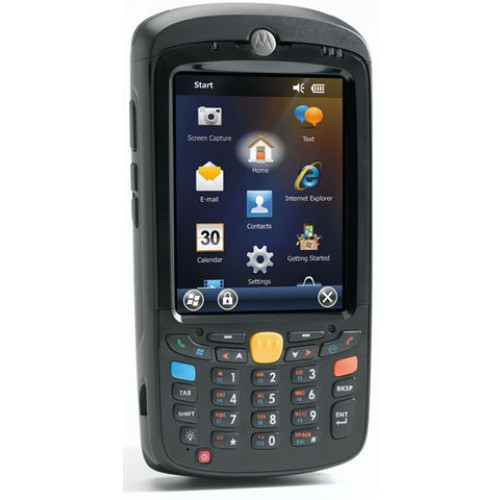

Motorola MC55A0 Mobile Computer
Part #: MC55A0-P20SWQQA7WR | SKU: MOT103327

When your managers and task workers are on the move inside your facility, the rugged Motorola MC55A0 mobile computer keeps everything they need to take instant action at their fingertips. Pure business on the inside and smart styling on the outside, the MC55A0 lets your workers access business applications, scan barcodes, snap a photo, view a video and place a private or push-to-talk call to virtually anyone in your facility - all with a single device. The sleek lightweight design is not only pocketable, it is at home in front of customers and patients. And with the most rugged design in this product class, your workers get a device they can count on every day - while you get a device you can count on for years.

Motorola MC55A0 Mobile Computer

Part Details: MC55A0, Wi-Fi (802.11a/b/g), Bluetooth, 1D Laser Scanner, Windows Mobile 6.5, QWERTY Keyboard, 256MB/1GB Flash, Standard Battery. Interface cables and charging cradle sold separately. Single slot charging cradle kit (Part# CRD5500-100UES). Four slot charging cradle kit (Part# CRD5501-401CES), requires US AC line cord (Part# 23844-00-00R).

Additional Information

Display Resolution 320 x 240
IP Rating IP64
Manufacturer Motorola
Model Name MC55A0
Network Connectivity Wi-Fi 2: 802.11a, Wi-Fi 3: 802.11g, Bluetooth
Operating System Windows Mobile 6.5
Operating Temperature 14 F - 122 F (-10 C - 50 C)
Processor Marvell PXA320 (806 MHz)
RAM Memory 256 MB
Scanner Capability 1D
Scanner Type Laser
Style Phone-size

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-8 kV DC Contact Discharge
    • +/-15 kV DC Air Discharge
  • Drop Specification: 72" To Concrete

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC55A0
  • Product Name: MC55A0 Handheld Terminal

Physical Characteristics

  • Height: 5.8"
  • Width: 3"
  • Depth: 1.1"
  • Weight (Approximate): 11.11 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: Korea Eco-Label
  • Package Contents:
    • MC55A0 Handheld Terminal
    • Battery
    • MC55A0 Handheld Terminal
    • Battery
  • Certifications & Standards:
    • Electrical Safety:
    • Certified to UL/cUL 60950-1, IE C/EN60950-1
    • WLAN and Bluetooth (PAN):
    • USA:FCC Part 15.247, 15.407
    • Canada:RSS-210, RSS 310
    • RF Exposure:
    • USA:FCC Part 2, FCC OET Bulletin 65, Supplement C
    • Canada: RSS-102
    • EMI/RFI:
    • North America: FCC Part 15, Class B
    • Canada: ICES 003 Class B
    • Laser Safety:
    • IE C/Class 2/FDA ll in accordance with IE C60825-1/EN 60825-1

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Network Band: Tri Band
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • WEP (40 or 128 bit)
    • TKIP
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS-MD5
    • TTLS-PAP
    • PEAP-TLS
    • PEAP (MS-CHAP v2)
    • AES
    • LEAP
    • CCXv4 certified
    • FIPS 140-2 certified

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color

Battery Information

  • Battery Capacity: 2400 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 12 Month

Software

  • Operating System: Windows Mobile 6.5 Classic

Keyboard/Keypad

  • Keyboard Layout: QWERTY
Extended Details
