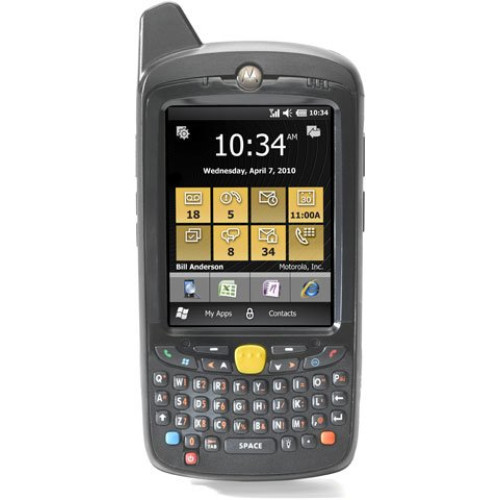

MC659B-PB0BAA00100 - Motorola MC65 Hand Held Computer

Give your mobile workers the tools they need to get the job done right""right now with the MC65. They will redefine productivity with the MC65 in hand""one of the toughest and most flexible mobile devices on the market.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MC659B-PB0BAA00100 MC 65, Wi-Fi (802.11a/b/g), 3G WWAN, HSDPA and CDMA, Bluetooth, 2D Imager Scanner, Windows Mobile 6.5, 256MB/1GB Flash, QWERTY keypad, GPS, 1.5x Extended Battery. Interface cables and charging cradle sold separately.
Information:   |  Specifications  |  Motorola's MC65 page  |
Accessories:   |  Accessories/Options  |  Motorola MC65 service contract  |

MC659B-PB0BAA00100 Details

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-8 kV DC Indirect Discharge
    • +/-8 kV DC Direct Discharge
    • +/-15 kV DC Air Discharge
  • Drop Specification: 60" To Concrete

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC65
  • Product Name: MC65 Handheld Terminal

Physical Characteristics

  • Height: 6.4"
  • Width: 3"
  • Depth: 1.3"
  • Weight (Approximate): 12.50 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Package Contents:
    • MC65 Handheld Terminal
    • Lithium-Ion Battery
    • MC65 Handheld Terminal
    • Lithium-Ion Battery
  • Certifications & Standards:
    • Wi-Fi
    • IP64
    • MIL-STD 810G
    • WLAN and Bluetooth (PAN):
    • FCC Part 15.247
    • FCC 15.407
    • RSS-210
    • EN 300 328
    • EN 301 893
    • ARIB STD-T33
    • ARIB STD-T66
    • ARIB STD-T71
    • ARIB STD-T70
    • AS/NZS 4268
    • Wireless WAN (GSM HSUPA/HSPA):
    • 3GPP TS 51.010
    • 3GPP TS 34.121
    • 3GPP TS 34.123
    • GCF and PTCRB approved
    • FCC Part 22
    • FCC Part 24
    • RSS-132
    • RSS-133
    • EN301 511
    • EN301 908
    • AS/ACIF S042.1 & 3
    • Wireless WAN (CDMA-EVDO Rev A):
    • FCC Part 22
    • FCC Part 24
    • RSS-132
    • RSS-133
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • RSS-102
    • EN 50360
    • EN 62311
    • Radio communications Standard 2003
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES 003 Class B
    • EN55022 Class B
    • EN 55024
    • EN 301 489-1
    • EN 301 489-3
    • EN 301 489-7
    • EN 301 489-17
    • EN 301 489-24
    • EN 60601-1-2
    • EN 50121-3-2
    • EN 50121-4
    • AS/NZS CISPRA-22
    • Laser Safety:
    • IEC Class2 / FDA Class II in accordance with IEC60825-1/EN60825-1
    • Electrical Safety:
    • IEC
    • UL
    • CSA
    • EN 60950-1

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: External
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Cellular Data Connectivity Technology:
    • EVDO
    • HSPA
  • Wireless Security:
    • WPA2 (Personal or Enterprise)
    • 802.1x
    • EAP-TLS
    • TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
    • PEAP (TLS, MSCHAPv2, EAP-GTC)
    • EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)
    • LEAP

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Qualcomm
  • Processor Speed: 600 MHz

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Mobile 6.5

Keyboard/Keypad

  • Keyboard Layout: QWERTY
Part # Description Availability Price Order
SG-MC5521110-01R Motorola MC67 Accessories, MC55 Soft Case Holster With Plastic Belt Clip Ships Free Today $24.35
MC65-USB-STARTER Motorola MC65 Starter Kit. Includes Everything You Need to Run Your MC65: Charging/Communications Cradle, Interface Cable, US Power supply and AC Line Cord. Ships Free Today $149.19
BTRY-MC55EAB02 Motorola Spare Battery, Extended-Capacity (3600MAH), for MC55/MC65/MC67. Ships Free Today $53.06
Retail $75
Save 29%
TSP-US-MC-3 BCI Service Contracts, True Support contract 3-year - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $60 per year for 3 years, billed annually.
Ships Free in 24-48 Hours
$46.00
Retail $60
Save 23%
SSE-MC65XX-30 Motorola Service Contract - 3 year, Zebra OneCare Essential. Includes Comprehensive coverage. Does not include coverage for cradles.
Ships Free in 24-48 Hours
$313.09

The Motorola MC659B-PB0BAA00100 is also known as SYM-MC659BPB0BAA0010 or MC659BPB0BAA00100 .
