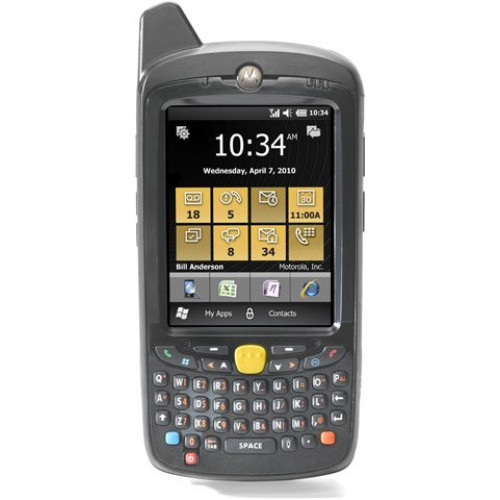

MC659B-PB0BAA00200 - Motorola MC65 Hand Held Computer

Give your mobile workers the tools they need to get the job done right""right now with the MC65. They will redefine productivity with the MC65 in hand""one of the toughest and most flexible mobile devices on the market.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MC659B-PB0BAA00200 MC65, Wi-Fi (802.11a/b/g), 2D Imager Scanner, 3G WWAN, HSDPA, CDMA, Windows Mobile 6.5, GPS, 512MB RAM/1GB Flash, QWERTY Keypad, Bluetooth, Extended Battery. Interface cables and charging cradle sold separately.
Information:   |  Specifications  |  Motorola's MC65 page  |
Accessories:   |  Accessories/Options  |  Motorola MC65 service contract  |

MC659B-PB0BAA00200 Details

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 60" To Concrete
  • Barcode Symbology Supported: 2D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC65
  • Product Name: MC65 Handheld Terminal

Physical Characteristics

  • Height: 6.4"
  • Width: 3"
  • Depth: 1.3"
  • Weight (Approximate): 12.66 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Package Contents:
    • MC65 Handheld Terminal
    • Lithium Ion Battery
    • Stylus
    • Screen Protector
    • Hand Strap
    • Battery Door
    • MC65 Handheld Terminal
    • Lithium Ion Battery
    • Stylus
    • Screen Protector
    • Hand Strap
    • Battery Door
  • Certifications & Standards:
    • WiFi Certified
    • IP64
    • WLAN and Bluetooth (PAN):
    • FCC Part 15.247
    • FCC 15.407
    • RSS-210
    • EN 300 328
    • EN 301 893
    • ARIB STD-T33
    • ARIB STD-T66
    • ARIB STD-T70
    • ARIB STD-T71
    • AS/NZS 4268
    • Wireless WAN (GSM HSUPA/HSPA):
    • 3GPP TS 51.010
    • 3GPP TS 34.121
    • 3GPP TS 34.123
    • GCF and PTCRB approved
    • FCC Part 22
    • FCC Part 24
    • RSS-132
    • RSS-133
    • EN301 511
    • EN301 908
    • AS/ACIF S042.1 & 3
    • Wireless WAN (CDMA-EVDO Rev A):
    • FCC Part 22
    • FCC Part 24
    • RSS-132
    • RSS-133
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • RSS-102
    • EN 50360
    • EN 62311
    • Radio communications Standard 2003
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES 003 Class B
    • EN55022 Class B
    • EN 55024
    • EN 301 489-1
    • EN 301 489-3
    • EN 301 489-7
    • EN 301 489-17
    • EN 301 489-24
    • EN 60601-1-2
    • EN 50121-3-2
    • EN 50121-4
    • AS/NZS CISPRA-22
    • Laser Safety:
    • IEC Class2 / FDA Class II in accordance with IEC60825-1/EN60825-1

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: External
  • Cellular Network Supported: CDMA
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • GPS: Yes
  • Cellular Data Connectivity Technology: HSDPA
  • Wireless Security:
    • WPA2 (Personal or Enterprise)
    • 802.1x
    • EAP-TLS
    • TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
    • PEAP (TLS, MSCHAPv2, EAP-GTC)
    • LEAP
    • EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 512 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Qualcomm
  • Processor Speed: 600 MHz

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Mobile 6.5

Keyboard/Keypad

  • Keyboard Layout: QWERTY
Part # Description Availability Price Order
TSP-US-MC-3 BCI Service Contracts, True Support contract 3-year - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $60 per year for 3 years, billed annually.
Ships Free in 24-48 Hours
$60.00
SSE-MC65XX-30 Motorola Service Contract - 3 year, Zebra OneCare Essential. Includes Comprehensive coverage. Does not include coverage for cradles.
Ships Free in 24-48 Hours
$313.09

The Motorola MC659B-PB0BAA00200 is also known as MOT-MC659BPB0BAA0020 or MC659BPB0BAA00200 .
