Motorola MC 65

Dual-Radio WAN with HSPA and EVDO, Imager, Windows Mobile 6.5, 256MB/1GB Flash, 802.11a/b/g Wi-Fi, numeric keypad and 1.5x battery. Cables and charging cradle not included.

Hand Held Computer
This part is replaced by MC67NA-PBABAB00300.
Call for Details

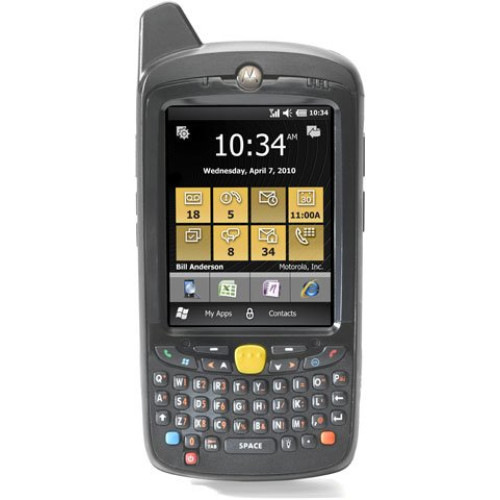

Motorola MC65 Hand Held Computer

The Motorola MC65 Enterprise Digital Assistant gives mobile workers the tools in hand to get the job done right, right now. As one of the toughest and most flexible EDAs on the market, the MC65 delivers desktop performance to provide instant access to the applications and information back in the office. Capture and process just about any type of data on-site, quickly and easily - from a single document to hundreds of barcodes, a library of photos or a signature. Activate and reactivate the MC65 on virtually any cellular network in the world, eliminating the need to purchase network technology (GSM or CDMA) specific devices, extending device lifecycle and ensuring that each and every worker has the best connection possible. Add a customizable user interface that makes doing business easier than ever and you have a real workforce multiplier - a device that turns paperwork and repeat visits into more tasks completed per day.

Full specifications (PDF)

Manufacturer part number: MC659B-PB0BAB00100

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete
  • Barcode Symbology Supported: 2D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC65
  • Product Name: MC65 Handheld Terminal

Physical Characteristics

  • Width: 3"
  • Depth: 1.3"
  • Length: 6.4"
  • Weight (Approximate): 12.66 oz

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: External
  • Cellular Network Supported:
    • GSM
    • CDMA
  • Network Band: Quad Band
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Cellular Data Connectivity Technology: EVDO
  • Wireless Security:
    • WPA2 (Personal or Enterprise)
    • 802.1x
    • EAP-TLS
    • TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
    • PEAP (TLS, MSCHAPv2, EAP-GTC)
    • LEAP
    • EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)

Display & Graphics

  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Qualcomm
  • Processor Speed: 600 MHz

Touchscreen Information

  • Touchscreen: Yes

Keyboard/Keypad

  • Keyboard Type: Numeric

Software

  • Operating System: Windows Mobile 6.5
