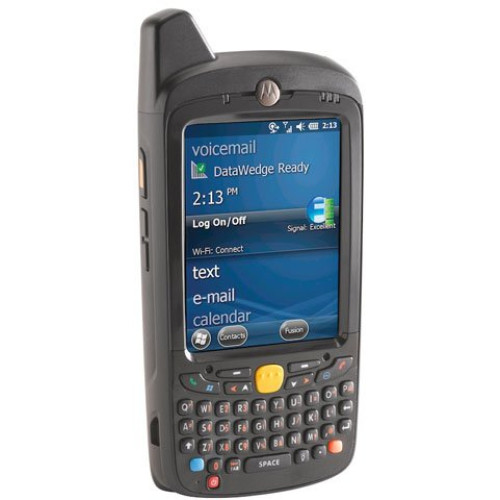

MC67NA-PBABAA00300 - Motorola MC 67 Hand Held Computer

The Motorola MC 67 features a 3G High-speed cellular and Wi-Fi wireless connection, 802.11 a/b/g/n connectivity, Bluetooth 2.1 EDR and best-in-class GPS brings your workers the best voice, data and peripheral connections available. The MC 67 is a rugged compact mobile computer that can withstand a drop on concrete, in water, the heat, cold, rain, snow and more. It also includes a high-resolution auto-focus 8 MP camera with external flash, support for RhoMobile applications, HTML5 browser-based, and OS-agnostic applications. The MC 67 also has Dual-Microphone Noise Cancellation technology so background noise is greatly reduced.

Part # Description Availability Price Order
MC67NA-PBABAA00300 MC 67, Wi-Fi (802.11a/b/g/n), 2D Imager, Windows Mobile 6.5, 4G WWAN HSPA+, GPS, 512MB/2GB, QWERTY Keypad, Bluetooth, 3600 mAh Extended Battery. Interface cables and charging cradle sold separately. Ships Free Today $1,548.45
Information:   |  Specifications  |  Motorola's MC 67 page  |
Accessories:   |  Accessories/Options  |  Motorola MC 67 service contract  |

MC67NA-PBABAA00300 Details

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification:
    • 94.49"
    • 70.87" @ -4°F (-20°C) to 122°F (50°C)

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC67
  • Product Name: MC67 Mobile Computer

Physical Characteristics

  • Width: 3"
  • Depth: 1.3"
  • Length: 6.4"
  • Weight (Approximate): 13.58 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • WEEE
    • RoHS
  • Package Contents:
    • MC67 Mobile Computer
    • Battery
    • MC67 Mobile Computer
    • Battery
  • Certifications & Standards:
    • MIL-STD 810G
    • IP65
    • IP67
    • Laser safety:
    • EN 60825-1
    • IEC 60825-1
    • IEC Class 2
    • FDA Class II
    • EMI/RFI:
    • FCC Part 15, Class B
    • ICES-003 Class B
    • EN55022 Class B
    • EN 55024
    • EN 301 489-1
    • EN 301 489-3
    • EN 301 489-7
    • EN 301 489-17
    • EN 301 489-24
    • EN 60601-1-2
    • EN 50121-3-2
    • EN 50121-4
    • AS/NZS CISPR 22
    • Electrical Safety:
    • IEC
    • UL
    • CSA
    • EN 60950-1
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • RSS-102
    • EN 50360
    • EN 62311
    • Radiocommunications Standard 2003
    • WLAN and Bluetooth (PAN):
    • FCC Part 15.247, 15.407
    • RSS-210
    • EN 300 328
    • EN 301 893
    • AS/NZS 4268
    • Wireless Wide Area Network:
    • 3GPP TS 51.010
    • 3GPP TS 34.121
    • 3GPP TS 34.123
    • GCF
    • PTCRB Approved
    • FCC Part 22, Part 24
    • RSS-132
    • RSS-133
    • EN301 511
    • EN301 908
    • AS/ACIF S042.1, 3 & 4

Network & Communication

  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g/n
  • Cellular Data Connectivity Technology: HSPA
  • Wireless Security:
    • WPA2 (Personal or Enterprise)
    • 802.1x
    • EAP-TL S
    • TTL S (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
    • PEAP (TL S, MSCHAPv2, EAP-GTC)
    • LEAP
    • EAP-FAST (TL S, MS-CHAPv2, EAP-GTC)

Display & Graphics

  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 2 GB
  • Standard Memory: 512 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Speed: 1 GHz
  • Processor Type: OMAP

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Microsoft Windows Embedded Handheld 6.5 Professional

Keyboard/Keypad

  • Keyboard Layout: QWERTY
Part # Description Availability Price Order
CRD5500-100UES Motorola MC67 Accessories, 1-Slot USB Cradle for MC55/MC65/MC67. Includes power supply (Part# PWRS-14000-148R) and US AC Line Cord (Part# 23844-00-00R). Requires USB cable (Part# 25-68596-01R). Ships Free Today $131.23
Retail $198
Save 33%
29651 BCI Cables, USB-1250 Cable (6 feet, USB 2.0, A to 5 Pin Mini B). Replaces ( (Part# USB-1250-06). Ships Free Today $13.44
Retail $17.99
Save 25%
BCISC-MC67 BCI 3-Year Extended Warranty Plus, Rest easy with 3 years of technical support and quick replacements on your purchase. You get dedicated technical support specialists 8am-6pm CT, Monday-Friday and quick (3 business day turnaround) replacements for products damaged by regular use or accidental breakage. Ships Free Today $328.90

The Motorola MC67NA-PBABAA00300 is also known as MOT-MC67NAPBABAA0030 or MC67NAPBABAA00300 .
