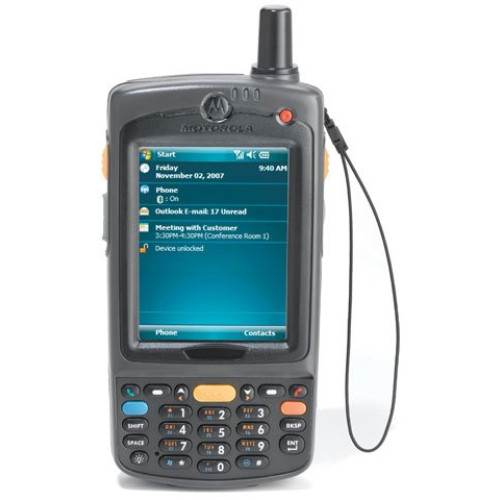

MC7596-PYCSUQWAAWR - Motorola MC 75 Hand Held Computer

The Motorola MC 75 redefines the standard for EDA mobile computers by packing an unprecedented number of enterprise-class features into a single device. The MC 75 includes a 3-G world cell phone, integrated GPS, walkie-talkie, 1D and 2D barcode scanner, 2 mega pixel auto focus camera with flash, mobile computer, and wireless LAN (WLAN), wireless PAN (WPAN) and IrDA connectivity. The robust bandwidth of 3-G combined with the latest mobile computing platform provides the MC 75 with the maximum processing power required to handle virtually any business application, maximizing workforce efficiency with simultaneous anywhere, anytime mobile voice and data.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MC7596-PYCSUQWAAWR MC 75, 96 Term Gps/WLAN HSDPA 1D-SE950 Lsr/Camera/QWERTY/Windows Mobile 6.1
Information:   |  Specifications  |  Motorola's MC 75 page  |
Accessories:   |  Accessories/Options  |  Motorola MC 75 service contract  |

MC7596-PYCSUQWAAWR Details

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification:
    • 48" To Concrete
    • 60" To Concrete73.4°F (23°C)

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC75
  • Product Name: MC75 Mobile Computer

Physical Characteristics

  • Width: 3.3"
  • Depth: 1.7"
  • Length: 6"
  • Weight (Approximate): 15.70 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC75 Mobile Computer
    • Battery
    • MC75 Mobile Computer
    • Battery
  • Certifications & Standards:
    • Sealing: IP54
    • EMC
    • EN 301 489-1
    • EN 301 489-7
    • EN 301 489-17
    • EN 301 489-19
    • IEC 60601-1-2
    • EN 55022
    • FCC Part 15 Class B
    • ICES 003 Class B
    • EN 55024
    • Electrical Safety:
    • EN 60950-1
    • IEC 60950-1
    • Certified to UL / cUL 60950-1
    • Laser Safety:
    • EN 60825-1
    • IEC 60825-1
    • IEC Class2/FDA Class II
    • RF Exposure:
    • USA: FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • Canada: RSS-102
    • EU:EN 50360
    • Australia: Radio communications Standard 2003
  • Additional Information:
    • Tumble Specification: 1,000 1.6 ft./.5 m tumbles (2,000 drops)
    • Region: World Wide
    • Camera: 2 Megapixel
    • Branding: Audio

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Cellular Network Supported: GSM
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • GPS: Yes
  • Cellular Data Connectivity Technology: HSDPA
  • Wireless Security:
    • WPA2
    • WEP (40 or 128 bit)
    • TKIP
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS-MD5
    • TTLS-PAP
    • PEAP-TLS
    • PEAP (MS-CHAP v2)
    • AES
    • LEAP

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 512 MB
  • Standard Memory: 128 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Battery Information

  • Battery Capacity: 4800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale PXA270

Keyboard/Keypad

  • Number of Keys: 44
  • Keyboard Layout: QWERTY

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Mobile 6.1 Professional Edition
Part # Description Availability Price Order
SG-MC7011110-02R Motorola Holster, Rigid (Hard Plastic), Includes Large Clip, Compatible with MC70 and MC75. Ships Free Today $24.35
MC75-USB-STARTER Motorola USB Starter Kit For The MC70/MC75 Series. Includes Everything You Need to Run Your MC70/75: Charging/Communications Cradle, USB Cable, US Power supply and AC Line Cord. Ships Free Today Call for Details
MC75-USB-STARTER Motorola USB Starter Kit For The MC70/MC75 Series. Includes Everything You Need to Run Your MC70/75: Charging/Communications Cradle, USB Cable, US Power supply and AC Line Cord. Ships Free Today Call for Details
MC75-USB-STARTER Motorola USB Starter Kit For The MC70/MC75 Series. Includes Everything You Need to Run Your MC70/75: Charging/Communications Cradle, USB Cable, US Power supply and AC Line Cord. Ships Free Today Call for Details
KT-70982-02R Motorola Pistol Grip (Snap-On) For The MC70/MC75 Series. Ships Free Today $107.38
Retail $150
Save 28%
TSP-US-MC-3 BCI Service Contracts, True Support contract 3-year - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $60 per year for 3 years, billed annually.
Ships Free in 24-48 Hours
$60.00
SSE-MC75XX-30 Symbol Service Contract - 3 year, Zebra OneCare Essential. Includes Comprehensive coverage. Does not include coverage for cradles. (To be used only for the MC75A8, MC75A0-HC, MC75A0 & MC75A configs)
Ships Free in 24-48 Hours
$338.83
Retail $440.60
Save 23%

The Motorola MC7596-PYCSUQWAAWR is also known as SYM-MC7596PYCSUQWAAW or MC7596PYCSUQWAAWR .
