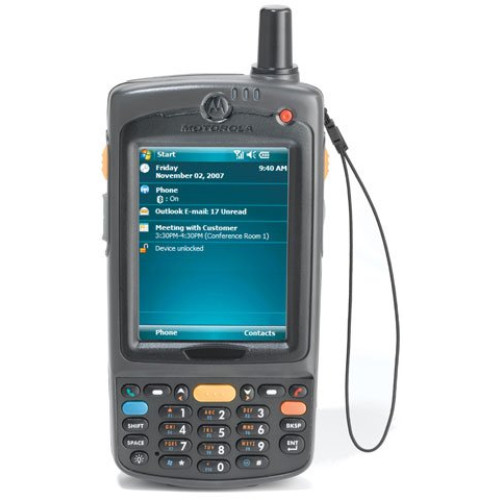

MC7596-PZCSKQWA9WR - Motorola MC 75 Hand Held Computer

The Motorola MC 75 redefines the standard for EDA mobile computers by packing an unprecedented number of enterprise-class features into a single device. The MC 75 includes a 3-G world cell phone, integrated GPS, walkie-talkie, 1D and 2D barcode scanner, 2 mega pixel auto focus camera with flash, mobile computer, and wireless LAN (WLAN), wireless PAN (WPAN) and IrDA connectivity. The robust bandwidth of 3-G combined with the latest mobile computing platform provides the MC 75 with the maximum processing power required to handle virtually any business application, maximizing workforce efficiency with simultaneous anywhere, anytime mobile voice and data.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MC7596-PZCSKQWA9WR MC 75, 96 Gps/Wlan/2D Imag Camera/128MB/256MB/Bluth/RoHS
Information:   |  Specifications  |  Motorola's MC 75 page  |
Accessories:   |  Accessories/Options  |  Motorola MC 75 service contract  |

MC7596-PZCSKQWA9WR Details

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification:
    • 60" To Concrete73.4°F (23°C)
    • 48" To Concrete

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC75
  • Product Name: MC75 Mobile Computer

Physical Characteristics

  • Width: 3.3"
  • Depth: 1.7"
  • Length: 6"
  • Weight (Approximate): 14.90 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC75 Mobile Computer
    • Lithium Ion Battery
    • MC75 Mobile Computer
    • Lithium Ion Battery
  • Certifications & Standards:
    • EMC
    • EN 301 489-1
    • EN 301 489-7
    • EN 301 489-17
    • EN 301 489-19
    • IEC 60601-1-2
    • EN 55022
    • FCC Part 15 Class B
    • ICES 003 Class B
    • EN 55024
    • Electrical Safety:
    • EN 60950-1
    • IEC 60950-1
    • Certified to UL / cUL 60950-1
    • Laser Safety:
    • EN 60825-1
    • IEC 60825-1
    • IEC Class2/FDA Class II
    • RF Exposure:
    • USA: FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • Canada: RSS-102
    • EU:EN 50360
    • Australia: Radio communications Standard 2003
  • Additional Information:
    • Serial Interface
    • USB Interface
    • 2 megapixel Camera
    • Sealing: IP54
    • Tumble Specification: 1,000 1.6 ft./.5 m tumbles (2,000 drops)
    • Form Factor : EDA

Network & Communication

  • Antenna Form Factor: Internal
  • Wireless Security:
    • WPA2
    • WEP 40 bit
    • WEP 128 bit
    • TKIP
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS-MD5
    • TTLS-PAP
    • PEAP-TLS
    • PEAP (MS-CHAP v2)
    • AES
    • LEAP

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 256 MB
  • Standard Memory: 128 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Number of Keys: 44
  • Keyboard Layout: QWERTY

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Mobile 6.0 Professional Edition
Part # Description Availability Price Order
MC75-USB-STARTER Motorola USB Starter Kit For The MC70/MC75 Series. Includes Everything You Need to Run Your MC70/75: Charging/Communications Cradle, USB Cable, US Power supply and AC Line Cord. Ships Free Today $162.38
HCH7033-CHG Global Technology Systems Charger-Cradle, 3 Cradle-3 Battery Charger (with Power supply Line Cord) for the MC70 and MC75 Ships Free Today $300.00
TSP-US-MC-3 BCI Service Contracts, True Support contract 3-year - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $60 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$60.00
SSE-MC75XX-30 Symbol Service Contract - 3 year, Zebra OneCare Essential. Includes Comprehensive coverage. Does not include coverage for cradles. (To be used only for the MC75A8, MC75A0-HC, MC75A0 & MC75A configs)
Ships Free in 3-5 Days
$338.83
Retail $440.60
Save 23%

The Motorola MC7596-PZCSKQWA9WR is also known as SYM-MC7596PZCSKQWA9R or MC7596PZCSKQWA9WR .
