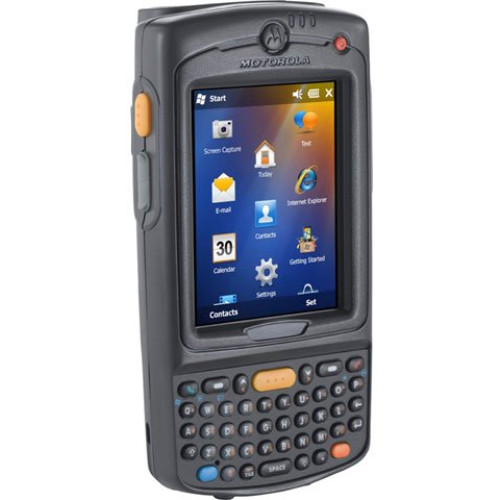

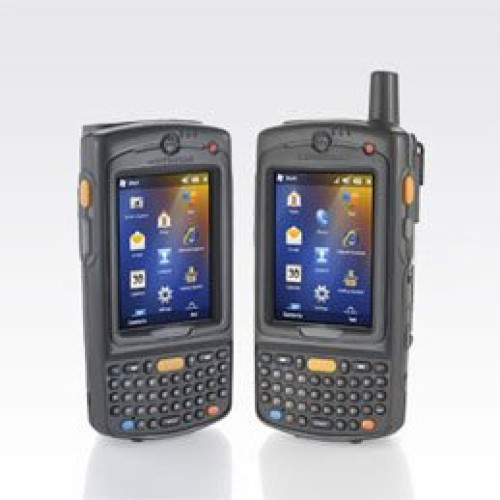

Motorola MC75A Mobile Computer
Part #: MC75A0-P10SWQQA9WR | SKU: MOT100826

The 3.5G Motorola MC75A, one of the world's premium EDAs, offers more features and functionality, in a field-proven rugged form factor, than any other device in its class. The turbocharged MC75A addresses business critical mobility needs by maximizing processing power, rugged design, application flexibility, data capture capabilities, connectivity options, security and manageability - all in one device. Two options (3.5G WWAN/WLAN and WLAN only) enable enterprises to standardize on a single EDA to support workers inside and outside the four walls. Add a field-proven ergonomic design that is easy-to-carry and easy to use, and you have maximum value in a minimum footprint, all at the right price.

Motorola MC75A Mobile Computer

Part Details: MC75A, Wi-Fi (802.11a/b/g), 2D DL Imager, Camera, 256MB/1GB, QWERTY Keypad, Windows Mobile 6.5, 1.5X BATTERY, Bluetooth. Interface cables and charging cradle sold separately.

Additional Information

Display Resolution 640 x 480
IP Rating IP54
Manufacturer Motorola
Model Name MC75A
Network Connectivity Wi-Fi 2: 802.11a, Wi-Fi 3: 802.11g, Bluetooth
Operating System Windows Mobile 6.5
Operating Temperature 14 F - 122 F (-10 C - 50 C)
Processor Marvell PXA320 (806 MHz)
RAM Memory 256 MB
Scanner Capability 2D
Scanner Type Imager
Style Phone-size

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-8 kV DC Direct Discharge
    • +/-15 kV DC Air Discharge
  • Drop Specification: 60" To Concrete

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC75
  • Product Name: MC75 Handheld Terminal

Physical Characteristics

  • Height: 6"
  • Width: 3.3"
  • Depth: 1.7"
  • Weight (Approximate): 14.92 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC75 Handheld Terminal
    • Lithium Ion Battery
    • MC75 Handheld Terminal
    • Lithium Ion Battery
  • Certifications & Standards:
    • IP54
    • Electrical Safety:
    • UL / cUL 60950-1
    • IEC / EN60950-1
    • WLAN and Bluetooth:
    • FCC Part 15.247
    • 15.407
    • Canada:
    • RSS-210
    • EU:
    • EN 300 328
    • EN 301 893
    • ARIB STD-T33
    • ARIB STD-T66
    • ARIB STD-T71
    • AS/NZS 4268
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • RSS-102
    • EU:
    • EN 50360
    • Radiocommunications Standard 2003
    • EMI/RFI:
    • FCC Part 15
    • Class B
    • ICES 003 Class B
    • EN55022 Class B
    • EN 301 489-1
    • EN 301 489-7
    • EN 301 489-17
    • EN 301 489-19
    • EN 301 489-24
    • EN 60601-1-2
    • AS/NZS CISPRA-22
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: External
  • Infrared: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • WEP (40 or 128 bit)
    • TKIP
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS-MD5
    • TTLS-PAP
    • PEAP-TLS
    • PEAP (MS-CHAP v2)
    • AES
    • LEAP

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD High Capacity (microSDHC)

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 12 Month

Software

  • Operating System: Windows Mobile 6.5

Keyboard/Keypad

  • Keyboard Layout: QWERTY
Extended Details
