Photo of Motorola MC75A0-PU0SWQQA7WR Motorola logo

Motorola MC 75A

MC75 Wireless Enterprise Digital Assistant (802.11a/B/G, 1D, 256MB/1GB, QWERTY, Windows Mobile 6.5, 1x)

Hand Held Computer
This part is replaced by MC55A0-P20SWQQA7WR.
Call for Details

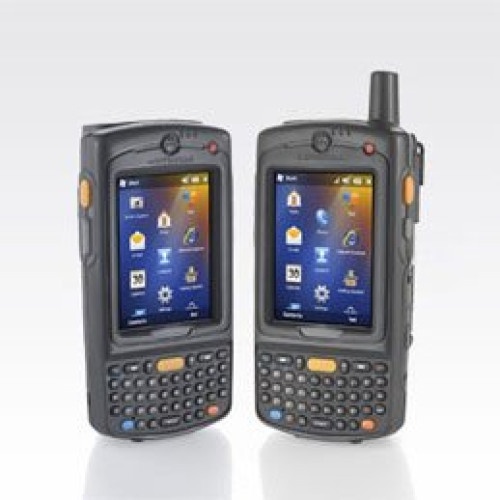

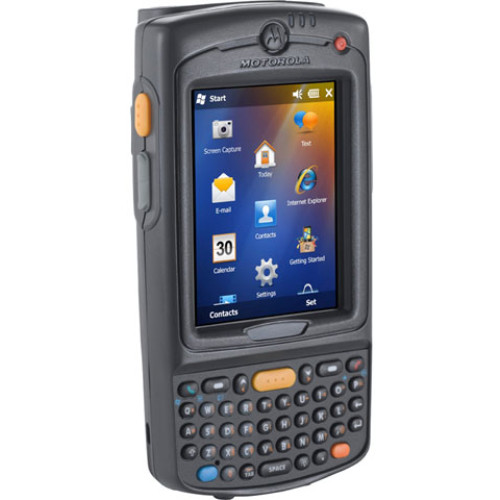

Motorola MC 75A Hand Held Computer

The 3.5G Motorola MC 75A, one of the world's premium EDAs, offers more features and functionality, in a field-proven rugged form factor, than any other device in its class. The turbocharged MC75A addresses business critical mobility needs by maximizing processing power, rugged design, application flexibility, data capture capabilities, connectivity options, security and manageability - all in one device. Two options (3.5G WWAN/WLAN and WLAN only) enable enterprises to standardize on a single EDA to support workers inside and outside the four walls. Add a field-proven ergonomic design that is easy-to-carry and easy to use, and you have maximum value in a minimum footprint, all at the right price.

Full specifications (PDF)

Manufacturer part number: MC75A0-PU0SWQQA7WR

Technical Information

  • Connectivity Technology: Wireless
  • Electrostatic Discharge (ESD):
    • +/-8 kV DC Direct Discharge
    • +/-15 kV DC Air Discharge
  • Drop Specification:
    • 48" To Concrete
    • 60" To Concrete

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC75A
  • Product Name: MC75A Handheld Terminal

Physical Characteristics

  • Height: 7"
  • Width: 3.3"
  • Depth: 1.7"
  • Weight (Approximate): 14.90 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC75A Handheld Terminal
    • Battery
    • MC75A Handheld Terminal
    • Battery
  • Certifications & Standards:
    • Environmental sealing:IP54
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES 003 Class B
    • EN301 489-3
    • EN301 489-7
    • EN55022 Class B
    • EN301 489-1
    • EN301 489-17
    • EN301 489-24
    • EN6060
    • AS/NZS CISPRA 2.2
    • Electrical Safety:
    • EN 60950-1
    • IEC 60950-1
    • Certified to UL / cUL 60950-1
    • Laser Safety:
    • EN 60825-1
    • IEC Class2/FDA Class II
    • IEC 60825-1
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65
    • Supplement C
    • RSS-102
    • EN 50380
    • Radio Communications Standard 2003

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Infrared: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • WEP (40 or 128 bit)
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS-MD5
    • TTLS-PAP
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • PEAP-TLS
    • PEAP (MS-CHAP v2)
    • AES
    • LEAP
    • CCX v4 Certified
    • FIPS 140-2 Certified

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD High Capacity (microSDHC)

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Speed: 806 MHz
  • Processor Type: XScale

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Mobile 6.5

Keyboard/Keypad

  • Keyboard Layout: QWERTY
