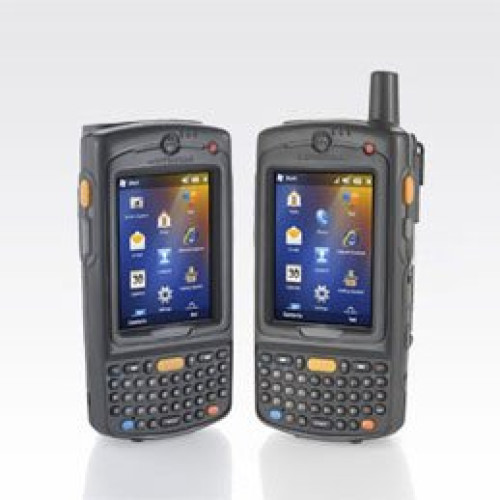

MC75A0-PY0SWRQA9WR - Motorola MC 75A Hand Held Computer

The 3.5G Motorola MC 75A, one of the world's premium EDAs, offers more features and functionality, in a field-proven rugged form factor, than any other device in its class. The turbocharged MC75A addresses business critical mobility needs by maximizing processing power, rugged design, application flexibility, data capture capabilities, connectivity options, security and manageability - all in one device. Two options (3.5G WWAN/WLAN and WLAN only) enable enterprises to standardize on a single EDA to support workers inside and outside the four walls. Add a field-proven ergonomic design that is easy-to-carry and easy to use, and you have maximum value in a minimum footprint, all at the right price.

Part # Description Availability Price Order
MC75A0-PY0SWRQA9WR MC 75A, Wi-Fi (802.11a/b/g), 1D Laser Scanner, Windows Mobile 6.5, Intel Xscale 806 MHz, 256MB/1GB, 3.5" VGA LCD, Numeric Keypad, Bluetooth, Infrared. Interface cables and charging cradle sold separately.
Information:   |  Specifications  |  Motorola's MC 75A page  |
Accessories:   |  Accessories/Options  |  Motorola MC 75A service contract  |

MC75A0-PY0SWRQA9WR Details

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-8 kV DC Direct Discharge
    • +/-15 kV DC Air Discharge
  • Drop Specification:
    • 60" To Concrete
    • 48" To Concrete @ 14°F (-10°C) to 122°F (50°C)

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC75A
  • Product Name: MC75A Handheld Terminal

Physical Characteristics

  • Height: 6"
  • Width: 3.3"
  • Depth: 1.7"
  • Weight (Approximate): 14.04 oz

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Infrared: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • WEP (40 or 128 bit)
    • TKIP
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS-MD5
    • TTLS-PAP
    • PEAP-TLS
    • PEAP (MS-CHAP v2)
    • AES
    • LEAP
    • CCXv4 certified; FIPS 140-2 certified

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 128 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • microSD Card
    • Secure Digital High Capacity (SDHC)

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Windows Mobile 6.5 Classic

Touchscreen Information

  • Touchscreen: Yes

Keyboard/Keypad

  • Keyboard Type: Numeric
Part # Description Availability Price Order
STYLUS-00002-03R Symbol Spring loaded stylus with teather for the MC70/MC75 series, (packet of 3). Ships Free Today $41.35
MDM9000-100R Symbol Modem Module for MC1000 Single Slot Cradle. Requires modem cable (Part# 25-63856-01R), not included. Ships Free Today $162.21
Retail $245
Save 33%
MC75-USB-STARTER Motorola USB Starter Kit For The MC70/MC75 Series. Includes Everything You Need to Run Your MC70/75: Charging/Communications Cradle, USB Cable, US Power supply and AC Line Cord. Ships Free Today Call for Details
KT-76490-01R Symbol Battery adapter (shim for 4 slot charge only, packet of 5) Ships Free Today $23.89
KT-105878-01R Motorola MC70/MC75 1.5x Battery Door and Strap. Extended battery sold separately (Part# BTRY-MC7XEAB00). Ships Free Today $24.25
BTRY-MC7XEAB00 Motorola Spare Battery, for use with MC70/MC75, 1.5X extended-capacity, Lithium-ion, 3600 mAh Ships Free Today $55.43
50-16000-182R Motorola AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies) Ships Free Today $12.84
25-68596-01R Symbol MC67 Accessories, USB Client Communication Cable. USB A to Mini B. Ships Free Today $17.00
25-63852-01R Symbol RS-232 Cable for cradle to the host system Ships Free Today $22.54
TSP-US-MC-3 Barcodes True Support Contract 3-year, True Support contract 5-year - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $60 per year for 3 years, billed annually. Ships Free Today $60.00
SSE-MC75XX-30 Symbol Service Contract - 3 year, Zebra OneCare Essential. Includes Comprehensive coverage. Does not include coverage for cradles. (To be used only for the MC75A8, MC75A0-HC, MC75A0 & MC75A configs) Ships Free Today $339.73
Retail $440.60
Save 22%

The Motorola MC75A0-PY0SWRQA9WR is also known as SYM-MC75A0PY0SWRQA9W or MC75A0PY0SWRQA9WR .
