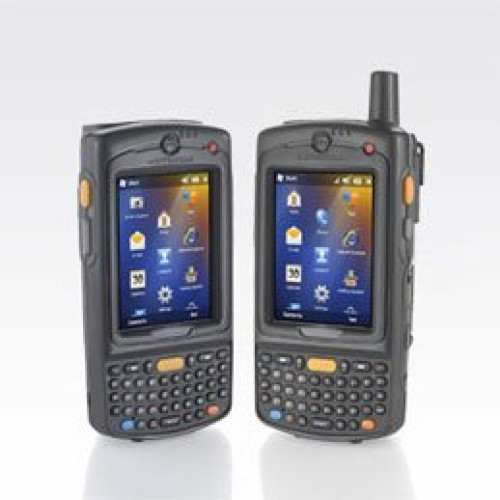

MC75A6-P4CSWQRA9WR - Motorola MC 75A Hand Held Computer

The 3.5G Motorola MC 75A, one of the world's premium EDAs, offers more features and functionality, in a field-proven rugged form factor, than any other device in its class. The turbocharged MC75A addresses business critical mobility needs by maximizing processing power, rugged design, application flexibility, data capture capabilities, connectivity options, security and manageability - all in one device. Two options (3.5G WWAN/WLAN and WLAN only) enable enterprises to standardize on a single EDA to support workers inside and outside the four walls. Add a field-proven ergonomic design that is easy-to-carry and easy to use, and you have maximum value in a minimum footprint, all at the right price.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MC75A6-P4CSWQRA9WR MC 75A, Mobile Computer - Intel Xscale 806 MHz - 256 Mb RAM - 1 Gb Flash - 3.5" VGA LCD - Bluetooth
Information:   |  Specifications  |  Motorola's MC 75A page  |
Accessories:   |  Accessories/Options  |  Motorola MC 75A service contract  |

MC75A6-P4CSWQRA9WR Details

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • 8 kV DC Direct Discharge
  • Drop Specification:
    • 48" To Concrete
    • 60" To Concrete

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC75A
  • Product Name: MC75A Mobile Computer

Physical Characteristics

  • Width: 3.3"
  • Depth: 1.7"
  • Length: 7"
  • Weight (Approximate): 14.90 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC75A Mobile Computer
    • Battery
    • MC75A Mobile Computer
    • Battery
  • Certifications & Standards:
    • Environmental sealing: IP54
    • Electrical Safety:
    • UL
    • cUL 60950-1
    • IEC
    • EN60950-1
    • WLAN and Bluetooth:
    • FCC Part 15.247 15.407
    • RSS-210
    • EN 300 328
    • EN 301 893
    • ARIB STD-T33
    • ARIB STD-T66
    • ARIB STD-T71
    • AS/NZS 4268
    • Quad Band GSM/ Global:
    • 3GPP TS 51.010
    • 3GPP TS 34.121
    • EDGE
    • HSDPA
    • FCC Part 22
    • FCC Part 24
    • RSS-132
    • RSS-133
    • EN301 511
    • EN301 908
    • AS/ACIF S042.1&3
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • RSS-102
    • EN 50360
    • Radiocommunications Standard 2003
    • EMI/RFI
    • FCC Part 15 Class B
    • ICES 003 Class B
    • EN55022 Class B
    • EN 301 489-1
    • EN 301 489-3
    • EN 301 489-7
    • EN 301 489-17
    • EN 301 489-24
    • EN 60601-1-2
    • AS/NZS CISPRA-22
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Cellular Network Supported: GSM
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Cellular Data Connectivity Technology: HSDPA
  • Wireless Security:
    • WPA2
    • WEP (40 or 128 bit)
    • TKIP
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS-MD5
    • TTLS-PAP
    • PEAP-TLS
    • PEAP (MS-CHAPv2)
    • AES
    • LEAP
    • CCX v4 Certified
    • FIPS 140-2 certified

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Mobile 6.5 Professional Edition

Keyboard/Keypad

  • Keyboard Layout: QWERTY
Part # Description Availability Price Order
STYLUS-00002-03R Symbol Spring loaded stylus with teather for the MC70/MC75 series, (packet of 3). Ships Free Today $41.58
MDM9000-100R Symbol Modem Module for MC1000 Single Slot Cradle. Requires modem cable (Part# 25-63856-01R), not included.
Ships Free in 24-48 Hours
$162.21
Retail $245
Save 33%
MC75-USB-STARTER Motorola USB Starter Kit For The MC70/MC75 Series. Includes Everything You Need to Run Your MC70/75: Charging/Communications Cradle, USB Cable, US Power supply and AC Line Cord. Ships Free Today Call for Details
KT-105878-01R Motorola MC70/MC75 1.5x Battery Door and Strap. Extended battery sold separately (Part# BTRY-MC7XEAB00). Ships Free Today $24.35
BTRY-MC7XEAB00 Motorola Spare Battery, for use with MC70/MC75, 1.5X extended-capacity, Lithium-ion, 3600 mAh Ships Free Today $55.93
Retail $80
Save 30%
50-16000-182R Motorola AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies) Ships Free Today $12.87
25-68596-01R Symbol MC67 Accessories, USB Client Communication Cable. USB A to Mini B. Ships Free Today $17.00
25-63852-01R Symbol RS-232 Cable for cradle to the host system Ships Free Today $22.63
TSP-US-MC-3 BCI Service Contracts, True Support contract 3-year - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $60 per year for 3 years, billed annually.
Ships Free in 24-48 Hours
$46.00
Retail $60
Save 23%
SSE-MC75XX-30 Symbol Service Contract - 3 year, Zebra OneCare Essential. Includes Comprehensive coverage. Does not include coverage for cradles. (To be used only for the MC75A8, MC75A0-HC, MC75A0 & MC75A configs)
Ships Free in 24-48 Hours
$338.83
Retail $440.60
Save 23%

The Motorola MC75A6-P4CSWQRA9WR is also known as SYM-MC75A6P4CSWQRA9W or MC75A6P4CSWQRA9WR .
