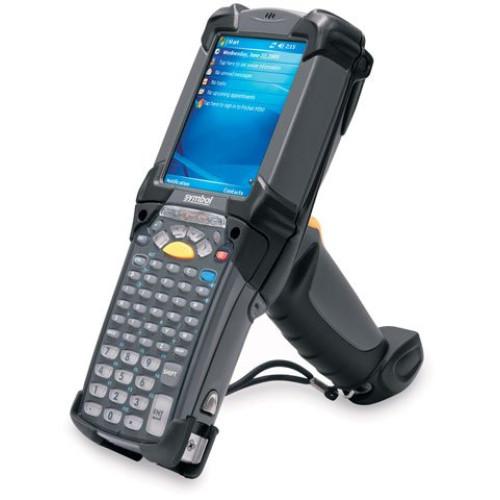

MC9090-GU0HJEQR7US - Motorola MC9090-G RFID Reader

The MC9090-G rugged mobile computer empowers mobile workers to capture and access critical business information in real time. The construction of the MC9090-G is designed to withstand rigorous use in extreme environments and a wide variety of working conditions, providing the flexibility to be used on the manufacturing floor, in the warehouse or on the sales floor of a retail operation. The MC9090-G with Bluetooth supports wireless printing and use of wireless headsets. Those with scan intensive applications such as price audits and inventory management will enjoy the comfort of the pistol grip handle. The MC9090-G gives users a choice of Windows Mobile 5.0 or Windows CE 5.0--allowing you to select either a familiar feature rich environment or a robust customizable application-specific environment. The ability to capture images as well as scan barcodes enables enterprises to deploy this single device in many business areas.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MC9090-GU0HJEQR7US MC9090-G RFID Handheld, UHF RFID, Wi-Fi (802.11a/b/g), 1D Laser Scanner, Windows Mobile 6.1, 64MB RAM/128MB ROM, 53 key, Bluetooth.
Information:   |  Specifications  |  Motorola's MC9090-G page  |
Accessories:   |  Accessories/Options  |  Motorola MC9090-G service contract  |

MC9090-GU0HJEQR7US Details

Technical Information

  • Connectivity Technology: Wireless
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9090-G
  • Product Name: MC9090-G Handheld Terminal

Physical Characteristics

  • Height: 10.8"
  • Width: 4.7"
  • Depth: 7.7"

Other

  • Certifications & Standards:
    • IP64
    • Electrical Safety:
    • UL60950-1
    • CSA C22.2 No.60950-1
    • IEC 60950-1
    • EMI/RFI Radio Versions:
    • US:
    • FCC Part 2 (SAR)
    • FCC Part 15
    • RSS210
    • Europe:
    • ETSI EN 300 220
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

RFID

  • Maximum Read Distance: 10 ft
  • Maximum Write Distance: 23.98"
  • Maximum Coverage Angle: 70°
  • Maximum Operating Frequency: 928 MHz
  • Minimum Read Distance: 2.40"
  • Minimum Write Distance: 11.81"
  • Minimum Operating Frequency: 902 MHz

Memory

  • Flash Memory: 128 MB
  • Standard Memory: 64 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • Secure Digital (SD) Card
    • MultiMediaCard (MMC)

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Display Color: Color

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale PXA270

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Number of Keys: 53

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Mobile 6.1
Part # Description Availability Price Order
MC9090-USB-STARTER Symbol MC9090 USB Starter Kit. Includes everything you need to run your MC9090: charging/communications cradle, USB cable, US power supply and AC line cord. Ships Free Today $225.10
MC9090-SERIAL-STARTER Symbol MC9090 Serial Starter Kit. Includes everything you need to run your MC9090: charging/communications cradle, serial cable, US power supply and AC line cord. Ships Free Today Call for Details
CRD9000-110SES Motorola MC90X0 Wireless Terminal Accessories, Single Slot Cradle Kit (US). Includes Cradle, Power supply, and US AC Line Cord. Does not include interface cable. Ships Free Today $204.17
Retail $308
Save 33%

The Motorola MC9090-GU0HJEQR7US is also known as SYM-MC9090GU0HJEQR7U or MC9090GU0HJEQR7US .
