Photo of Motorola MC9190-G30SWFYA6WR
Watch Product Video
View larger image Motorola logo

Motorola MC 9190 G

Wi-Fi (802.11a/b/g), 2D Imager, Windows CE 6.0, 256MB RAM/1GB ROM, 43 key keypad, Bluetooth. Interface and power cables sold separately.

See Price in Cart

Free Shipping

Ships Today

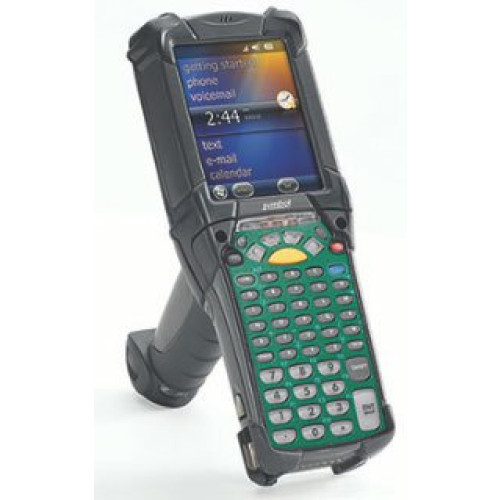

Motorola MC 9190 G Hand Held Computer

The Motorola MC 9190 G mobile computer is more rugged, more powerful, has a higher resolution display, better scanning performance and more scanning options than its predecessors. The next evolution in the highly successful MC9000 Series gives your workers the ability to process information and take action quickly and accurately, even in the harshest of environments. The MC 9190 G offers the very latest in scanning technology, so no matter what type of bar codes you need to scan or their condition, you can count on accurate first-time split-second scanning. Whether you are currently using 1D, 2D bar codes or direct part marking (DPM), the MC 9190 G's revolutionary 2D imager engines deliver high performance and easy omnidirectional scanning. The Motorola MC 9190 G takes rugged design to a new level. Just like its predecessor, the MC 9190 G passes the same industry-leading toughness tests, operating reliably after exposure to heat, cold, dust, rain, a spilled cup of coffee, and 2,000 consecutive tumbles in our rotating tumble drum.

Full specifications (PDF)

Manufacturer part number: MC9190-G30SWFYA6WR

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete
  • Barcode Symbology Supported: 2D

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC9000
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9190-G
  • Product Name: MC9190-G Handheld Terminal

Physical Characteristics

  • Height: 9.1"
  • Width: 3.6"
  • Depth: 7.6"
  • Weight (Approximate): 1.56 lb

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC9190-G Handheld Terminal
    • Li-Ion Battery
    • MC9190-G Handheld Terminal
    • Li-Ion Battery
  • Certifications & Standards:
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1/IEC60950-1
    • WLAN and Bluetooth:
    • FCC Part 15.247, 15.407
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65
    • Supplement C
    • EMI/RFI:
    • FCC Part 15
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
    • LED Safety:
    • IEC/EN60825-1 and IEC/EN62471

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • LEAP
    • EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)
    • WPA2/AES
    • CCX v4
    • FIPS 140-2
    • IPv6
    • WPA2 Enterprise
    • 802.1x
    • EAP-TLS
    • TTLS(CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
    • PEAP (TLS, MSCHAPv2, EAP-GTC)

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • MultiMediaCard (MMC)
    • Secure Digital (SD) Card

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Keyboard/Keypad

  • Number of Keys: 43

Display & Graphics

  • Screen Size: 3.7"

Warranty

  • Limited Warranty: 12 Month

Software

  • Operating System: Windows CE 6.0
