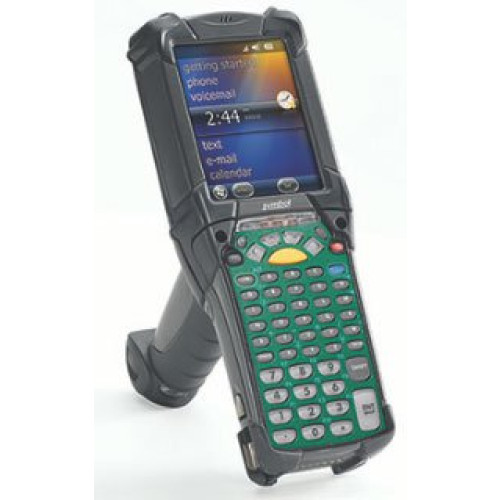

Photo of Motorola MC9190-G30SWJYA6WR
Watch Product Video
View larger image Motorola logo

Motorola MC9190 G

Wi-Fi (802.11a/b/g), 2D Imager, Gun Grip, Windows CE 6.0, 256MB RAM/1GB ROM, 53-5250 keypad, Bluetooth. Interface cables and charging cradle sold separately.

Hand Held Computer
This part is replaced by MC92N0-G30SYJYA6WR.
Ships in 24-48 hours


Motorola MC 9190 G Hand Held Computer

When you need to scan bar codes and collect data in the harshest of environments, the Motorola MC 9190 G is ready for the job. Whether your workers are managing inventory in industrial warehouses, searching for materials in subzero temperatures out in the yard or repairing equipment on a military base in a hot sandy desert, the MC 9190 G helps get the job done right and fast. You can count on dependable scanning of virtually any bar code, even if the label has been damaged. Scanning is easier than ever, with point and shoot simplicity for bar codes that are inches or meters away, on the top shelves in the warehouse or deep inside a truck. The new high resolution backlit display is easy to view in any lighting - from the dim corners of a warehouse to bright sunlight. With more processing power and memory, you can give your workers the same fast and dependable application performance they expect on their desktop. And since the MC 9190 G is compatible with all existing MC9000 Series accessories, you can cost-effectively upgrade to the latest in mobile computing technologies.

Full specifications (PDF)

Manufacturer part number: MC9190-G30SWJYA6WR

Technical Information

  • Scanner Range: Standard Range
  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
  • Barcode Symbology Supported:
    • 1D
    • 2D

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC9000
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9190-G
  • Product Name: MC9190-G Handheld Terminal

Physical Characteristics

  • Height: 9.1"
  • Width: 3.6"
  • Depth: 7.6"


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • IP64
    • WiFi Certified
    • MIL-STD 810G
    • Electrical Safety:
    • Certified to UL / cUL 60950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1
    • IEC60950-1
    • WLAN and Bluetooth:
    • FCC Part 15.247, 15.407
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • EMI/RFI:
    • FCC Part 15
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
    • LED Safety:
    • IEC/EN60825-1
    • IEC/EN62471

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • LEAP
    • WPA2/AES
    • 802.1x
    • EAP-TLS
    • CCX v4
    • FIPS 140-2
    • IPv6
    • WPA2 Enterprise


  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • MultiMediaCard (MMC)
    • Secure Digital (SD) Card

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Display & Graphics

  • Screen Mode: VGA
  • Screen Size: 3.7"
  • Display Color: Color

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)


  • Operating System: Windows CE 6.0

Touchscreen Information

  • Touchscreen: Yes


  • Limited Warranty: 1 Year


  • Number of Keys: 53
