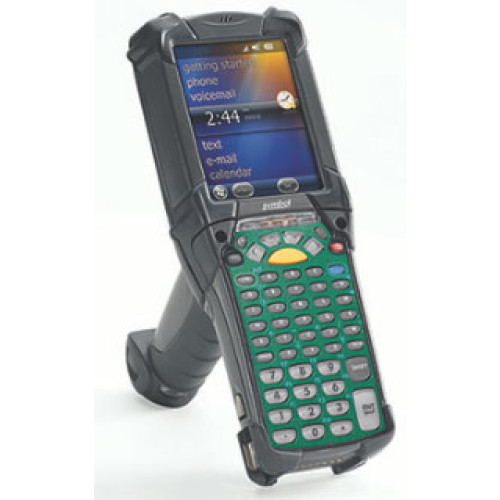

Photo of Motorola MC9190-GJ0SWAYA6WR
Watch Product Video
View larger image Motorola logo

Motorola MC9190 G

Wi-Fi (802.11a/b/g), Long Range 1D Scanner, Windows CE 6.0, 256MB RAM/1GB ROM, 28 key keypad, Bluetooth, VGA Color Screen. Interface cables and charging cradle sold separately.

Hand Held Computer
This part is replaced by MC92N0-GJ0SYAYA6WR.
Ships in 24-48 hours


Motorola MC 9190 G Hand Held Computer

When you need to scan bar codes and collect data in the harshest of environments, the Motorola MC 9190 G is ready for the job. Whether your workers are managing inventory in industrial warehouses, searching for materials in subzero temperatures out in the yard or repairing equipment on a military base in a hot sandy desert, the MC 9190 G helps get the job done right and fast. You can count on dependable scanning of virtually any bar code, even if the label has been damaged. Scanning is easier than ever, with point and shoot simplicity for bar codes that are inches or meters away, on the top shelves in the warehouse or deep inside a truck. The new high resolution backlit display is easy to view in any lighting - from the dim corners of a warehouse to bright sunlight. With more processing power and memory, you can give your workers the same fast and dependable application performance they expect on their desktop. And since the MC 9190 G is compatible with all existing MC9000 Series accessories, you can cost-effectively upgrade to the latest in mobile computing technologies.

Full specifications (PDF)

Manufacturer part number: MC9190-GJ0SWAYA6WR

Technical Information

  • Scanner Range: Long Range
  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete
  • Barcode Symbology Supported: 1D

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC9000
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9190-G
  • Product Name: MC9190-G Handheld Terminal

Physical Characteristics

  • Height: 9.1"
  • Width: 3.6"
  • Depth: 7.6"
  • Weight (Approximate): 1.69 lb

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2 Enterprise
    • 802.1x
    • EAP-TLS
    • LEAP
    • WPA2/AES
    • CCX v4
    • FIPS 140-2
    • IPv6


  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • MultiMediaCard (MMC)
    • Secure Digital (SD) Card

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.7"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Touchscreen Information

  • Touchscreen: Yes


  • Operating System: Windows CE 6.0
