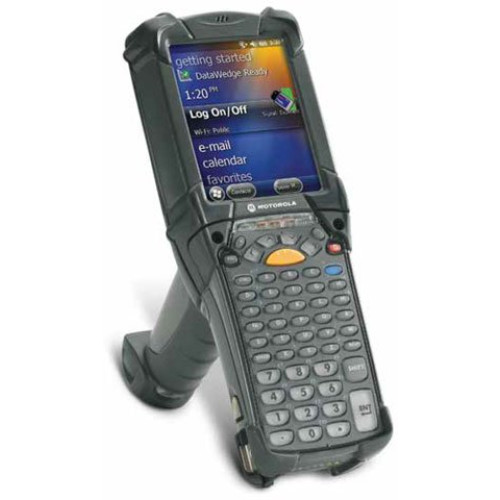

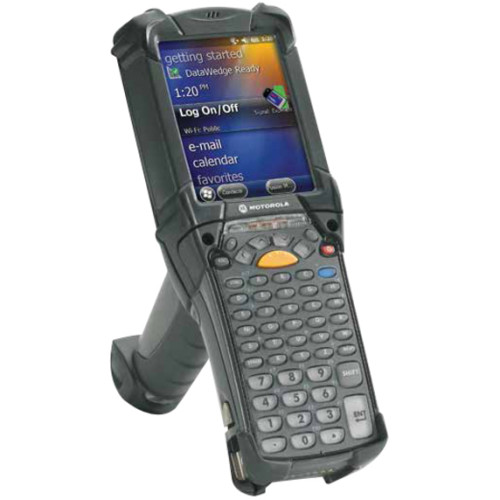

MC92N0-GA0SXERA5WR - Motorola MC 9200 Hand Held Computer

The MC9200 is the next generation in the industry-leading rugged MC9000 Series, now upgraded to support your next generation mobile applications. The rugged mobile computer that evolves to meet changing business needs brings you the same signature rugged design, best-in-class barcode scanning and dependable operation, now with the power to run applications with highly-intuitive interfaces that will further simplify processes and increase worker productivity in your toughest environments.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MC92N0-GA0SXERA5WR MC9200, Wi-Fi (802.11a/b/g/n), Gun Grip, 1D Standard Laser (SE965), VGA Color Screen, 512MB RAM/2GB Flash, 53 key Keypad, Windows Embedded 6.5, Bluetooth, Interface cables and charging cradle sold separately. Ships Free Today $2,306.15
Information:   |  Specifications  |  Motorola's MC 9200 page  |
Accessories:   |  Accessories/Options  |  Motorola MC 9200 service contract  |

MC92N0-GA0SXERA5WR Details

Technical Information

  • Scanner Range: Standard Range
  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
  • Barcode Symbology Supported: 1D

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC9000
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9200
  • Product Name: MC9200 Mobile Computer

Physical Characteristics

  • Height: 7.6"
  • Width: 3.6"
  • Length: 9.1"
  • Weight (Approximate): 1.69 lb

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC9200 Mobile Computer
    • Battery
    • MC9200 Mobile Computer
    • Battery
  • Certifications & Standards:
    • IPv6
    • FIPS 140-2
    • CCXv4
    • IP64
    • MIL-STD 810G
    • Electrical Safety:
    • UL 60950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1/IE C60950-1
    • WLAN and Bluetooth:
    • FCC Part 15.247, 15.407
    • RSS-210
    • EN 300 328
    • EN 301 893
    • RF Exposure:
    • FCC Part 2, FCC OET Bulletin 65 Supplement C
    • RSS-102
    • EN62311
    • EN50371
    • EMI/RFI:
    • FCC Part 15
    • RSS-210
    • ICES 003 Class B
    • EN 301 489-1
    • EN 301 489-17
    • EN55022 Class B
    • EN55024
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IE C60825-1/EN60825-1
    • LED Safety:
    • IEC/EN60825-1 and IEC/EN62471

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g/n
  • Wireless Security:
    • WPA2 Enterprise
    • 802.1x
    • EAP-TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAPv2)
    • TTLS PAP
    • TTLS MD5
    • PEAP TLS
    • PEAP (MSCHAPv2)
    • PEAP EAP-GTC
    • LEAP
    • EAP-FAST TLS
    • EAP-FAST MS-CHAPv2
    • EAP-FAST EAP-GTC
    • WPA2/AES

Memory

  • Flash Memory: 2 GB
  • Standard Memory: 512 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital High Capacity (SDHC)

Processor & Chipset

  • Processor Manufacturer: Texas Instruments
  • Processor Speed: 1 GHz
  • Processor Type: OMAP 4

Display & Graphics

  • Screen Mode: VGA
  • Screen Size: 3.7"
  • Display Color: Color

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Windows Embedded Handheld 6.5.3

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Keyboard/Keypad

  • Number of Keys: 53
Part # Description Availability Price Order
CRD9000-110SES Motorola MC90X0 Wireless Terminal Accessories, Single Slot Cradle Kit (US). Includes Cradle, Power supply, and US AC Line Cord. Does not include interface cable. Ships Free Today $206.32
Retail $308
Save 33%
25-64396-01R Symbol USB Cable (A to B) for the cradle to the host system Ships Free Today $18.64
TSP-US-MC-3 BCI Service Contracts, True Support contract 3-year - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $60 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$60.00
SSE-MC92XX-30 Motorola Service Contract - 3 year, Zebra OneCare Essential. Includes Comprehensive coverage. Does not include coverage for cradles.
Ships Free in 3-5 Days
$402.60

The Motorola MC92N0-GA0SXERA5WR is also known as MOT-MC92NOGA0SXERA5W or MC92N0GA0SXERA5WR .
